| Categories | Split Core Current Sensor |
|---|---|
| Place of Origin: | China (Mainland) |
| Brand Name: | chieful |
| Model Number: | CS10000KC |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Packaging Details: | carton |
| MOQ: | 1 Piece/Pieces |
| Price: | Negotiable |
| Usage: | Magnetic Sensor |
| Theory: | Hall Sensor |
| Output: | Analog Sensor |
| color: | black |

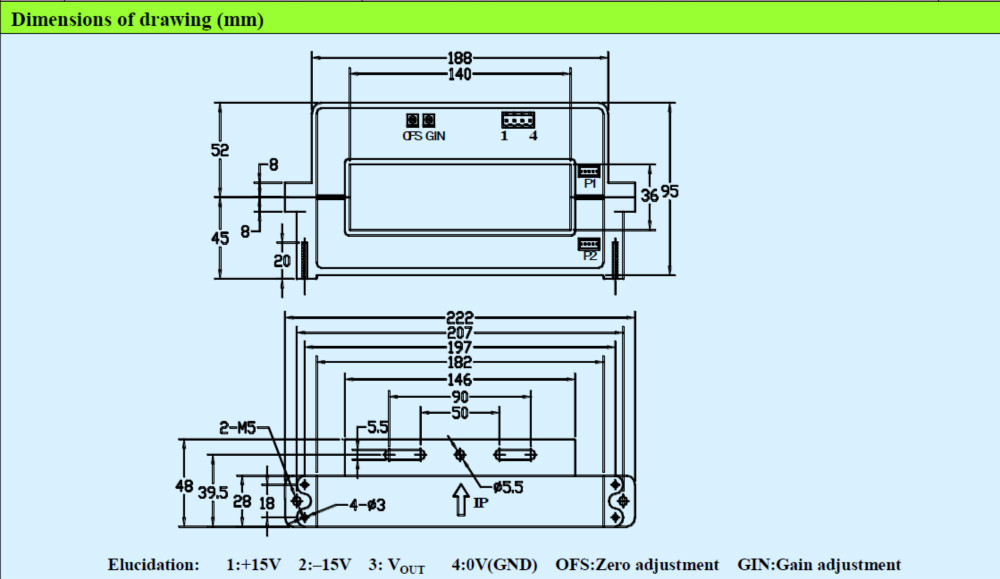

| window size: | 140mm x 36mm |
| Port: | nanjing |
Hall Effect Split Core Current Sensor , Open Loop Current Transducer
dismountable hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.
Hall current sensors are widely applicable for acquisition and feeback control of current signals in the current monitoring,inverter,solar power management,current cabinet,DC motor drive and UPS servo control systems.
| Electrical characteristics | |||||||
| Type | CS1000KC | CS3000KC | CS5000KC | CS8000KC | CS10000KC | ||
| IPN | Primary nominal input current | 1000 | 3000 | 5000 | 8000 | 10000 | A |
| IP | Measuring range of primary current | 0~±2000 | 0~±6000 | 0~±10000 | 0~±12000 | 0~±12000 | A |
| VOUT | Nominal output voltage | 4±1% | V | ||||
| VC | Supply voltage | ±15(±5%) | V | ||||
| IC | Current consumption | VC=±15V <20 | mA | ||||
| VD | Insulation voltage | AC/50Hz/1min 5 | kV | ||||
| εL | Linearity | <1 | %FS | ||||
| VO | Offset voltage | TA=25℃ <±25 | mV | ||||
| VOM | Residual voltage | IPN→0 <±20 | mV | ||||
| VOT | Thermal drift of V0 | IP=0 TA=–25~+85℃ <±1 | mV/℃ | ||||
| TR | Response time | ≤7 | μs | ||||
| f | Frequency bandwidth(-3dB) | DC~20 | kHz | ||||
| TA | Ambient operating temperature | –25~+85 | ℃ | ||||
| TS | Ambient storage temperature | –40~+100 | ℃ | ||||
| RL | Load resistance | ≥10 | KΩ | ||||
| Standard | Q/320115QHKJ01-2010 | ||||||
CHIEFUL offers a wide range of current and voltage transducers in the portfolio. And our transducer can be designed according to the specific demands.The company explore foreign markets actively, our products have been sold to the United Kingdom, Germany, Denmark, France, Italy, Sweden,Turkey, Israel, South Korea, India etc.
Q1: Are you a factory?
A:We are a factory setted up more than 17 years and export more
than 10years.
Q2: When is the delivery date?
A: 7-10 working days in general.
Q3: Could you send me a quotation?
A: Sure.
Q4: How about the after service?
A: Five years warranty.
Q5: What about the shipping package?
A: Anti-static package and carton.
|
