High Performance Split Core Current Sensor / Open Loop Current Transducer

Categories Split Core Current Sensor
Place of Origin: Jiangsu, China (Mainland)
Brand Name: chieful
Model Number: CS200KF1
MOQ: 1-499 Pieces
Price: Negotiable
Usage: Magnetic Sensor
Theory: Hall Sensor
Output: Analog Sensor
color: bule
weight: 235g
window size: 13*41mm
Application: Automation
Type: open loop
Product name: split core current transducer CS200KF1
Certificate: CE, RoHS,ISO9001
Capacity: 10000pcs/month
Warranty: 5years
Selling Units: Single item
Single package size : 23X18X7 cm
Single gross weight: 0.235 kg
Package Type: split core sensor packing in antistatic foam.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Performance Split Core Current Sensor / Open Loop Current Transducer

High Performance Split Core Current Sensor / Open Loop Current Transducer
Product Description

split core current transducer CS200KF1

hall current sensor open loop hall effect is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.Hall current sensors are widely applicable for acquisition and feeback control of current signals in the current monitoring,inverter,solar power management,current cabinet,DC motor drive and UPS servo control systems.


Electrical characteristics
TypeCS200KFICS400KFICS600KFICS800KFICS1000KFI
IPNPrimary nominal input current2004006008001000A
IPMeasuring range of primary current0~±4000~±8000~±12000~±16000~±2000A
VOUTNominal output voltage4±1%V
VCSupply voltage±12~±15(±5%)V
ICCurrent consumptionVC=±15V <25mA
VDInsulation voltageAC/50Hz/1min 2.5kV
εLLinearity<1%FS
VOOffset voltageTA=25℃ <±25mV
VOMResidual voltageIPN→0 <±25mV
VOTThermal drift of V0IP=0 TA=–25~+85℃ <±1mV/℃
TRResponse time≤7μs
fFrequency bandwidth(-3dB)DC~20kHz
TAAmbient operating temperature–25~+85
TSAmbient storage temperature–40~+100
RLLoad resistance≥10
StandardQ/3201CHGL02-2007

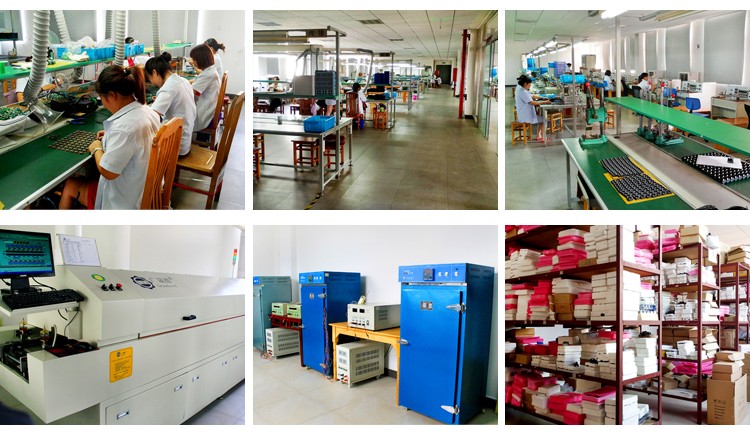

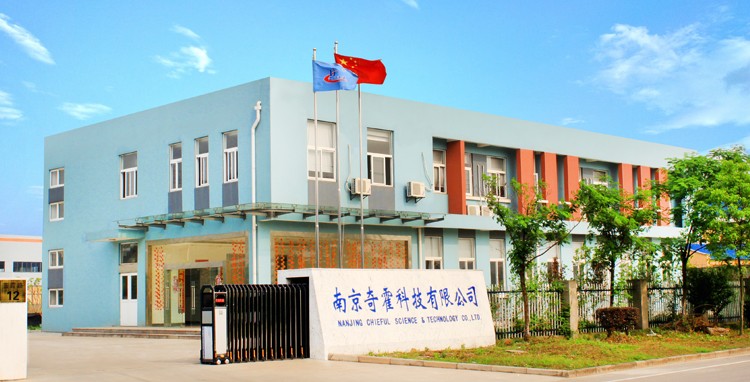

About us

CHIEFUL offers a wide range of current and voltage transducers in the portfolio. And our transducer can be designed according to the specific demands.The company explore foreign markets actively, our products have been sold to the United Kingdom, Germany, Denmark, France, Italy, Sweden,Turkey, Israel, South Korea, India etc.

Exhibition

Logistics packaging


FAQ

Q1: Are you a factory?
A:We are a factory setted up more than 17 years and export more than 10years.

Q2: When is the delivery date?
A: 7-10 working days in general.

Q3: Could you send me a quotation?
A: Sure.

Q4: How about the after service?
A: Five years warranty.

Q5: What about the shipping package?
A: Anti-static package and carton.
