Open Loop Type Split Core Hall Current Sensor For Automation Equipment

Name: Open Loop Type Split Core Hall Current Sensor For Automation Equipment
Brand: chieful
Price: 1 USD

Open Loop Type Split Core Hall Current Sensor For Automation Equipment

Categories	Split Core Current Sensor
Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	chieful
Model Number:	CS500EK1
MOQ:	1-499 Pieces
Price:	Negotiable
Usage:	Magnetic Sensor
Theory:	Hall Sensor
Output:	Analog Sensor
color:	black
weight:	66 g
diameter:	21 mm
Product name:	split core hall current sensor CS500EK1
Certificate:	CE ,RoHS,ISO9001
Capacity:	10000pcs/month
Warranty:	5 years
Application:	welding machine,automation equipment
Type:	open loop
Selling Units:	Single item
Single package size :	23X18X7 cm
Single gross weight:	0.066 kg
Package Type:	packing in bubble

Contact Now

Add to Cart

Company Info.

Nanjing Chieful Science & Technology Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Open Loop Type Split Core Hall Current Sensor For Automation Equipment

Open Loop Type Split Core Hall Current Sensor For Automation Equipment

Product Description

split core hall current sensor CS500EK1

hall current sensor open loop hall effect is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical characteristics
	Type	CS050EKI	CS100EKI	CS200EKI	CS800EKI	CS400EKI	CS500EKI
I_PN	Primary nominal input current	50	100	200	300	400	500	A
I_P	Measuring range of primary current	0~±100	0~±200	0~±400	0~±600	0~±800	0~±1000	A
V_OUT	Nominal output voltage	4±1%						V
V_C	Supply voltage	±15(±5%)						V
I_C	Current consumption	V_C=±15V <20						mA
V_D	Insulation voltage	AC/50Hz/1min 5						kV
ε_L	Linearity	<1						%FS
V_O	Offset voltage	T_A=25℃ <±25						mV
V_OM	Residual voltage	I_PN→0 <±20						mV
V_OT	Thermal drift of V₀	I_P=0 T_A=–25~+85℃ <±1						mV/℃
T_R	Response time	≤7						μs
f	Frequency bandwidth(-3dB)	DC~20						kHz
T_A	Ambient operating temperature	–25~+85						℃
T_S	Ambient storage temperature	–40~+100						℃
R_L	Load resistance	≥10						KΩ
	Standard	Q/3201CHGL02-2007

Electrical characteristics
	Type	CS050EKI	CS100EKI	CS200EKI	CS800EKI	CS400EKI	CS500EKI
I_PN	Primary nominal input current	50	100	200	300	400	500	A
I_P	Measuring range of primary current	0~±100	0~±200	0~±400	0~±600	0~±800	0~±1000	A
V_OUT	Nominal output voltage	4±1%						V
V_C	Supply voltage	±15(±5%)						V
I_C	Current consumption	V_C=±15V <20						mA
V_D	Insulation voltage	AC/50Hz/1min 5						kV
ε_L	Linearity	<1						%FS
V_O	Offset voltage	T_A=25℃ <±25						mV
V_OM	Residual voltage	I_PN→0 <±20						mV
V_OT	Thermal drift of V₀	I_P=0 T_A=–25~+85℃ <±1						mV/℃
T_R	Response time	≤7						μs
f	Frequency bandwidth(-3dB)	DC~20						kHz
T_A	Ambient operating temperature	–25~+85						℃
T_S	Ambient storage temperature	–40~+100						℃
R_L	Load resistance	≥10						KΩ
	Standard	Q/3201CHGL02-2007

Notes:

1. Connect the terminals of power source, output respectively and correctly, never make wrong connection.

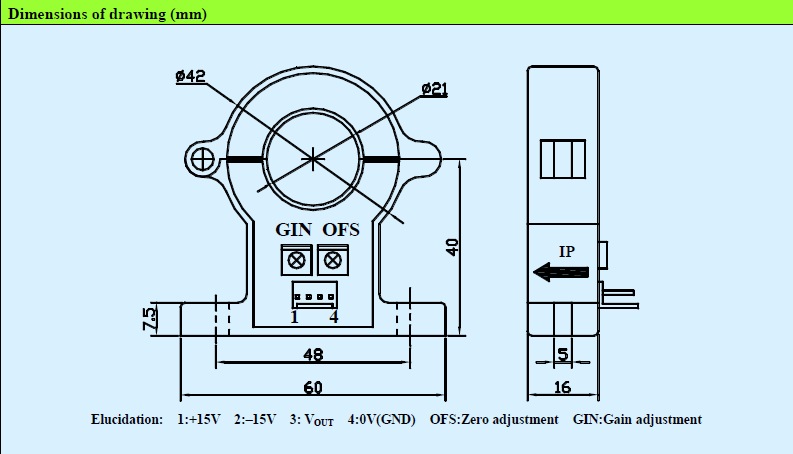

2. Two potentiometers can be adjusted, only if necessary, by turning slowly to the required accuracy with a small screwdriver.

3. The best accuracy can be achieved when the window is fully filled with bus-bar (current carrying conductor).

4. The in-phase output can be obtained when the direction of current of current carrying conductor is the same as the direction of arrow marked on the transducer.

About us

CHIEFUL offers a wide range of current and voltage transducers in the portfolio. And our transducer can be designed according to the specific demands.The company explore foreign markets actively, our products have been sold to the United Kingdom, Germany, Denmark, France, Italy, Sweden,Turkey, Israel, South Korea, India etc.

FAQ

Q1: Are you a factory?
A:We are a factory setted up more than 17 years and export more than 10years.
Q2: When is the delivery date?
A: 7-10 working days in general.
Q3: Could you send me a quotation?
A: Sure.
Q4: How about the after service?
A: Five years warranty.
Q5: What about the shipping package?
A: Anti-static package and carton.
