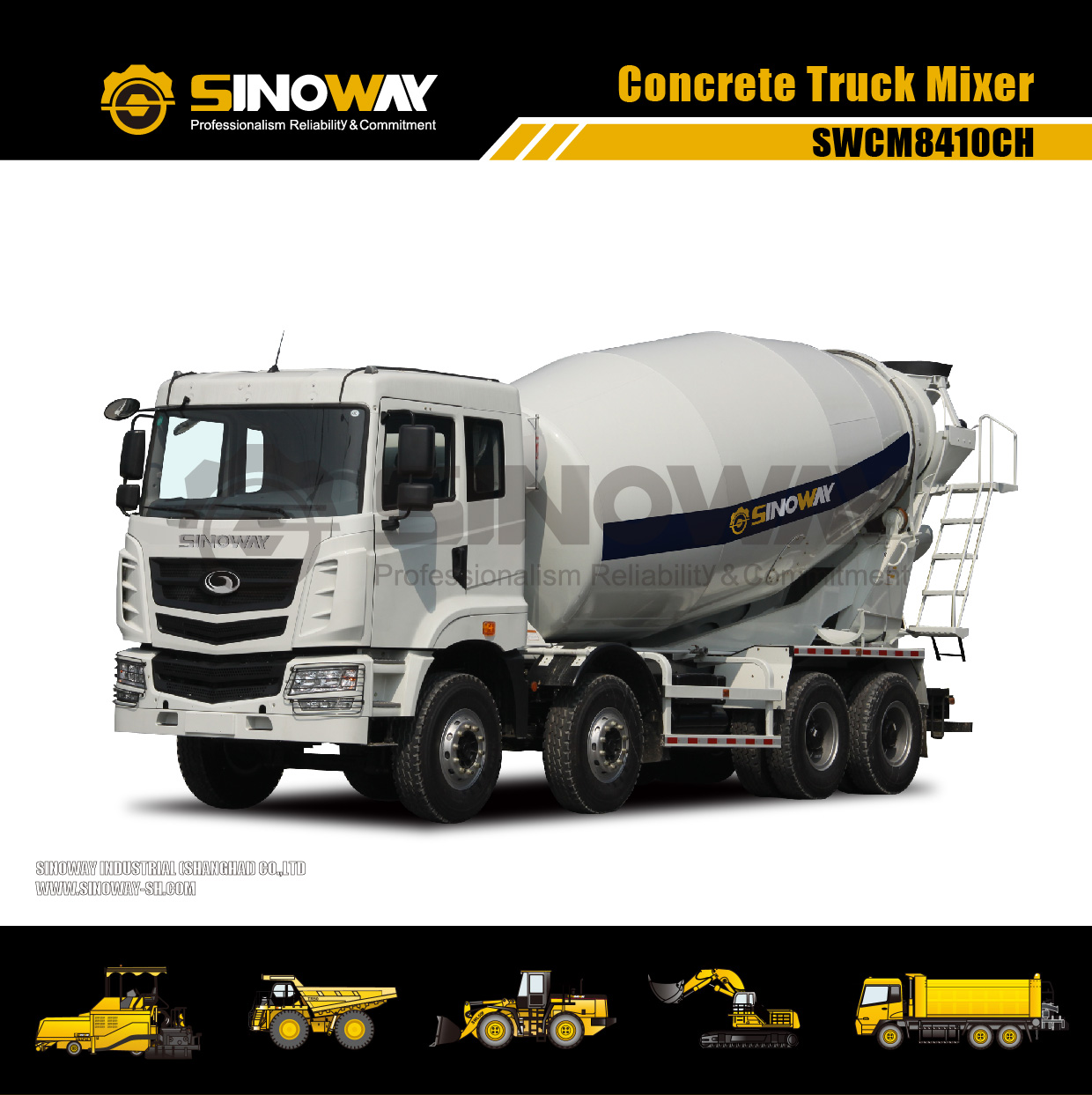

ISO9001 Concrete Mixer Machine 8×4 10 Cubic Meters , Concrete Mixer Truck

Categories Concrete Mixer Machine
Brand Name: SINOWAY
Model Number: SWCM8410CH
Certification: ISO9001
Place of Origin: China
MOQ: 1 unit
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 units per month
Delivery Time: 30 days
Packaging Details: Nude
Engine: CUMMINS
Rated power: 275KW
Effective capacity: 10m³
Max. torque: 1425N.m/1400rpm
Kerb weight: 14500kg
Pay-loading capacity: 16500kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ISO9001 Concrete Mixer Machine 8×4 10 Cubic Meters , Concrete Mixer Truck

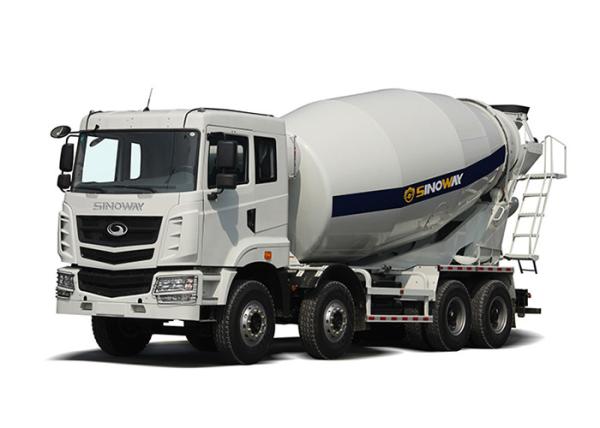

Concrete Mixer Machine 8×4 10 Cubic Meters Concrete Mixer Truck With Cummins Engine


Engine
MakeCummins
TypeSix-cylinder, water-cooled, turbocharged, mechanical injection
Max. power275kw
Rated speed2100rpm
Max. torque1425N.m/1400rpm
Main Technical Specification
Kerb weight14500kg
Pay-loading capacity16500kg
G.V.W.31000kg
Axle loading capacity (F/R)2x7500/2x13000kg
Max. travelling speed85km/h
Min. turning radius10m
Gradeability30%
Approach angle30°
Departure angle24°
Ground clearance255mm
Fuel tank capacity380L (Galvanized steel)
Dimensions
Overall size (L x W x H)9800 x 2500 x 3830mm
Wheelbase1850 + 3000 + 1350mm
Tread (F/R)2065/2065/1860/1860mm
Transmission System
German ZF, mechanical type with synchronizer, 9 forward & 1 reverse
Ratio
Forward15.16, 11.26, 7.90, 5.67, 4.07, 2.76, 1.94, 1.39, 1,00
Reverse12.66
Mixer Drum
Geometric volume of mixing drum18.6³
Effective capacity10m³
Rotation speed0-15rpm
Feeding speed≥ 2.7³/min.
Discharging speed≥ 1.2³/min.
Residue rate≤ 1.0%
Loading rate54.0%
Inclination of mixing drum11.0°
Materials for mixing drum16MnCu
Model/brand/origin of pumpA4VTG90/Rexroth/Germany
Model/brand/origin of reducerP4300/ZF/Germany
Axle and Tyre
Front axleStub axle with double T-cross section
Rear axleDouble reduction with hub reduction and final drive
Ratio5.73
Tyre size12R22.5
Clutch And Brake
Single-plate dry coil-spring clutch, hydraulically operated with air assistance
Service brakeDual circuit compressed air brake
Parking brakeSpring actuator at rear wheels
Auxiliary brakeExhaust brake
Suspension
Front suspensionTapered leaf spring 09 semi-elliptic leaf spring
Rear suspensionTapered leaf spring 12 semi-elliptic leaf spring
Steering System
Driving positionLeft hand drive
TypeRe-circulation ball with integral power assisted by oil
Cab
SINOWAY F14 cab with A/C
