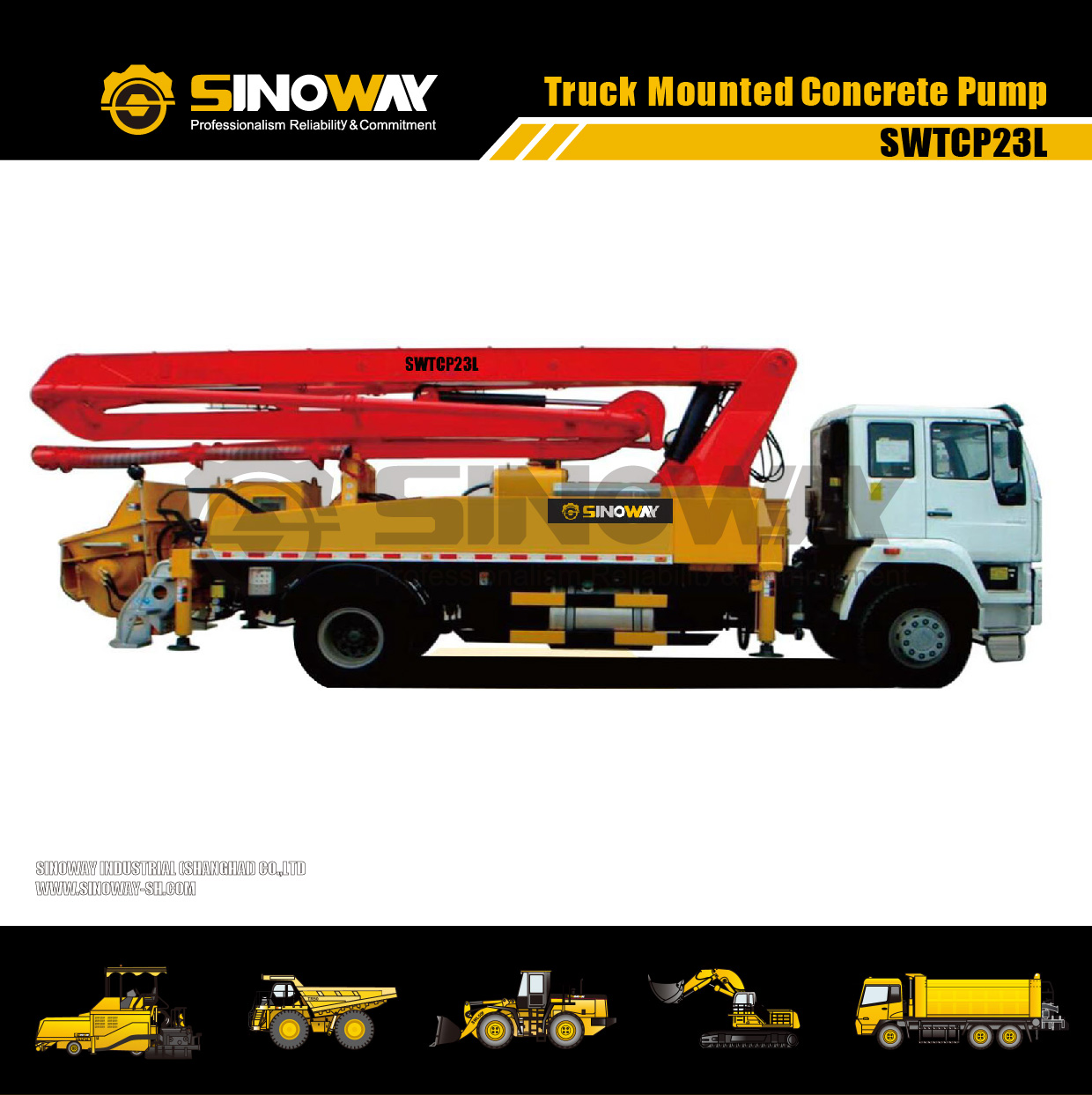

23m Small Truck Mounted Concrete Boom Pump 110/65m³/h Output in Theory

Categories Concrete Mixer Machine
Brand Name: SINOWAY
Model Number: SWTCP23L
Certification: ISO9001
Place of Origin: China
MOQ: 1 unit
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 units per month
Delivery Time: 30 days
Packaging Details: Nude
Output in theory: 110/65m³/h
Hopper capacity: 700L
Feeding height: 1500mm
Distributing valve: S pipe valve
Concrete slump: 120-230mm
Hydraulic system: Open loop
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

23m Small Truck Mounted Concrete Boom Pump 110/65m³/h Output in Theory

HOT Sale 23m Small Truck Mounted Concrete Boom Pump Concrete Pump


Pumping System
Output in theory (L/H)110/65m³/h
Concrete pressure (L/H)7/12Mpa
Hopper capacity700L
Feeding height1500mm
Distributing valveS pipe valve
Concrete slump120-230mm
Hydraulic systemOpen loop
Chassis And Whole Vehicle
Chassis modelSINOWAY
Max. travelling speed85km/h
Min. turning radius8800mm
Brake distance7m
Approach angle20.5°
Departure angle10.5°
Front tread2022mm
Rear tread1850mm
Rated power228KW
Rated speed1900rpm
Tyre size12.00R20
Grade ability37%
Full-load general weight18630Kg
Wheelbase5000mm
Dimensions
Overall length9870mm
Overall width2500mm
Overall height3515mm
Service Capacities
Fuel tank300L
Water tank285L
Hydraulic tank400L
Boom
Max. distributing radius19.1m
Max. distributing height23.1m
Max. distributing depth12.2m
Unfolding height6750mm
Front outrigger spread4880mm
Rear outrigger spread2280mm
Delivery pipe diameter125mm
Tail hose length3m
Rotary angle of boom365°
Rotary angle of each boom section90/180/256°
Boom control typeRadio remote


Quality 23m Small Truck Mounted Concrete Boom Pump 110/65m³/h Output in Theory for sale
