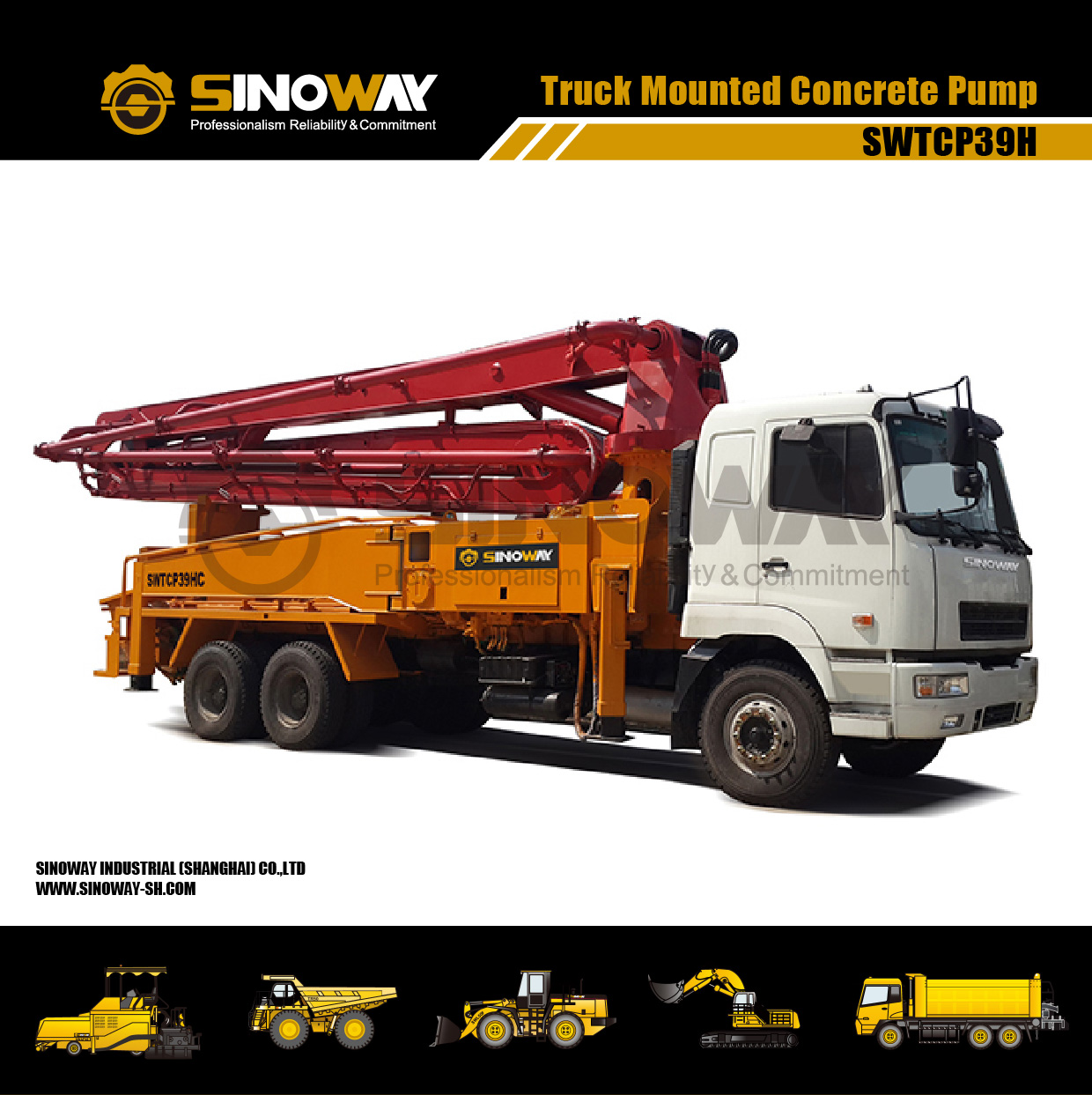

Heavy Duty Cement Mixer 39m Boom Concrete Pump Truck 9.84L Displacement

Categories Concrete Mixer Machine
Brand Name: SINOWAY
Model Number: SWTCP39H
Certification: ISO9001
Place of Origin: China
MOQ: 1 unit
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 units per month
Delivery Time: 30 days
Packaging Details: Nude
Engine model: SW6D18.385
Rated power: 283kw/1900rpm
Max. torque: 1750N.m/1250rpm
Displacement: 9.84L
Output in theory: 150m³/h
Hopper capacity: 600L
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Heavy Duty Cement Mixer 39m Boom Concrete Pump Truck 9.84L Displacement

New Machine 39m Boom Concrete Pump Truck For Sale Made in China Good Quality


Pumping System
Output in theory150m³/h
Max. pumping pressure9.2MPa
Hopper capacity600L
Feeding height1350mm
Distributing valveS pipe valve
Rated work pressure35Mpa
Pumping frequency22min-1
Chassis And Whole Vehicle
Max. travelling speed96km/h
Drive model6×4
Engine modelSW6D18.385
Rated power283kw
Rated speed1900rpm
Max. torque1750N.m/1250rpm
Displacement9.84L
Curb weight29000kg
Wheel base
Axle1, Axle25220mm
Axle2, Axle31310mm
Boom
Max. distributing radius34.57m
Max. distributing height38.57m
Max. distributing depth26.8m
Height of boom when stretched9065mm
Distance between front landing legs7390mm
Distance between rear landing legs7763mm
Distance between front and rear landing legs7976mm
Delivery pipe diameter125mm
Tail hose length4000mm
Rotary angle of boom365°
Boom section4
Rotary angle of each boom section90/180/180/270°
Boom length9150/8360/8480/8580mm
Main Components
Arm support pumpGermany REXROTH
Oil pumpGermany REXROTH
Balance valveGermany HAWE
Solenoid valveUSA EATON
Hydraulic valveUSA EATON
Sealing elementUSA PARKER
ConnectorGermany EMB
HoseItaly MANULI
Proportional multiway valveGermany HAWE
Wireless romote-control deviceGermany HBC
Dimension
Overall length12440mm
Overall width2495mm
Overall height3930mm
Service Capacities
Fuel tank400L
Water tank600L
Hydraulic tank600L
