Heavy Duty Huge Capacity 8x4 Drive Six Seats Fire Fighting Truck Firefighter Truck

Categories Fire Fighting Truck
Brand Name: CIMC Tianda
Model Number: JDX5390GXFPM200/B
Certification: ISO9001,CCCF, TUV, SGS, SCONCAP, PC
Place of Origin: Shanghai,China
MOQ: 1 unit
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 units/year
Delivery Time: 90 days after sign contract
Packaging Details: exporting standard package or customized packing
Size: 11425×2500×3860 mm
G.V.W: 39250 kg
Wheelbase: 1700+4300+1350 mm
Drive type: 8x4
seats: 6
Max. power: 440 kw
cabin: two rows
other names: Firefighter truck, heavy duty fire truck
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

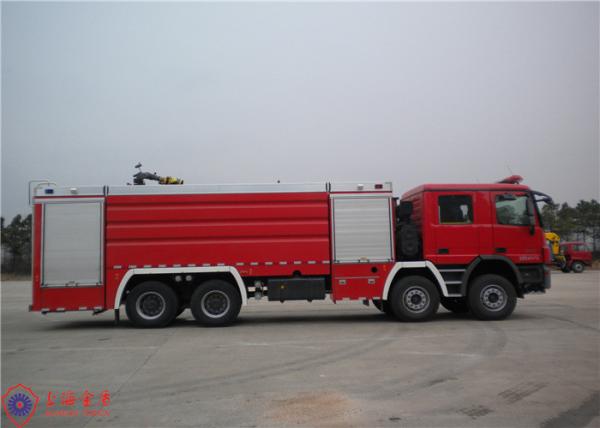

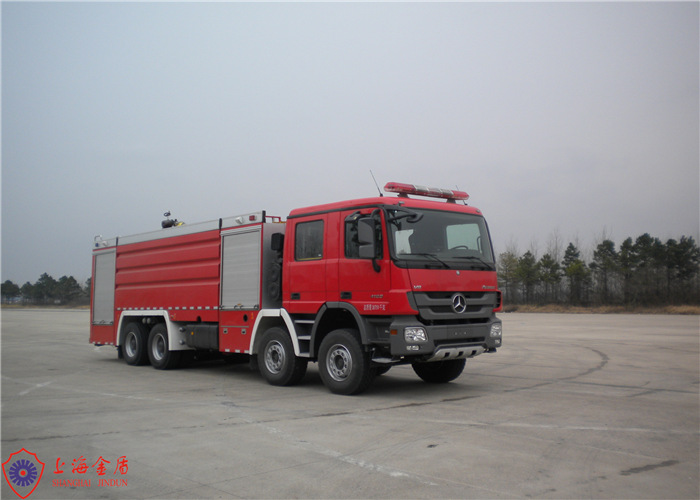

Heavy Duty Huge Capacity 8x4 Drive Six Seats Fire Fighting Truck Firefighter Truck

8X4 Drive Heavy Duty Huge Capacity Six Seats Mercedes Chassis Foam Firefighting Truck, Firefighter Truck


Fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .


1. Firefighter Vehicle

Dimension (L×W×H)11425×2500×3860mm
Gross weight39250kg
Complete vehicle shipping mass19100kg
Seat (inc. driver)6
Max. power440kw

2. Firefighter truck Chassis

ManufacturerDiamler
ModelActros4160
Drive type8x4
Cabdouble row, overturning type
Wheelbase1700+4300+1350mm
Max. speed100km/h
Min. turning diameter<27m
Approach angle29°
Departure angle11°
Engine typeV type eight-cylinder, pressure combustion, four-stroke, inter-cooling.
ModelOM502LA.IV/3
Max. power440kw
Max. torque2800N•m
Emission standardChina IV/Euro IV
ClutchMonolithic, dry
Gearbox modelManual, 16 forward gear
Tyre

4x 385/65R22.5

8x 315/80R22.5


3. Firefighter truck Cab

StructureDouble row
Seat2+4
EquipmentExcept the original equipments. There is a storage box with cover under the seat, embedded 4x9L air breathing apparatus fixed mount in the seats

4. Firefighter truck pedal plate

Location: At the bottom of roller shutter door.

Material: Steel frame covered by aluminum alloy checkered plate

Structure: adopt the gas springs plus shutter fasten, safe and

Reliable, each petal plate bearing ≥150Kg



FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.


2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.


3. Q:What's your payment method?

A: T/T and L/C are preferred.


4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.


5. Q: How is the packing?

A:All the packing comply with exporting standard.


6. Q: What's the delivery time?

A: 1) 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

2) ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

3) European brand chassis 9 months upon receipt of advance deposit.


7. Q: What's your main products?

A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general trucks. The products have been sold to more than 20 countries.


Any other questions, please do not hesitate to contact with us.
