Foton Gasoline Full Color Outdoor P4 P5 Mini Led Advertising Display Billboard Screen Truck

Foton Gasoline Full Color Outdoor P4 P5 Mini Led Advertising Display Billboard Screen Truck

Chassis: Foton (a common Chinese commercial vehicle manufacturer).

Engine: Gasoline-powered (Petrol), often a small displacement engine compliant with standards like Euro V/VI.

Display Technology (P4/P5):

P4 and P5 refer to the pixel pitch of the LED screen:

• P4: Pixel pitch is 4mm. This offers a higher resolution and is clearer for viewing distances starting at around 4 meters.
• P5: Pixel pitch is 5mm. This offers a slightly lower resolution than P4 and is suitable for viewing distances starting at around 5 meters.

Both are full-color and designed for outdoor use, meaning they are bright and waterproof (high IP rating).

Screen Configuration:

Trucks are often customizable, with options for:

• One side full-color LED screen (the other side may be a roller advertising light box).
• Two sides full-color LED screens.
• Three sides full-color LED screens (two sides and the rear).

The rear screen is often smaller and sometimes a monochrome (single-color) screen for text-only messages, though a full-color option is also available.

Screen Size: Varies by truck model, but the main side screens can be large, for example, around 2.5m*1.5m (or similar dimensions), providing a large digital billboard area.

Functionality:

• Lifting System: The main side LED screen is often equipped with a hydraulic or electric lifting system, allowing the screen to be raised up to 1-1.5 meters for better visibility over crowds or parked vehicles.

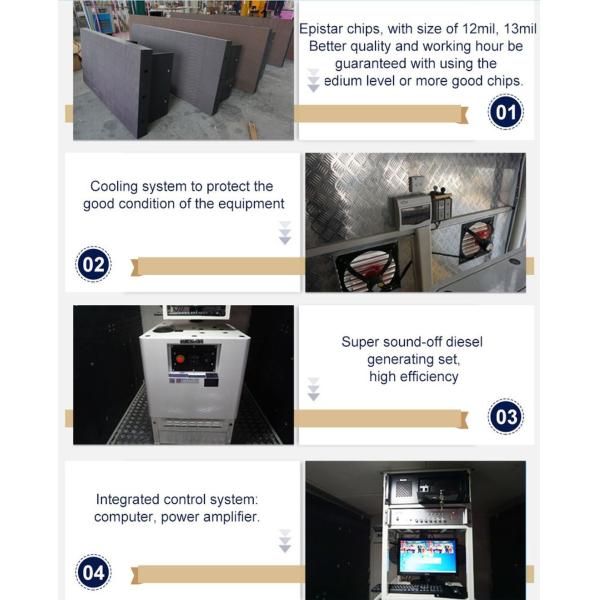

• Power: Includes an on-board silent generator set (often gasoline or diesel) to power the LED screens and all equipment independently, as well as an external mains power interface.
• Control System: Features an industrial control computer, a control system for playback, and often a video processor that supports various media formats and input sources (like U disk, mobile phone sync, etc.).
• Audio System: Typically includes an amplifier and waterproof sound columns (speakers) for audio playback alongside the video.

Optional Features:

• Mobile Stage: Many models can be configured with an expandable hydraulic stage for events, roadshows, and performances.
• Roller Light Box: For models with only one LED screen, the opposite side may feature a system for displaying static advertisements that can be cycled automatically.

Application

These mobile LED trucks are used for a variety of purposes including:

• Outdoor commercial advertising
• Product launches and promotions
• Live broadcasting and public events
• Concerts and roadshows
• Traffic and public service announcements

Foton Gasoline Full Color Outdoor P4 P5 Mini Led Advertising Display Billboard Screen Truck Technical sheet :

Foton Gasoline Full Color Outdoor P4 P5 Mini Led Advertising Display Billboard Screen Truck details :

The Foton Gasoline Full Color Outdoor P4/P5 Mini LED Advertising Display Billboard Screen Truck is a specific type of mobile advertising vehicle built on a Foton mini truck chassis, designed for outdoor promotion and events.

The exact specifications can vary between different manufacturers and models, but here are the general details based on common configurations:

Key Features & Components

• Chassis: Typically a Foton mini truck chassis (like the Foton Forland or similar small models).
• Fuel Type: Gasoline engine.
• Driving Type: Usually 4x2.
• Emission Standard: Often meets Euro V or higher emission standards.

LED Screen:

• Pixel Pitch: P4 or P5 (P-Pitch).
• P4 (4mm): Offers higher resolution and a closer optimal viewing distance (e.g., 4 to 30 meters).
• P5 (5mm): A slightly lower resolution but is also suitable for outdoor viewing distances (e.g., 5 to 30 meters) and is often more cost-effective.
• Color: Full Color (RGB).
• Brightness: High brightness (e.g., ≥5000 cd/m2) to ensure clear visibility even in direct sunlight.
• Waterproof Rating: Typically IP65 for outdoor use, ensuring protection against dust and water.
• Configuration: Can be configured with one, two, or three sides of LED screens (main side, passenger side, and rear).

Advertising Bodywork:

• Main Screen: The primary LED screen, often on one or both main sides of the box body.
• Lifting System (Optional): Many models feature a hydraulic lifting system for the main screen to raise it to a better viewing height (e.g., 1.0 to 1.8 meters).
• Other Displays: The other sides (e.g., passenger side or rear) may feature a second full-color LED screen, an advertising scrolling light box for static images, or a smaller monochrome text screen.
• Optional Stage: Some models can be equipped with a small, mechanical or hydraulic mobile stage for live performances or events.

Control and Power System:

• Power Source: Equipped with an integrated, super-silent gasoline generator set for independent operation.
• External Power: Includes a 220V external mains power interface for operation when grid power is available.
• Control System: Typically includes an industrial control computer, video processor, and control console to manage the display content, power, and lifting system.
• Audio System: Includes a broadcast-grade amplifier and waterproof sound columns/speakers for audio output.

Typical Dimensions (Example of a mini model)

• Overall Dimensions (L*W*H): Around 5200 mm*1710 mm*2450 mm (can vary).
• Main Screen Size (L*H): Can range, with some models offering a screen size of approximately 2400 mm*1440 mm.
• Wheelbase: Around 3070 mm.
• Max Speed: Approximately 100 km/h to 115 km/h.
