| Categories | Transmission Line Stringing Equipment |
|---|---|
| Brand Name: | HANYU |
| Model Number: | TY1X120III |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | USD74,500.00-79,000.00/Set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10Sets/Month |
| Delivery Time: | 15-35days |
| Packaging Details: | Container |
| Type: | TY1X120III Hydraulic Cable Tensioner |
| Bull-wheel diameter: | 1500mm |
| Pull at max speed: | 1x50kN |
| Max continuous tension: | 1x120kN |
| Max intermittent tension: | 1x130kN |
| Total weight: | 8500kg |
| Company Info. |
| Wuxi Hanyu power equipment co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

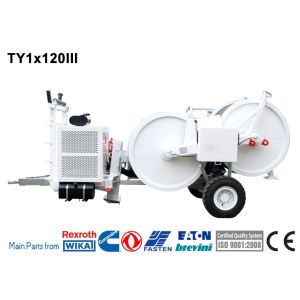

Transmission Line Stringing Equipment TY1X120III Hydraulic Cable Tensioner
| Performance | Max intermittent tension | 1x130kN |
Max continuous tension | 1x120kN | |
| Max speed | 5km/h | |
Speed at max tension | 2.5km/h | |
Max reverse pulling force | 1x90kN | |
Pull at max speed | 1x50kN | |
| Characteristics | Max conductor diameter | 40mm |
Total weight | 8500kg | |
Groove number | 12 | |
| Bull-wheel diameter | 1500mm | |
Overall dimension (length*width*height) | 5200×2300×2700mm | |
| Main configuration | Hydraulic pump | German Rexroth/Dnish Danfoss |
| Speed reducer | German Rexroth / Italy Bonfiglioli | |
Main motor | German Rexroth/French Leduc | |
Engine | Cummins | |
Main hydraulic valves | USA Sun / Italy ATOS | |
| Engine | Diesel | 77kw(103hp) |
Cooling system | water | |
Electrical system | 24V | |
| TY1X120III Hydraulic Tensioner | The machine allows for the tension stringing of triple-bundle conductor of 630mm2 and below in mountainous and hilly areas, of triple-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; | |
| Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains | ||
| Hydraulic Transmission | The machine can realize step less speed. | |
| The machine is provided with tension presetting system. | ||
| Configuration | Digital speed meters | |
| Hydraulic dynamometers | ||
Hydraulic oil cooling system | ||
Hydraulic front stabilizer | ||
Grounding connection point | ||
Hydraulic power pack to control up to 3 separated drum stands with hydraulic motor. | ||
| Control instruments for hydraulic system and diesel engine | ||
Digital meter counters | ||
| Additional Devices | 3 hydraulic conductor clamps for drum change operations (extra charge) | |
| Lighting system for the trailer | ||
Digital speed and meter counter | ||
Air brake system for the trailer(extra charge) | ||

|
