ASTM A240 348 348H Stainless Steel Plate 1250mm 1500mm Width

ASTM A240 348 348H Stainless Steel Plate 1250mm 1500mm Width

ASTM A240 348 348H Stainless Steel Plate 1250mm 1500mm Width
ASTM A240 348 348H Stainless Steel Plate 1250mm 1500mm Width
Categories Stainless Steel Plate
Brand Name: TISCO BAOSTEEL
Model Number: 348 / 348H
Certification: ISO
Place of Origin: China
MOQ: 500 kgs
Price: 3200 - 4500 USD/Ton
Payment Terms: T/T, Western Union
Supply Ability: 20Ton per week
Delivery Time: 5 - 12 days based on the quantity
Packaging Details: standard packing for export
Products: Stainless Steel Plate
Grade: 304 304L 316L 310S 321 2205 2507 904L 254SMO 630 .etc
Thickness: 1.0 - 80.0mm
Width: 1219mm 1500mm 1800mm
Surface: NO.1 2B
Brand: BAOSTEEL TISCO
Standard: ASTM EN DIN JIS GB
Loading Port: Shanghai Port
Contact Now
Company Info.
JIANGSU MITTEL STEEL INDUSTRIAL LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

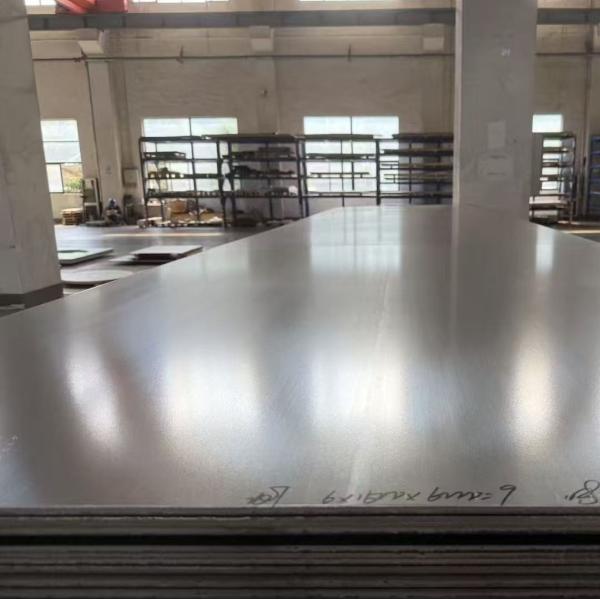

ASTM A240 348 348H Stainless Steel Plate 1250mm 1500mm Width

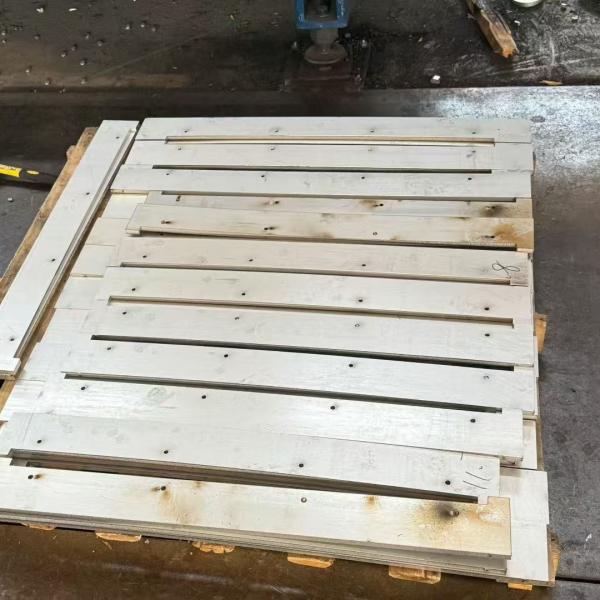

ASTM A240 348 / 348H Stainless Steel Plate 1250mm 1500mm Width SS Plates Laser Cutting


Products Specification

Products Name348 / 348H Stainless Steel Plate Sheet
Main GradesStainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L, 309, 309S, 310, 310S, 316, 316L, 316TI, 317L, 321, 321H, 347,348, 409, 410, 410S, 420, 430, 441, 904L,630,631,254SMO,654SMO,253MA,2205,2507.etc
Thickness0.6 - 80.0mm
Width1250mm,1500mm ,1800mm,2000mm, or custom other size as request
Length2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT
ServiceLaser Cutting
FormPlate / sheet
Cutting ShapeRound , Square, or any special shape as request
Test CertificateYes.
FinishNO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA.
BrandTISCO, LISCO,BAOSTEEL , POSCO, JISCO

ASTM A240 348 and 348H stainless steel plates are high-performance austenitic stainless steels, primarily designed for elevated-temperature applications where resistance to intergranular corrosion and creep is critical. Our plates are available in standard widths of 1250mm and 1500mm, with customizable lengths, and can be precision-cut via laser to meet specific project requirements.

Chemical Composition (Typical, %)

The chemical makeup of 348 and 348H stainless steel is tailored to enhance high-temperature stability and corrosion resistance:
Element348 (ASTM A240)348H (ASTM A240)
Carbon (C)0.08 max0.04 – 0.10
Chromium (Cr)17.0 – 19.017.0 – 19.0
Nickel (Ni)9.0 – 13.09.0 – 13.0
Niobium (Nb)10×C min (0.70 min)10×C min (0.70 min)
Titanium (Ti)0.10 max0.10 max
Manganese (Mn)2.00 max2.00 max
Silicon (Si)0.75 max0.75 max
Phosphorus (P)0.045 max0.045 max
Sulfur (S)0.030 max0.030 max
Nitrogen (N)0.10 max0.10 max
Note: 348H has a higher carbon content than 348, enhancing its strength at elevated temperatures.

Mechanical Properties

ASTM A240 348 and 348H stainless steel plates exhibit excellent mechanical performance, especially under high-temperature conditions:
Property348 (Room Temperature)348H (Room Temperature)
Tensile Strength≥ 515 MPa (75 ksi)≥ 515 MPa (75 ksi)
Yield Strength (0.2% offset)≥ 205 MPa (30 ksi)≥ 205 MPa (30 ksi)
Elongation (in 50mm)≥ 40%≥ 40%
Hardness (Brinell)≤ 217 HB≤ 217 HB

Product Standards

Our 348 and 348H stainless steel plates are manufactured in strict compliance with international standards to ensure quality and consistency:
  • ASTM A240 / ASME SA240: Primary standard for chromium-nickel stainless steel plate, sheet, and strip for pressure vessels and general applications.
  • ASTM A480: Specifies tolerances for plate, sheet, and strip.

Equivalent Grades

348 stainless steel is recognized by the following equivalent designations globally:
  • UNS: S34800 (348); S34809 (348H)
  • EN: 1.4548
  • DIN: X6CrNiNb18-10
  • JIS: SUS348
  • GB/T: 06Cr18Ni11Nb

Product Features

  1. High-Temperature Resistance: Exceptional creep strength and oxidation resistance at temperatures up to 800°C (1472°F), making it ideal for high-heat environments.
  2. Intergranular Corrosion Resistance: Stabilized with niobium (Nb) to prevent chromium carbide precipitation, eliminating sensitization and enhancing resistance to intergranular corrosion (e.g., in chloride or acidic environments).
  3. Austenitic Structure: Non-magnetic, with excellent ductility and formability, allowing for easy fabrication (welding, bending, cutting).
  4. 348H Variant: Higher carbon content in 348H improves high-temperature strength, making it preferred for critical pressure vessel and boiler applications.
  5. Consistent Quality: Manufactured to ASTM A240 standards, ensuring uniform chemical composition and mechanical properties across 1250mm and 1500mm width plates.

Applications of 348 / 348H Stainless Steel Plate

348 and 348H stainless steel plates are widely used in industries requiring high-temperature and corrosion resistance:
  • Power Generation: Boiler tubes, heat exchangers, and turbine components in fossil fuel and nuclear power plants.
  • Chemical Processing: Reactors, pressure vessels, and piping handling corrosive media at elevated temperatures.
  • Aerospace: Jet engine components and exhaust systems exposed to high heat.
  • Oil & Gas: Downhole equipment and refinery components operating in high-temperature, corrosive environments.
  • Food Processing: High-temperature sterilization equipment (due to corrosion resistance and ease of cleaning).
