Dongfeng Mini Road Cleaning Sweeper Dust Suction Water Spraying Truck

Categories Road Sweeper Truck
Certification: ISO9001, ISO14001, OHSAS18001, CCC
Place of Origin: China
Brand Name: Dongfeng
Model Number: CLW
MOQ: 1
Price: 15000-35000 per unit
Packaging Details: Nude
Delivery Time: 65 working days after deposit
Payment Terms: 50% Deposit,Balance should be paid before ship out
Supply Ability: 500PCS/Week
Product Name: Street Sweeping Vehicle
Model NO.: Dongfeng
Type: Pure Sweep-type
Transmission Type: Manual
Emission Standard: Euro 4
Fuel: Diesel
Payload: 50T
Use: Burnishing
Cleaning Process: Cold Water Cleaning
Condition: New
Engine: Cummins 190HP
Tire: Tire Specification:10.00r20
Axle: Number of Axles: 2
Brush: 4
Sweeping Width: 3.2 M
Max Speed(Km/H): 90
Truck Brand: Dongfeng
Capacity: 8cbm Dust Bin
Capacity1: 4cbm Clean Water Tank
Material: 304 for Dustbin, Carbon Steel for Water Tank
Steering Wheel: Left Hand Driver or Right Hand Driver
Power: 132kw
Auxiliary Engine: Cummins
Rated Power: 140HP
Transport Package: Bulk, RO-RO, Frame, Container
Specification: 10050X2500X3390
Trademark: DONGFENG DFAC
Origin: China
HS Code: 8503009090
Customization: Available
After-sales Service: 10 Year
Warranty: 12 Month
Shipping Cost: Contact the supplier about freight and estimated delivery time.
Secure payments: Every payment you make on Made-in-China.com is protected by the platform.
Refund policy: Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Manufacture: Chengli Special Automobile Co.,Ltd
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

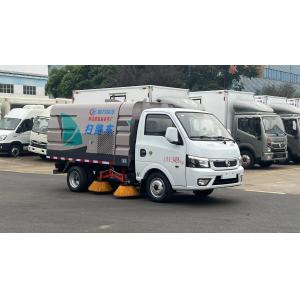

Dongfeng Mini Road Cleaning Sweeper Dust Suction Water Spraying Truck

Dongfeng Mini Road Cleaning Sweeper Dust Suction Water Spraying Truck

The Dongfeng Mini Road Cleaning Sweeper Dust Suction Water Spraying Truck is a specialized municipal vehicle designed for urban and industrial area sanitation. It integrates multiple functions for efficient street cleaning.

Multi-Functionality: It typically combines sweeping, vacuum dust suction, and water spraying (sprinkling/dust suppression) in one machine. Some models also offer high-pressure washing.

Dust Control: The water spray system is crucial for dust suppression, wetting the road surface to prevent secondary pollution as the brushes sweep and the vacuum collects debris.

Sweeping System: Usually features side brushes (often two or four) that rotate to move debris towards the center of the vehicle and a suction nozzle located underneath or at the rear. The brushes often have an auto-avoidance or protection function.

Debris Collection: A powerful vacuum/suction system (often driven by an auxiliary engine and fan) sucks the swept debris and fine dust into a dedicated garbage/dust tank (hopper).

Auxiliary Engine: The cleaning functions (brushes, fan, hydraulic system) are often powered by a separate auxiliary engine (like a Cummins or similar brand) for consistent performance independent of the main vehicle engine.

Tanks: It includes a Water Tank (for the spray system) and a Garbage/Dust Tank (for collected debris), often made of stainless steel for durability and corrosion resistance.

Road Sweeper truck is known as sweeper truck, street sweeper truck, street Cleaning Truck, vacuum sweeper truck. It is a new generation of different-sized and environmentally protective vehicles, combined with suction type and road sweeping. It's mainly applied to city streets, municipal squares, large-scale mechanized factory, etc. The truck chassis can be any brand in China. Such as Sinotruk Howo, Foton, Shacman, DONGFENG, etc.

Dongfeng sweeper brush road sweeper truck Technical date:
Component CategorySpecification
Vehicle Chassis
Chassis BrandDongfeng (DFAC)
Drive Type4*2
SteeringLeft Hand Drive (LHD) or Right Hand Drive (RHD)
Overall Dimensions (L*W*H)6200*2000*2590
Wheelbase3300−3360
Gross Vehicle Weight (GVW)5000−7350
Curb Weight3500−5220
Main Engine Power90−130
Tire Specification7.00R16
Max Driving Speed90
Cleaning System
Sweeping System4 Center-mounted sweeping brushes + rear suction nozzle
Sweeping Width2.8−3.2
Sweeping Speed (Working)3−20
Max Cleaning Capacity40,000−60,000
Cleaning Efficiency≥95
Max Suction Granular Size≥110−120
Superstructure/Tank System
Garbage/Dust Tank Volume3.5−4.0
Garbage/Dust Tank MaterialStainless Steel
Max Discharge Angle≥45∘
Water Tank Volume1.5−2.0
Water Tank MaterialStainless Steel
Dust Suppression SystemWater spray bars/nozzles on brushes and suction inlet
Power System (Auxiliary)
Auxiliary Engine Brand/ModelIsuzu-tech or similar (for sweeping/vacuum function)
Auxiliary Engine Power57 or 77
Vacuum FanMaintenance-free centrifugal fan
Hydraulic System Pressure16
Control & Operation
Control TypeIn-cab Electric/Hydraulic control panel
Key Safety FeaturesSweeping brushes with automatic obstacle avoidance/reset function
Additional FeaturesRear LED pilot lamp, Self-unloading dump body
itemParameter
Production nameDongfeng Tianjin Road sweeper truck
vehicle modelCLW5160TSLD5
EngineEngine model: ISB190 50
Engine manufacturer: Dongfeng Cummins Engine Co., LTD
Exhaust: 4500ml
Power: 132kw
Chassis modelDFL1160BX1V
TireTire specification: 10.00R20
Number of tire: 6+ 1 spare
AxleNumber of axles: 2
Axle-load: 5800/10000
Wheel base(mm): 4700
Traction system4*2
Tank fact cubage(cbm)8 m3 dustbin,4 m3 clean water tank
GVW(kg)15800
Curb weight(kg)10670
Overall dimensions(mm)8050*2500*3060
Steering WheelLeft hand Driver or Right Hand Driver
F / R track base(mm)1880/1860
F/R overhang(mm)1430/1920
Approach / departure angle(°)20/12
Max speed(Km/h)90
equipment1> Equipped with 4 sweeping brush, Cummins 140 hp deputy engine; Italian motor; French control switch; Joint venture solenoid valve group; Maintenance-free self-separate clutch; Maintenance-free fan; Stainless steel water tank and dustbin; Rear LED arrow lights, manual pump for emergency system.
2> Maximum sweeping width 3.2 m, inhaled sizeφ120 mm
3> Optional: monitoring, sprinkler function, self-cleaning function for dustbin.
Product cycle15-20 days
Warranty12 months, from the date of supply
Dongfeng Mini Road Cleaning Sweeper Dust Suction Water Spraying Truck details :
Sweeping:
  • Side Brushes (usually 2 or 4): Located toward the center or front, these brushes rotate to dislodge debris from curbs and gutters and push it into the path of the central suction nozzle. They often have automatic obstacle avoidance and can be controlled independently (left or right side).
Dust Suction (Vacuum):
  • Auxiliary Engine: The special functions (sweeping, suction, water) are usually powered by a separate auxiliary engine (e.g., Cummins or Isuzu technology), which drives a powerful fan or air blower.
  • Suction Nozzle: The fan creates a strong negative pressure (vacuum) in the debris hopper. A wide suction nozzle positioned behind the brushes then sucks up the debris (dust, sand, leaves, small stones) along with the air, depositing it into the garbage tank (hopper).
Water Spraying (Dust Suppression):
  • Nozzles: Water nozzles are strategically placed, typically over the sweeping brushes and possibly in the suction area.
  • Function: The water is sprayed as a fine mist to dampen the dust stirred up by the brushes and to prevent it from becoming airborne, which significantly reduces secondary dust pollution.
Dongfeng Mini Road Cleaning Sweeper Dust Suction Water Spraying Truck Dongfeng Mini Road Cleaning Sweeper Dust Suction Water Spraying Truck Dongfeng Mini Road Cleaning Sweeper Dust Suction Water Spraying Truck Dongfeng Mini Road Cleaning Sweeper Dust Suction Water Spraying Truck
About Chengli Special Automobile Co., Ltd

Headquarters: Suizhou City, Hubei Province, China. Suizhou is often called the "Capital of China's Special Purpose Vehicles."

Establishment: The company's predecessor, Chengli Special Automobile Co., Ltd., was established in 2004.

Scale: It is one of the largest special vehicle manufacturers in Central China, with a large industrial park, thousands of employees, and a high annual production capacity (e.g., up to 100,000 special trucks).

Group Status: The parent company, CLW Group, is a diversified enterprise that ranks among the Top 500 Chinese Private Enterprises.

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Chengli Special Automobile Co., Ltd Overseas Market

Africa: This is a major market, with sales reported across East Africa (e.g., Tanzania, Kenya, Uganda, Malawi) and West Africa (e.g., Nigeria, Ghana, Senegal, Togo, Benin, Niger, South Africa). Their products often support infrastructure, sanitation, and logistics projects in these regions.

Southeast Asia: A strong and established market for Chengli, including countries like the Philippines, Vietnam, Cambodia, Myanmar, Laos, Malaysia, and Thailand.

Middle East: Important markets such as Saudi Arabia and the UAE are destinations for their specialized vehicles, particularly fuel tankers and emergency vehicles (e.g., ambulances).

Central Asia: The company exports to countries like Russia, Mongolia, Kazakhstan, Uzbekistan, and Kyrgyzstan.

South America: Key customers are located in countries such as Peru, Bolivia, Panama, Chile, and Venezuela.

Oceania: Products are also shipped to countries like Australia and New Zealand.

Eastern Europe: This is also listed as a trade market.

Certifications and Export Capabilities

Chengli's ability to compete internationally is supported by its strong compliance and infrastructure:

  • Export Right: The company holds the right to conduct self-managed export business.
  • International Certifications: They have secured essential international certificates for global trade, including ASME (American Society of Mechanical Engineers) and ADR (European Agreement concerning the International Carriage of Dangerous Goods by Road), which are critical for exporting pressure vessels and tank trucks.
  • Customization: They are known for providing customized and OEM services to meet the specific technical and regulatory requirements of different international markets (e.g., Left-Hand Drive vs. Right-Hand Drive).

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
