| Categories | Outdoor Waterproof Omnidirectional Antenna |
|---|---|
| Brand Name: | Leenz |
| Model Number: | LZANT-10001-A |
| Certification: | RoHs |
| Place of Origin: | China |
| MOQ: | 10 |
| Payment Terms: | T/T |
| Supply Ability: | 5K per day |
| Delivery Time: | 15 days |
| Frequency: | 2400-2500MHz |
| VSWR: | <2.0 |
| Peak Gain: | 6dBi |
| Impedance: | 50 |
| Company Info. |
| Dongguan Leenz Electronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
2.4G 2dBi wifi Outdoor Antenna Omni Directional Antenna Fiber Glass antenna FRP Antenna WIFI Antenna 16x100mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400-2500MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Antenna Gain | 6dBi |
| Efficiency | ≈80% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 20±5° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | Φ18.5*350mm |
| Weight | 0.18Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data
2.1 VSWR

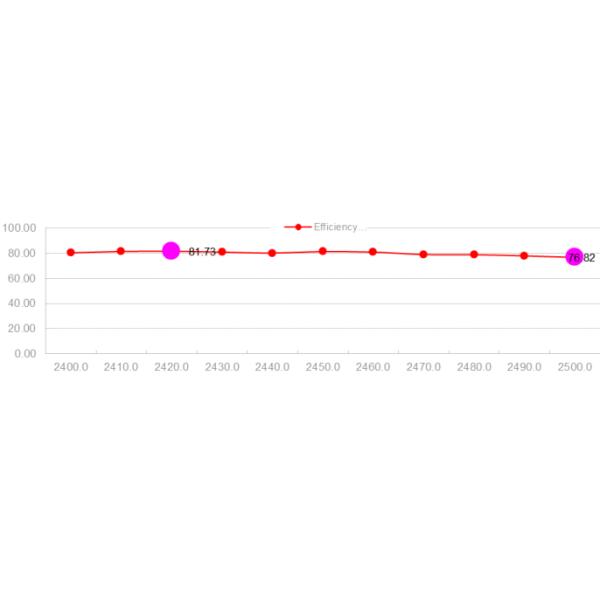

2.2 Total Efficiency & Gain:
| Frequency(MHz) | 2400.0 | 2410.0 | 2420.0 | 2430.0 | 2440.0 | 2450.0 | 2460.0 | 2470.0 | 2480.0 | 2490.0 | 2500.0 |
| Gain (dBi) | 4.85 | 5.10 | 5.30 | 5.36 | 5.28 | 5.32 | 5.35 | 5.33 | 5.42 | 5.36 | 5.27 |
| Efficiency (%) | 80.42 | 81.50 | 81.73 | 81.00 | 80.27 | 81.39 | 81.00 | 79.08 | 78.93 | 77.99 | 76.82 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz |  |  |  |
| 2450MHz |  |  |  |
| 2500MHz |  |  |  |
|
