Steel stranded conductors -DIN 48201-3 standard

Galvanized steel strands can be used for a variety of purposes such as power strands for insulating overhead strands, tie-down or support wires.

Steel wires for strands meet the requirements of DIN 48201-3.

Features

Galvanized steel wire is perfect for mass-produced corrosion-resistant wire products due to its low cost and ease of production.

To increase its corrosion resistance, galvanized steel wire strand is exposed to a galvanizing procedure.

Good reliability and high strength.

Application

Galvanized steel strands are used as power strands for insulated overhead strands, tie-down cables or support cables, etc.

Construction

Concentrically stranded galvanized steel wire strand.

The outer layer of all strands is right-handed. The pitch diameter ratio of the outer layer of the stranded wire is 10 to 14 times.

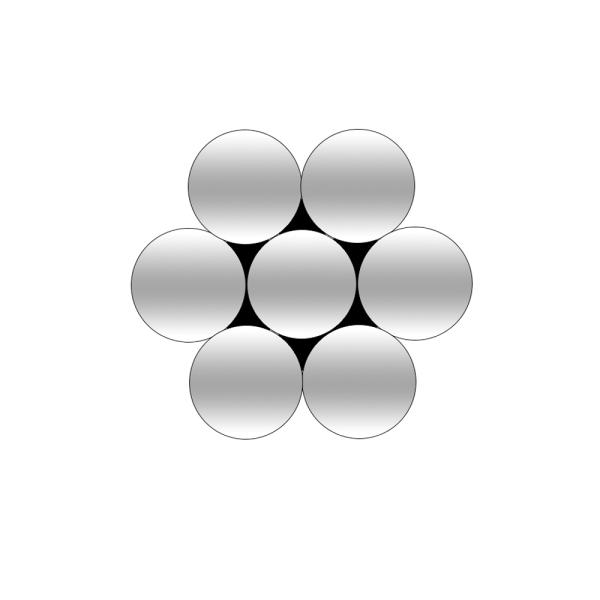

There are 1×7 and 1×19 twisted wire structures.

Specification

item	value
Steel Grade	Steel
Standard	AiSi
Place of Origin	Chongqing, China
Type	Stainless steel
Application	Hanging lamp ,pergola,flagpole,clothesline etc.
Alloy Or Not	Non-Alloy
Special Use	Cold Heading Steel
Brand Name	Honghao

Product Description

* Steel wire rope is made of steel wire rope as the main raw material through a series of processing. This rope plays a key role in lifting, pulling, tensioning and carrying operations.

* Steel wire rope has many advantages, such as high strength, light weight, stable work and not easy to break suddenly, so it has been widely used in many industries such as steel, chemical industry, transportation, port and so on.

* In the production of steel wire rope, a variety of types of wire rope will be used, including phosphating coated wire rope, galvanized wire rope, stainless wire rope and smooth wire rope. Among them, galvanized steel wire rope is favored because of its excellent corrosion resistance; The phosphating coated wire rope is not only corrosion resistant, but also has good wear resistance.

Material:

Steel wire rope material is usually made of high-strength steel wire, the common steel wire material is carbon steel wire, stainless steel wire, high carbon steel wire and alloy steel wire.

Carbon steel : Carbon steel wire is the most common steel wire rope material, with high strength and good wear resistance. The strength and durability of carbon steel wire can be further improved by heat treatment processes such as quenching and tempering.

Stainless steel : Stainless steel wire is composed of chromium, nickel and other alloy elements, with corrosion resistance. Stainless steel wire ropes are often used in environments where corrosion resistance is required, such as Marine engineering.

High carbon steel : High carbon steel wire has higher strength and hardness and is suitable for applications that resist tension and wear, such as lifting machinery and conveyor belts.

Alloy steel : Alloy steel wire consists of a variety of metal alloys to provide additional strength and hardness. Alloy steel wire is commonly used in special applications such as aerospace and automotive engineering.

Rope core: 1.Rope core and code a fiber core (natural or synthetic) : FC, such as FC stainless steel wire rope. 2. Natural fiber core: NF, such as NF stainless steel wire rope. 3. Synthetic fiber core: SF, such as SF stainless steel wire rope. 4. Wire core: IWR(or IWRC), such as IWR stainless steel wire rope. 5. Wire core : IWS, such as IWS stainless steel wire rope. Features: 1.High dimensional accuracy, up to ±0.01mm. 2. Good surface quality, good brightness. 3. Has strong corrosion resistance, high tensile strength and fatigue strength. 4. Stable chemical composition, pure steel, low inclusion content. 5. Good packaging, favorable price.

Packing & Delivery

Carton and Wooden Case or as per customer's requirements

Company Profile

Chongqing Honghao Technology is a private enterprise,we are professional manufacturer of steel wire rope for 15years.

We mainly supply and manufacture galvanized aviation-use steel ropes with various structures and specifications, brake wires for
cars,motorcycles and bicycles, stainless steel ropes, non rotating steel ropes, elevator wire ropes, and wire ropes for special uses.Our current annual output is 4,000 tons of galvanized steel ropes. Backed by comprehensive production equipment, advanced testing instruments, and experienced staff, we guarantee reliable product quality.
Today, our customers are in more than 60 countries in the European Union, North America, South and Central America, the Middle
East and Southeast Asia.

FAQ

In ordering steel wire rope, you are requested to give us complete information as specified below:

a. Purpose: For which rope will be used.
b. Size: Diameter of the rope in millimeter or inches

c. Construction: Number of strands, number of wires per strand and type of strand construction.

d. Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).

e. Lay: Right regular lay, left regular lay, right lang lay, left lang lay.

f. Coating: Bright(ungalvanized), galvanized or stainless, PVC or Grease.

g. Grade of wire: Tensile strength of wires.

h. Breaking Load: Minimum or calculated breaking load in tones or pounds.

i. Lubrication: Whether lubrication is desired or not, and required lubricant.

j. Length: Length of wire rope.

k. Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.

l. Quantity: By number of coils or reels, by length or weight.

m. Remarks: Shipping marks and any other special requirement.
