Air Cooled Handheld Laser Welding Machine 2000W 1500W Metal Raycus Fiber Laser Welder

JPTECH 2000W 1500W handheld laser welding machine MAX RAYCUS BWT RECI Air cooled laser welder

About Air cooled laser welding machine:

Air-cooled handheld laser welding machine is a portable laser welding equipment with forced air-cooled heat dissipation technology, without water cooling system, flexible operation, adaptable, especially suitable for small-scale processing, maintenance, education and training fields. Due to its efficient heat dissipation design and lightweight handheld welding head, it is gradually becoming an alternative to traditional argon arc welding and electric welding.

1. Main features and advantages

(1) No cooling water requirement, easy maintenance.

✅ Air-cooled heat dissipation: adopts high efficient fan or air duct to dissipate heat, no need for chiller or coolant, reducing the risk of failure.

✅ Maintenance-free: only need to clean the fan dust regularly, no water pipe blockage or leakage problem.

✅ Energy saving: save 30%~50% power than water-cooled devices, more suitable for mobile power or field operation.

(2) Portable and flexible, easy to operate.

✅ Handheld design: the welding head is lightweight (weight is usually <1.5kg), supports one-person operation, and is suitable for high-precision welding.

✅ Ready to use: no need to wait for the water-cooling system to warm up, power on and start, higher efficiency.

✅ Adaptable to complex environments: can work in narrow spaces or at high altitude (e.g. automobile maintenance, steel structure welding).

(3) High welding quality and wide range of applications.

✅ Precision welding: fine laser beam (0.2~2mm), small heat-affected zone, reduce deformation.

✅ Adaptable to a wide range of materials: can weld stainless steel, carbon steel, aluminum alloy, copper and other metals (see the material application table).

✅ No welding slag spatter: compared with traditional arc welding, the weld seam is smooth and does not need to be polished.

2. Typical application scenarios

3. Technical parameters (1500W air-cooled hand-held laser welding machine as an example)

4. Comparison with conventional welding methods

5. Applicable population and recommended options

✅ Recommended User Type:

· Small hardware processing factories, repair stores.
· Vocational and technical schools, educational institutions (training and teaching).
· Automobile, electronics, jewelry industry practitioners.
· Individual DIY enthusiasts or craftsmen.

❌ N/A Scenario:

· Ultra-thick plate welding (e.g. carbon steel over 10mm requires higher power equipment).
· Long time high volume welding (continuous high load may affect heat dissipation, intermittent use is recommended).

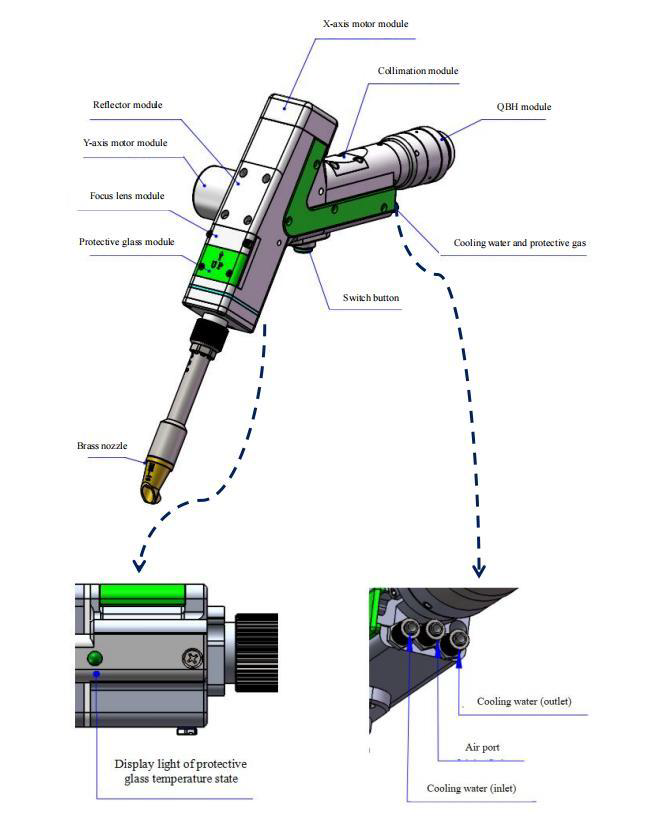

6. Chaoqiang SUP 21T/23T introduce(laser gun)
