Brand Name: | OEM |
Model Number: | BIO-B234 |
Certification: | CE,RoHS,BSCI,FCC |
Place of Origin: | Dongguan China |
MOQ: | 300 |
Price: | 10 ~ 10000 Pieces $15 ~ $10 |
Payment Terms: | T/T, Western Union, MoneyGram, D/P |
Supply Ability: | 1000000pcs/month |
Delivery Time: | 5- 15 days |
Packaging Details: | Normal by PE bag, color box, standard carton. According to the special requirements of the customers packaging. |

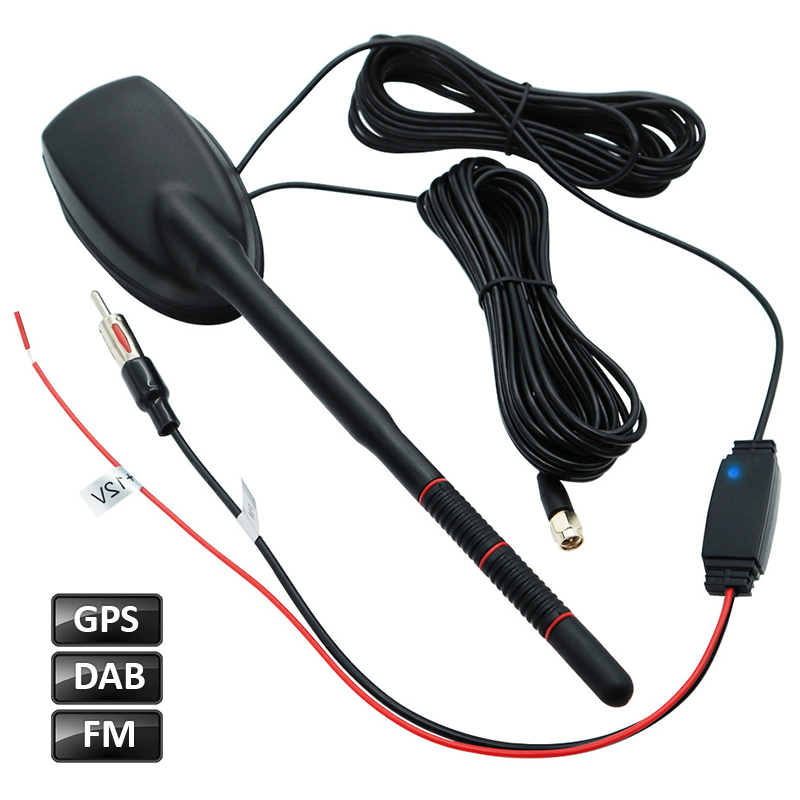

Product name: | GPS FM AM DAB Automotive Antenna |
FM Frequency Range: | 87.5-108MHz |
AM Frequency Range: | 530MHz-1710MHz |
DAB Frequency Range: | 170-230MHz, 1452-1492MHz |
GPS + Beidou Frequency Range: | 1561-1575.42MHz |
Gain: | 20dB |
Amplifier Gain: | 20dB |
Operating Voltage: | 12V |
Characteristic Impedance: | 75Ω |
Current: | 25mA (±2) |
Company Info. |
Dongguan Baiao Electronics Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

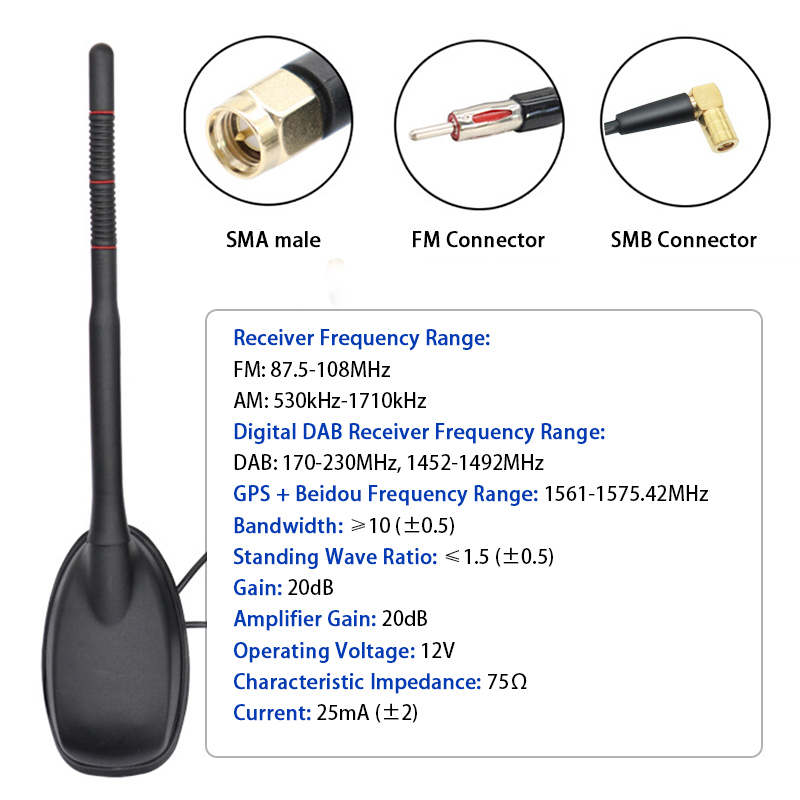

Peculiarity
● Receiver Frequency Range: FM: 87.5-108MHz AM: 530kHz-1710kHz
● Digital DAB Receiver Frequency Range: 170-230MHZ/1452-1492MHZ
● DAB Frequency Range: 170-230MHz, 1452-1492MHz
● GPS + Beidou Frequency Range: 1561-1575.42MHz
● Bandwidth: ≥10 (±0.5)
● Standing Wave Ratio: ≤1.5 (±0.5)
● Gain: 20dB
● Amplifier Gain: 20dB
● Operating Voltage: 12V
● Characteristic Impedance: 75Ω
● Current: 25mA (±2)

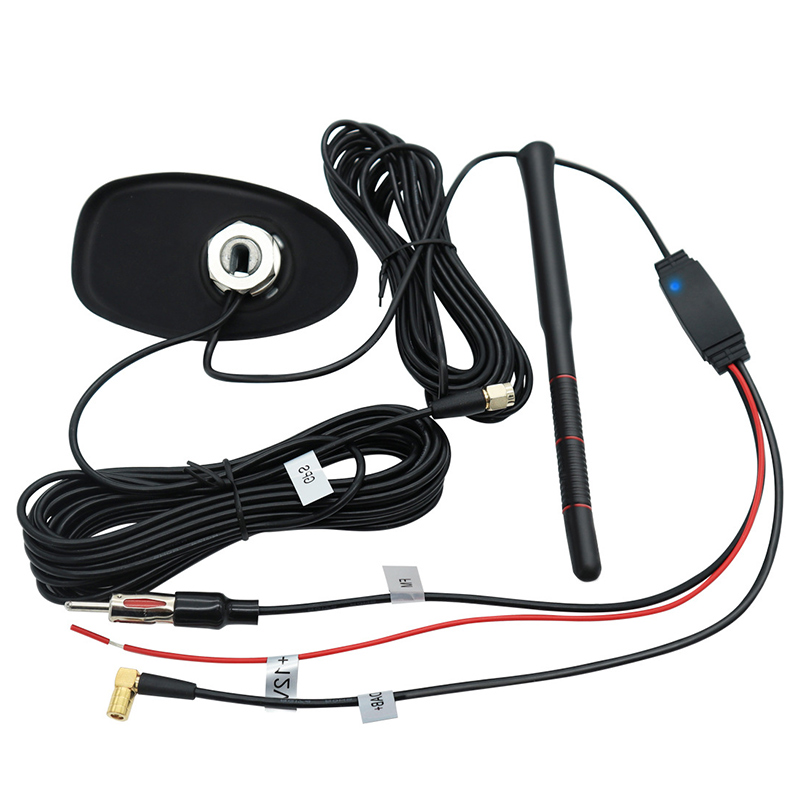

Installation procedure
1. Install the antenna on the roof of the car.
2. Use nuts to hold the antenna in place inside the car.
3. Pull the antenna output line into the dashboard along the roof.
4. Connect the power cord (12V) to the car antenna.
5. Connect the radio FM connector.
![]() |
