Semi Automatic Transformer Winding Machine Manufacturer Double Head

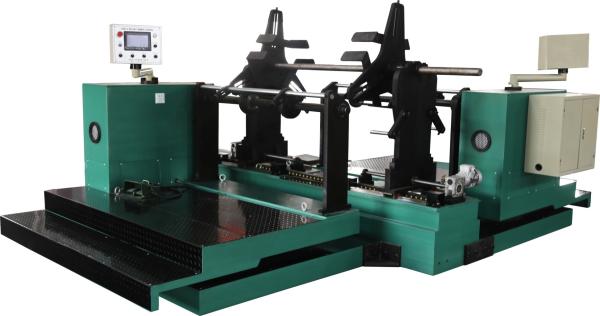

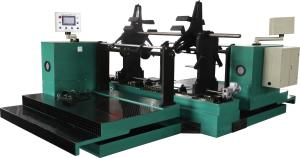

The Triangle Three-Dimensional Coil Iron Core Double Head Horizontal Winding Machine is a specialized piece of equipment designed for winding coils in dry type transformers. It is specifically tailored to handle the winding process of triangular three-dimensional coil iron cores and is intended for use in the manufacturing of dry-type transformers.

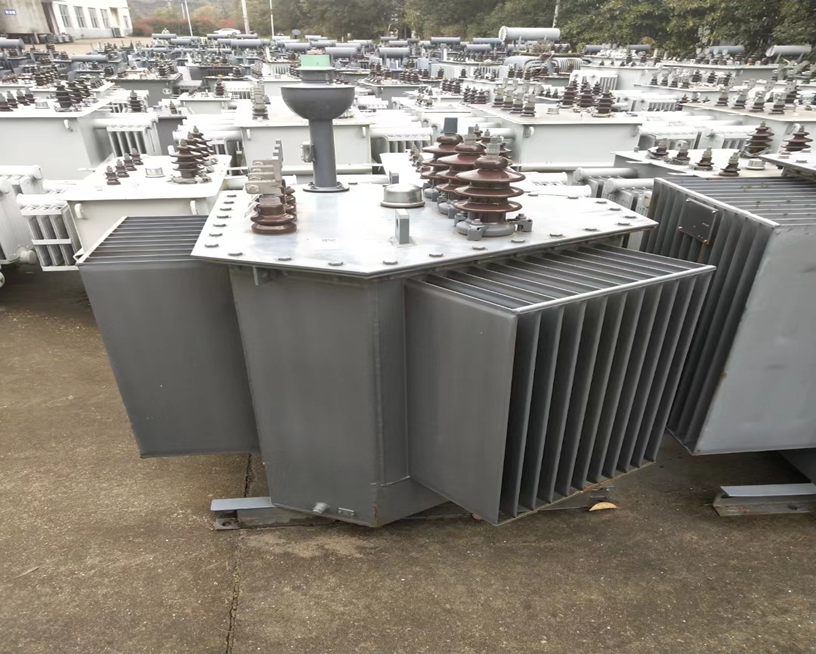

Dry type transformers are electrical transformers that use air or gas as the cooling medium instead of liquid. They are commonly used in various applications, including buildings, industrial settings, and power distribution systems. The coil winding process is a critical step in the manufacturing of these transformers.

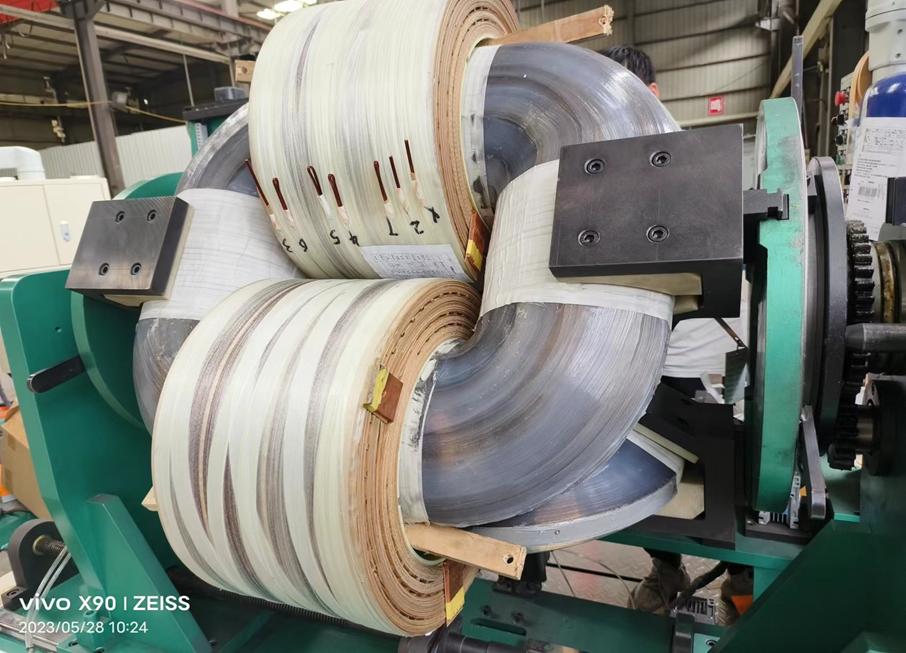

The key feature of this winding machine is its ability to handle the winding of triangular three-dimensional coil iron cores. These cores have a specific shape that allows for efficient distribution of magnetic flux within the transformer. The machine is designed to accommodate this unique coil shape and ensure precise and accurate winding.

The double head configuration means that the machine is equipped with two winding heads, enabling simultaneous winding of multiple coils. This feature helps to increase productivity and efficiency in the winding process.

The horizontal orientation of the machine indicates that the coils are wound horizontally, typically on a rotating mandrel or spindle. This orientation allows for easier handling of the coils during the winding process and facilitates subsequent assembly steps in transformer manufacturing.

Overall, the Triangle Three-Dimensional Coil Iron Core Double Head Horizontal Winding Machine is a specialized equipment dedicated to the winding of triangular three-dimensional coil iron cores specifically for dry-type transformers. Its design and features are optimized for efficient and precise winding in this particular application.
