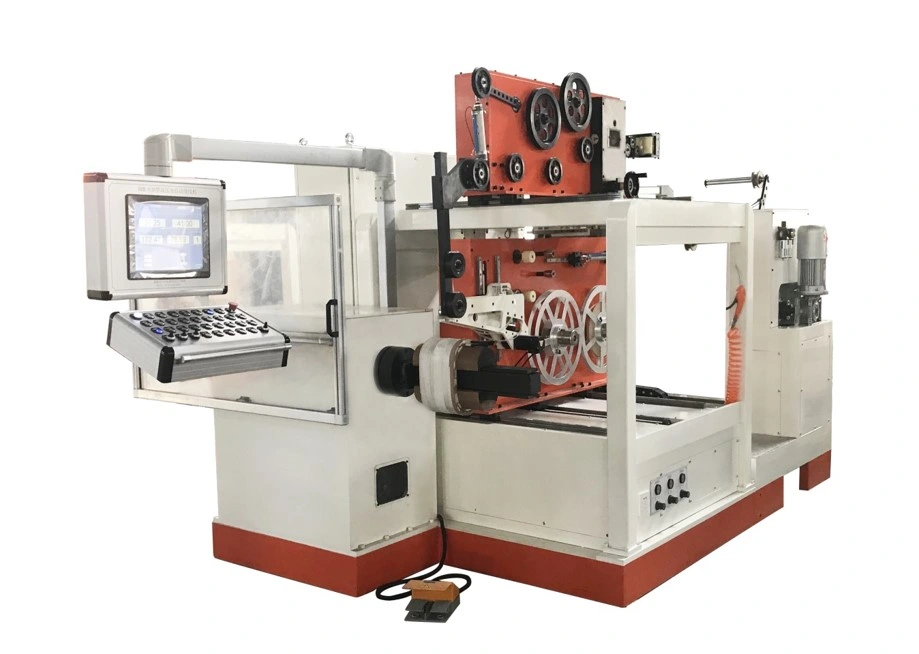

Transformer Ht Coil Winding Machine Transformer Rewinding Machine Equipment

Economical Triangular Three-Dimensional Coiling Core High and Low Pressure Integrated Winding Machine

Product Description

Product Description:
The utility model relates to an automatic and intelligent multi-function winding product which is specially used for winding the core coil of amorphous (silicon steel) triangular coiling core transformer. Suitable for 50KVA-630KVA amorphous (silicon steel) triangular coil core transformer low-voltage foil coil and high-voltage coil production.
My Company:

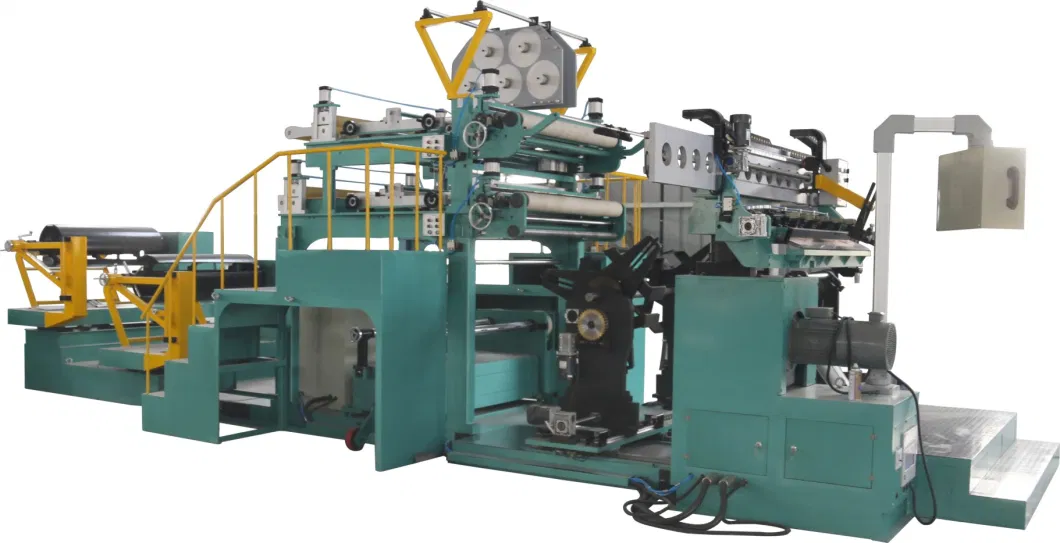

Main products (suitable for new energy) : Foil winding machine, automatic high pressure winding machine, triangular three-dimensional core foil winding machine, amorphous triangular three-dimensional core high and low pressure integrated automatic winding machine, triangular three-dimensional coiling core (silicon steel, amorphous) slitting and winding machine and other transformer special production equipment; Amorphous
115 invention patents, utility model patents and software Copyrights
Purpose:
This equipment is suitable for winding circular, elliptical, oblong, rectangular power transformers, transformers, reactances.
The control part of the device coil adopts a PLC and servo motor system, which has a high level of automation and is particularly suitable for the winding production of amorphous high-voltage coils.


Outer diameter of wire coil: ≤ 600mm

Axial height of coil: ≤ 800mm

Coil form: circular, oblong, elliptical, rectangular

Wire specification: enameled wire( Φ 0.3 to Φ 4mm), flat wire ≤ 3x12mm

Payoff rack: double ended flat wire and a set of round wires

Payoff frame material bearing shaft: Φ 36x450mm

Winding speed: 0-280r/min

Total power: 5KW

Related products

Wuxi Jiachen Power Electronic Equipment Co., Ltd. was established in 2014. The company is committed to exporting the following products:

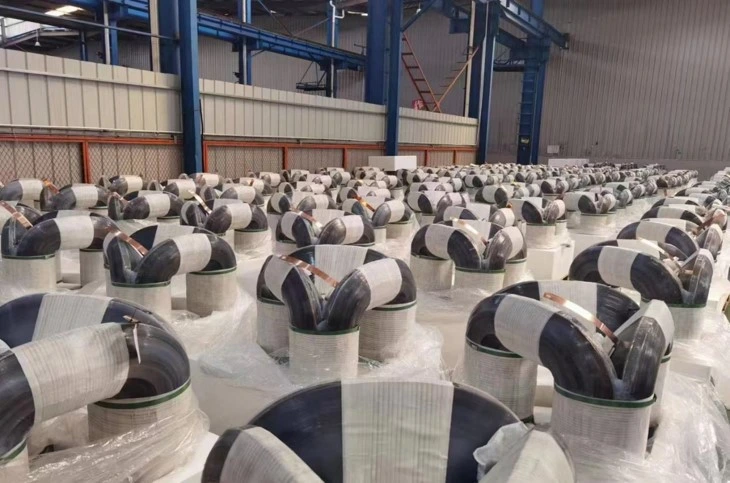

1. Various distribution transformer winding cores, such as S11-100kVA, S13-100kVA; Single phase wound magnetic cores, such as D9, D10, D11, etc. For pole mounted transformers or pad mounted transformers, we can also produce three-phase transformer winding cores; The capacity can range from 10kVA to 2500kVA; For some customers, we can also design drawings based on your technical parameters.

2. Full series of circular magnetic cores, C-type magnetic cores, CD type, and E-type magnetic cores; Widely used in potential transformers, transformers, transformers, voltage transformers, current transformers, power transformers, some reactors, and autotransformers.

3. Various types of series reactors, inductors, DC reactors for frequency converters, filtering reactors, triangular starting reactors, starting compensators, autotransformers, low-voltage dry transformers, current transformers for distribution cabinets, bushing current transformers, etc. Our company is currently collaborating with my partners to develop the single core market in China, and the finished products are operating well among our end users.

4. Related supporting equipment: vacuum drying equipment; Vacuum pouring equipment; Annealing furnace; Transformer winding machine, foil winding machine; Transformer curing furnace; Oven; Epoxy resin mixing tank; Transformer mold

Wuxi Jiachen is based in China to serve global power, committed to providing high-quality products and professional problem-solving solutions. We sincerely welcome you to join us and research new technologies to improve our product performance, reduce manufacturing costs, and achieve mutual benefit.
