Plain Weave Carbon Fiber Sheet 5mm Thick 500mm X 1000mm

Carbon Fiber Sheet – Plain Weave – 5mm Thick – 500mm x 1000mm

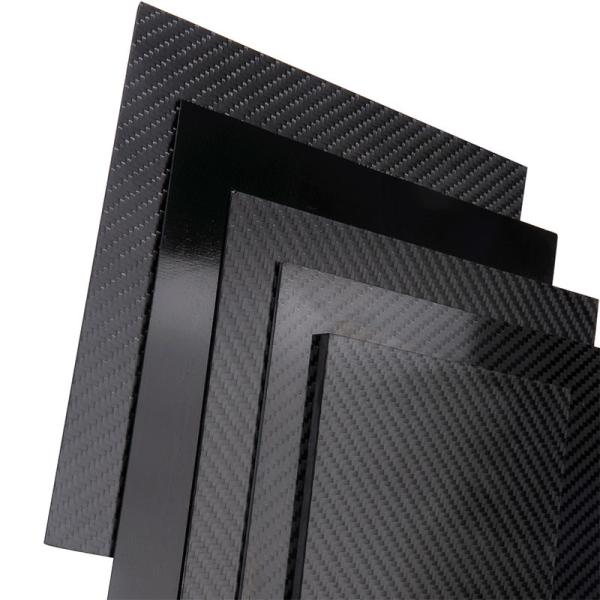

This 5mm carbon fiber plate is manufactured with multiple layers of high strength carbon fiber prepreg using a high pressure molding process.

LIJIN standard sheets are manufactured using a 0/90 layup schedule, where fibers alternate in the 0 and 90 deg directions. This balance of fiber directions provides a good balance of cost and mechanical properties and is suited for most applications.

All Elevated Materials sheets are manufactured in a hot press, yielding an extremely low void fraction.

Typical applications for these plates include Drones, Industrial Robotics, Automotive and Marine Dash Panels, Cosmetic Covers, Scientific Equipment, and more.

Contact us if you would like to request a custom layup schedule, cut size, surface finish, material type, or thickness. We are always happy to help.

Carbon Fiber Flat Plate Specification:

What is Carbon Fiber?

Carbon fiber (also known as carbon fibre) is one of the strongest and most lightweight materials available on the market today. Five times stronger than steel and one-third its weight, carbon fiber composites are often used in aerospace, aviation, robotics, racing, and a wide variety of industrial applications.

Fabric

Carbon fiber starts as very, very thin strands of fiber that are finer than human hair. These strands are twisted together like yarn (called a tow) and woven into carbon fiber fabric which typically comes in 3k, 6k, and 12k weights. A 3k fabric has 3,000 strands of carbon in each tow while a heavier weight 6k fabric has 6,000 strands per tow.

The fabric comes in a variety of weaves that have different strength properties. The most common are plain weave, harness satin weave, twill weave, and unidirectional.

Weave is critical for two reasons: appearance and functionality. Each weave looks very different and sometimes people prefer the look of a certain weave for a specific application. Weave also impacts product strength.

A unidirectional weave creates a sheet that’s very strong in the direction of the fibers, but weak in the opposite direction. Plain and twill weaves, on the other hand, have more uniform strength since they’re strongest at the points where the fibers cross in either direction.

Composites

To make a sheet (also known as a composite), carbon fiber fabric is saturated or infused with epoxy resins and heated at high temperatures. Shaped pieces are made by layering several pieces of fabric over a mold, saturating them with resin, and heating it until the resin has infused through all layers.

Shanghai Lijin focuses on the Carbon Fiber industry and offers carbon fiber tubes, plates, and aluminum CNC services.

Being experienced in the carbon fiber applications for over 7 years, Shanghai Lijin manages customized production according to various industry standards. Shanghai Lijin started to keep in stock for some standard

sized and frequently ordered tubes and plates. This enables Shanghai Lijin to make prompt delivery. Not only

can Shanghai Lijin complete mass production orders in short period, we can even ship normal sample, prototype orders of Carbon Fiber Plate CNC parts in just SEVEN days after order confirmation when the

drawings are available. Shanghai Lijin is dedicated to solve any technical points during the production and new item developing to ensure the quality.

Carbon Fiber tube production is Shanghai Lijin’s core business and occupies 70% of our turnover.
The carbon fiber tubes Shanghai Lijin mainly produce is table-rolled and oven thermoset. The tubes can be Full Carbon or Carbon Fiber and Fiberglass composite, depending on the application, weight limit,mechanical

strength and surface requirement.Shanghai Lijin offers top quality ROUND carbon fiber tubes. The general OD tolerance we achieve is +/-0.10mm and it can be even +/-0.05mm after our special surface process.

The maximum length of the tube can be 5500mm.

Besides the traditional table-rolled carbon fiber tubes, Shanghai Lijin also offers REAL Filament wound carbon fiber tubes,which are widely used for mechanical strength like auto driving shaft, antennas, even for military

applications. The filament wound carbon tubes are wound at a certain angle like 30 or 45 degree. We invested the new production line from Jun 2013 and this increases Shanghai Lijin’s advantage in the carbon

fiber tube industry. There are just a few real filament wound carbon fiber tube manufacturers in domestic

China and we are one of them.


Since the rapid growth of UAV in the international market, instead of the standard plane like Phantom from DJI, RC fans are getting more interested in the customized multicopters. As carbon fiber is the most preferred

material for UAV, Carbon Fiber CNC parts demand is increasing. Shanghai Lijin sticks to offering OEM service for the international market, fine quality and prompt delivery.To ensure the thickness tolerance +/-0.10mm and minimum warp of the Carbon Fiber plates that are used for the cutting, Shanghai lijin execute high standard to

the plate production. For the normal thicknesses including 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm,
Shanghai Lijin keeps regular stock, to make sure the raw material will be available for cutting immediately when order is firmed.Experienced engineers are in Shanghai Lijin’s office ready to deal with different types of

drawings from customers. No matter the drawing formats are .DWG, .DXF that can be edited by AutoCAD

and used directly for production, 3D drawings like .IGS, or even draft drawings, our staff can do adjustment and change to customer’s idea. Our engineers are also good at English communication, Email and IM is easy

for them. Editing drawings for customers is FREE* of charge. Shanghai Lijin is having several professional CNC machines for carbon fiber cutting and drilling, with the capacity of cutting 20-50pcs standard full sized plate per day. The carbon fiber chassis general cutting tolerance Shanghai Lijin offer is +/-0.02mm. The

special designed cutting solution ensures the smoothness of the cutting edge.
