18mm Plastic Recycling 300kg/Hr Pet Bottle Washing Line

Categories HDPE Recycling Machine
Brand Name: XINTING
Model Number: XT300-3000
Certification: CE ISO
Place of Origin: CHINA
MOQ: 1 set
Price: NEGOTIATE
Payment Terms: L/C, , T/T
Supply Ability: 1 set per month
Delivery Time: 30 days
Packaging Details: film package or wood package
Motor:: Siemens
PLC:: Siemens
Certification:: CE
Showroom Location:: Egypt, Saudi Arabia, Mexico, none
capacity: 300-3000kg/hr
waste material: waste plastic PP PE PET
Inverter:: ABB
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

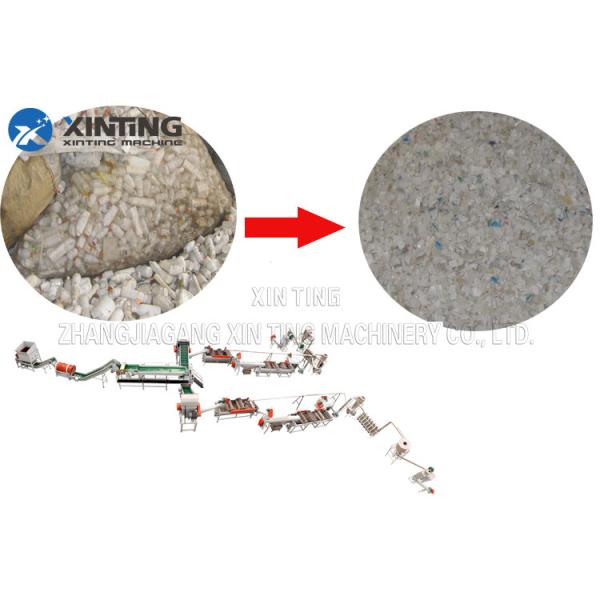

18mm Plastic Recycling 300kg/Hr Pet Bottle Washing Line

PE PP Rigid plastic crushing washing recycling machine line

Basic specification of plastic pet bottle recycling machine/plastic recycling plant/pet bottle washing line

Product capacity

300kg/h

500kg/h

1000kg/h

1500kg/h

Workshop(L*W*H)

40m*7.5m*6m

42m*10m*6m

70m*12m*6m

75m*15m*6m

Needed worker

3-4 persons

5-6persons

7-8persons

10-12persons

Water supply

(recycle use)

2-3ton/h

3-5ton/h

7-10ton/h

10-15ton/h

Final product

Moisture: max 3%

Bulk density: 0.3G/CM3

Particle size: 10-18mm

Metal content: max.20ppm

Floatable contamination: less than 200ppm

Total impurity: 100-320ppm

HDPE PP plastic containers washing and recycling machine
This washing recycling machine is used trecycling the waste HDPE/LDPE/PP/PE bottles, and buckets, hollow containers and so on. which can be used to make granules directly or some other use. The whole line is full automatic and of high effciency. Low noise and easy operation.

Remark:
1- we can supply 300kg/h,500kg/h and 1000kg/h,u can choose the suitable one what u real need.
2-According to your material you can choose different machine.
3- We can customize make the line according to your workshop.
4- We can also provide granulating line


Components List of the HDPE bottle recycling line:

S/N Item Name Function/Remark
1 Conveyor Belt Feeding material
2 Wet Crusher Crushing the material into small size
3 Friction Washing loader Machine Washing out the sand, soil and loading the material
4 1st Floating Washing Tank Floating washing separate the sand,soil and other dirties
5 Screw loader Loading up material to next process
6 High speed friction washer Remove the humidity from the flakes
7 2nd Floating Washing Tank Floating washing separate the sand,soil and other dirties
8 Screw loader Loading material and drain out water from material
9 Horizontal dewatering machine Remove the humidity from the flakes
10 Hot air drying system Drying the flakes
11 Collecting Silo Collecting material
12 Electricity Control box Control the line on/off
13 Free Spare Parts

Technical Date

Model Capacity Installed Power Hot Washing Water Supply Man Power Area Required
MEB-300 300kg/hr 90kW Optional 4-5 m3/hr 1-2 22m*5m*3.5m
MEB-500 500kg/hr 115kW Optional 5-6 m3/hr 2-3 25m*6m*5.5m
MEB-1000 1000kg/hr 215kW Optional 7-8 m3/hr 4-5 35m*6m*5.5m
Technical Parameter
Product capacity
300kg/h
500kg/h
1000kg/h
1500kg/h
Workshop(L*W*H)
40m*7.5m*6m
42m*10m*6m
70m*12m*6m
75m*15m*6m
Needed worker
3-4 persons
5-6persons
7-8persons
10-12persons
Water supply
(recycle use)
2-3ton/h
3-5ton/h
7-10ton/h
10-15ton/h
Final product quality
Moisture: max 1%
Bulk density: 0.3G/CM3
Particle size: 10-18mm
Metal content: max.20ppm
Floatable contamination: less than 200ppm
Total impurity: 100-320ppm
