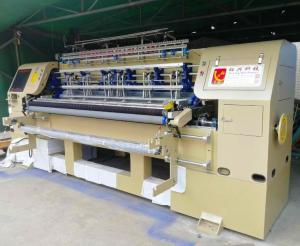

| Categories | Industrial Quilting Machine |
|---|---|
| Brand Name: | Yuxing |
| Model Number: | YXS-96-3CS#10 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Supply Ability: | 20 set/ month |
| Delivery Time: | 15 workdays |
| Packaging Details: | export packing |
| speed: | 1000rpm/min |
| needle bar frame structure: | aluminum alloy |
| saddle frame and roller: | servo drive equipment |
| imported screw rod: | high precision and high rigidity |
| arbitrary quilting: | 360° |
| function: | Automatic stop |
| Company Info. |
| Dongguan Yuxing Machinery Equipment Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
1. The speed of needle is controlled by the computer and can reach
1000rpm/min. 2. Needle row movement adopts aluminum alloy needle bar frame structure which doesn’t need to refuel, and will be strong and durable. 3. The saddle frame and roller adopt servo drive equipment, and the spindle adopts frequency conversion control; 4. Adopt high precision and high rigidity imported screw rod; 5. 360°arbitrary quilting and unlimited independent pattern step quilting; 6. Automatic stop function when the upper thread is broken; 7. Infrared induction makes the operation safer; |
Technical Parameter:
| Parameter(Unit mm) | Model: YXS-96-3CS#10 |
| Dimension (L*W*H) | 4600*1500*1700 MM |
| Quilting width | 2450mm |
| Space between needle rows | 76.2,76.2, 152.4(6") |
| Space between needle | 25.4 |
| X-ais movement displacement | 254mm |
| Thickness of quilting | ≤50mm for all patterns |
| Stitch Length | 2-8mm |
| Speed of operation | 60-210m/hour |
| Model of Needle | 24/180 23/160 22/140 21/130 |
| Speed of operation | 200-1000RPM |
| Total Power required | 6.8KW |
| Voltage | 380/ 50HZ,220V/60HZ or other customer requirement |
| Gross Weight | 4850KG |
|
