| Categories | Automation Connector |
|---|---|
| Brand Name: | Rigoal |
| Model Number: | series panel mount |
| Certification: | CE;ROHS;IP68;ISO9001 |
| Place of Origin: | China Guangdong |
| MOQ: | 10 pieces |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 pieces each month |
| Delivery Time: | 2-3 weeks |
| Packaging Details: | First put in one small PE bag,then put in a carton |
| Pin: | 3 4 5 8 12 17 pin |
| Coding: | A B D coding |
| Gender: | Male and female |
| Type: | panel mount/Assembly/cable |
| Rated current: | 1A for 12 pin/2A for 8 pin/4A for 3 4 5 17 pin |
| Rated voltage: | 30V for 8 12 pin/60V for 5 pin/250V for 3 4 17 pin |
| Operating Temperature: | -25°C~85°C |
| Degree of protection: | IP67/IP68 |
| Connector locking system: | Solder/Pcb/Wire |
| Mechanical operation: | >500 mating cycles |
| Contact resistance: | ≤10mΩ |
| Material of connector: | CuZn,TPU |
| Contact plating: | Au(gold plating) |
| Material of housing: | Brass/Zinc diecasting nickel plated |
| Custom: | Acceptable |
| Company Info. |
| Shenzhen Rigoal Connector Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
IP67 IP68 3 4 5 6 8 12 17 pin pole A B D code panel wall mount m5 m8 m12 m16 m23 wire connector
Techanical Date
| Place of Origin | China |
| Guangdong | |
| Brand | Rigoal |
| Pin | 3 4 5 6 8 12 17 pin |
| Coding | A B D coding |
| Gender | Male and female |
| Type | panel mount/assembly/cable |
| Rated current | 1A for 12 pin/2A for 8 pin/4A for 3 4 5 17 pin |
| Rated voltage | 30V for 8 12 pin/60V for 5 pin/250V for 3 4 17 pin |
| Operating Temperature | -25°C~85°C |
| Degree of protection | IP67/IP68 |

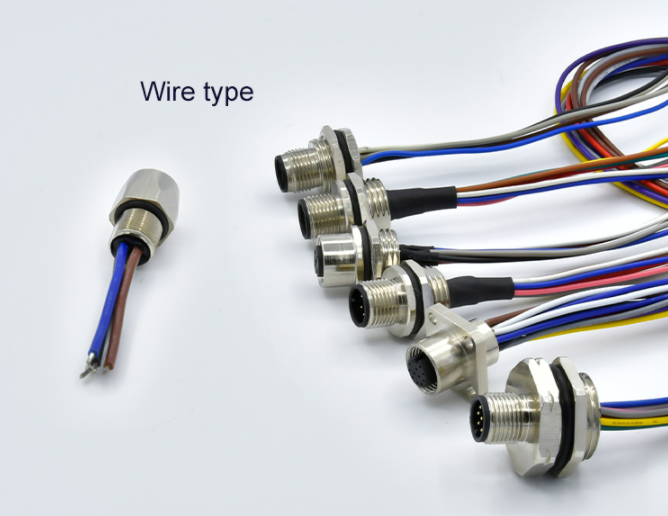

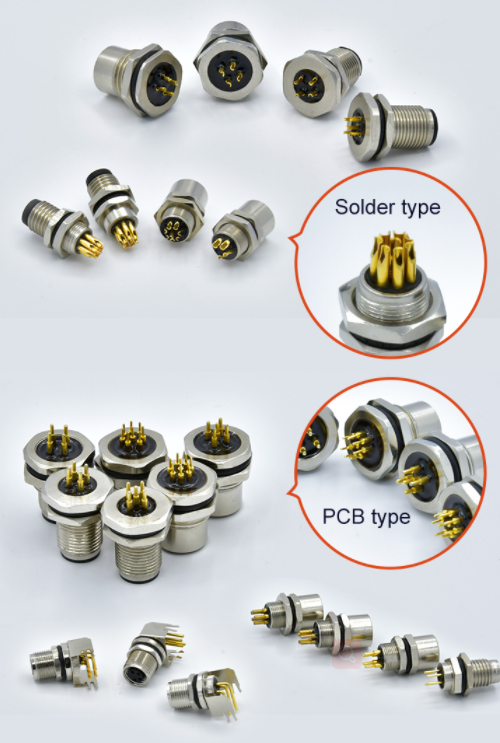

| Connector locking system | Solder/Pcb/Wire |
| Mechanical operation | >500 mating cycles |
| Contact resistance | ≤10mΩ |
| Material of connector | CuZn,TPU |
| Contact plating | Au(gold plating) |
| Material of housing | Brass/Zinc diecasting nickel plated |
| Custom | Acceptable |
Product display
Panel mount connectors can be customized in different types according to different usage scenarios
We strictly control every detail and provide you with high-quality products

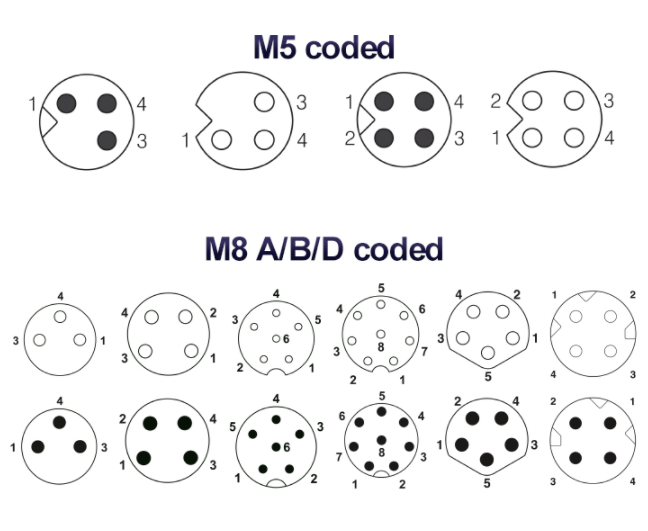

Interface standard and number of cores
We can support A/B/C/D/ interface standards and 2/3/4/5/6/8/12/17 core count customization

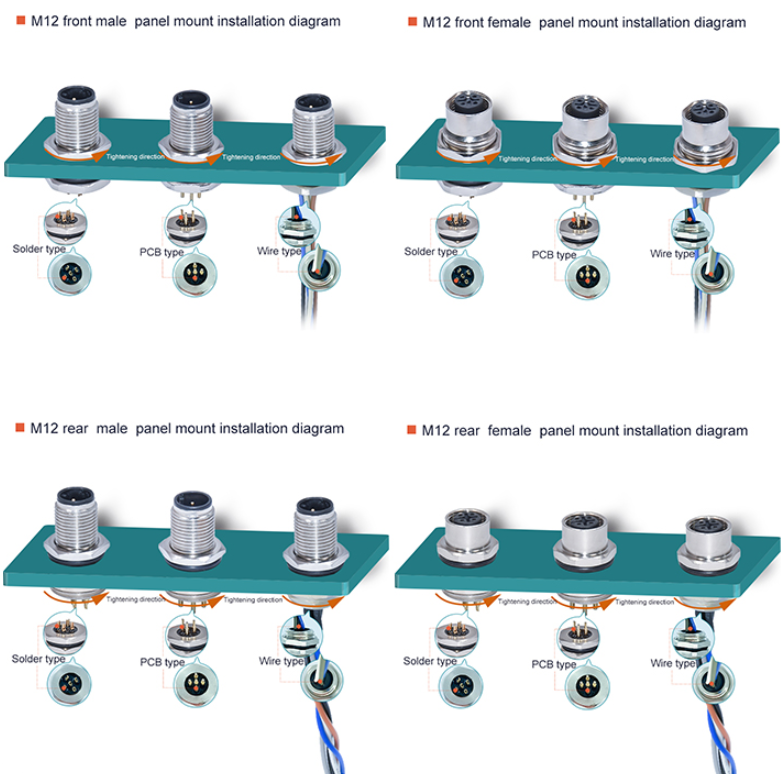

Panel installation
Choose front lock or back lock according to your needs

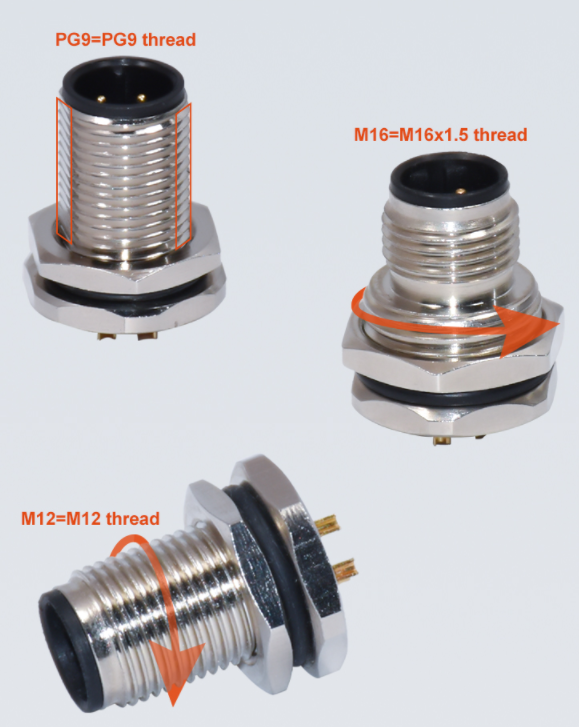

Nut size
Customize the size of the panel nut according to your needs

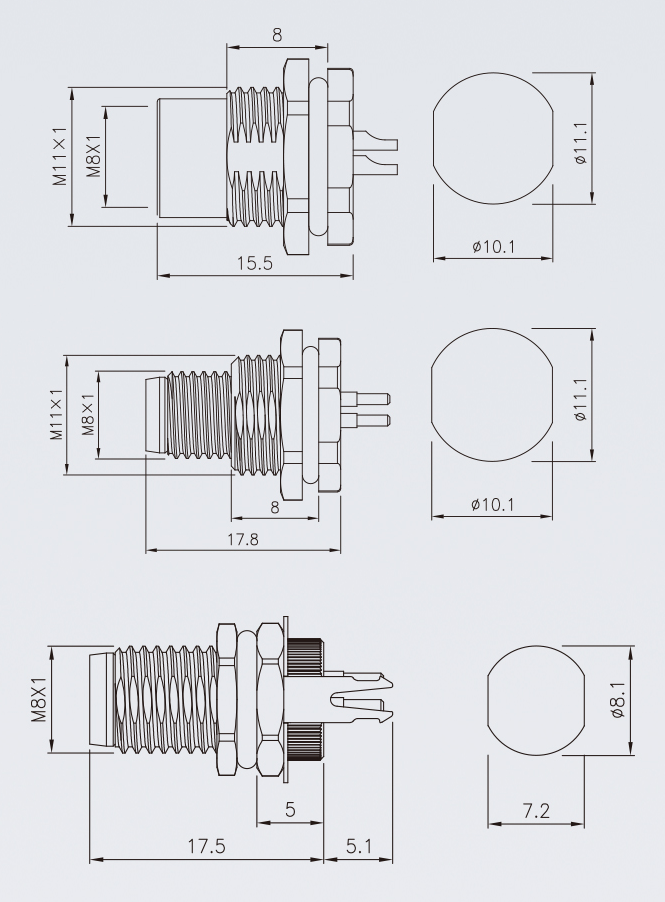

M8 panel drawings:

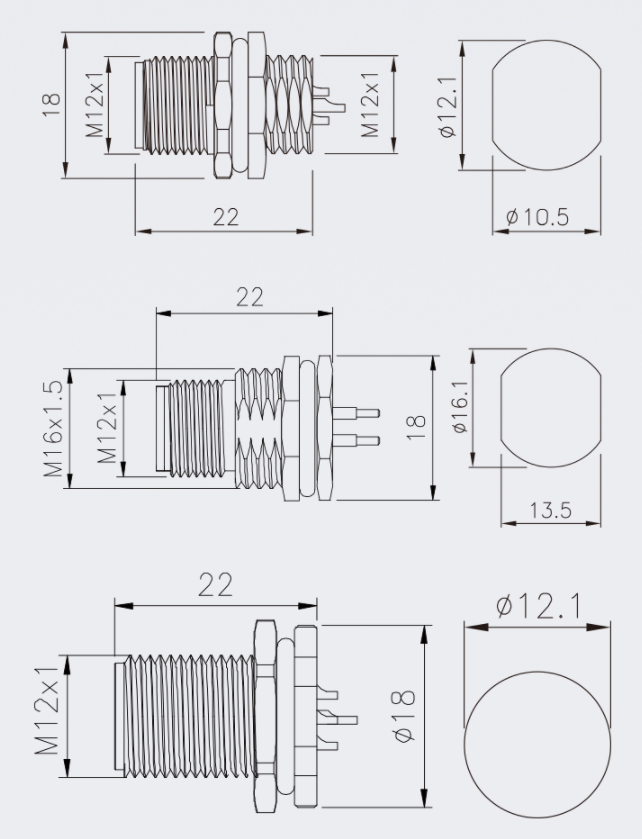

M12 panel drawings:
Product packaging
1.Each piece in one PE bag, then put in a small carton
2.OEM package is avaiable
3.According to customer requirement
Transportation
We can according to customer request choose different transport way,which more converence ,which we will choose!
Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,training shipping etc.
Company Profile
Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficience manufacturer.
We specialized in producing waterproof cables & waterproof connectors such as M8, M12, M16, M23, D-SUB.
Mainly applied in sensors, industrial equipments, transportation facilities, medical devices, LED displays,
outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on.
Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany, Netherlands,
British, Spain and Asian, Israel. Meanwhile, we have agents and customers all over the world and speaking highly of by our customers.
Our philosophy and purpose is: Customer Foremost, Service First. Quality first.
Warmly welcome you join in us, your support will be always our motivation.
Let's go forward hand in hand to create a brilliant future. Rigoal----Your Best Connection!

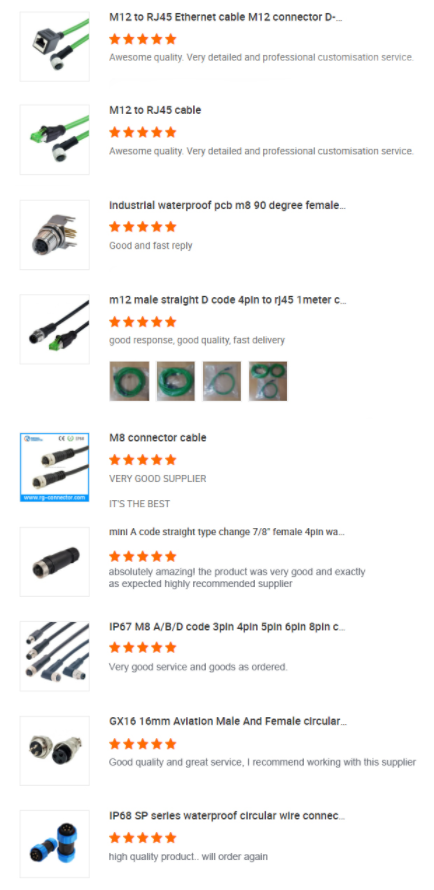

Customer feedback
Certification
FAQ
1. who are we?
We are based in Guangdong, China, start from 2020,sell to Northern Europe(18.00%),Central America(16.00%),North America(13.00%),Western Europe(12.00%),Southern Europe(12.00%),South America(10.00%),Eastern Asia(5.00%),Africa(3.00%),South Asia(3.00%),Eastern Europe(2.00%),Southeast Asia(2.00%),Oceania(2.00%),Mid East(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Waterproof connector,waterproof connector cable,power waterproof connector,LED waterproof connector,RJ45 waterproof connector
4. why should you buy from us not from other suppliers?
Rigoal has more than 12 years of manufacturing and trading experience,which is specialized in producing various power waterproof connectors
such as RJ45, K20 series,USB, D-SUB,and M12 series. Our products have obtained certifications of ISo9001,CE and IP68.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
|
