| Categories | Automation Connector |
|---|---|
| Brand Name: | Rigoal |
| Model Number: | M5 |
| Certification: | CE,Rohs |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Delivery Time: | 10-15 working days |
| Packaging Details: | PE bag and Cartons |
| Model type: | M5 molding connector |
| Poles: | 4P |
| Connector gender: | female to female |
| Rated Current: | 1A |
| Rated Voltage: | 60V |
| Application: | Automotive |
| Protection level: | IP67 or IP68 |
| Contact resistance: | ≤10mΩ |
| Oriental: | Right angle |
| Pollution degree: | III |
| Company Info. |
| Shenzhen Rigoal Connector Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
M5 4 Pin Male Straight Cable Connector Waterproof
Product description
Unique variety of housing designs
Flexibility, thanks to various numbers of positions from 3 to 19
positions
Simplified cabling, thanks to plastic-molded designs
Device connectors with lizt wire or round cables in size m5 is a
reliable alternative to permanent connections
Easy positioning, safe mounting, reliable seals and transmission.
Quick details
Wire gauge (AWG): 22AWG / 24AWG
Wire gauge (mm²): 0.34mm² / 0.25mm²
Jacket material: PVC
Ambient Temperature: -25°C ~ +85°C
| Insulation | ≥10 9Ω |
| Forward resistance | ≤5mΩ |
| Rated current | 1A |
| Rated voltage | 60V |
| Pollution degree | 3 |
| Temperature range | -40…80 ℃ |
| Mechanical operation | ≥100 |
| Maximum cable diameter | 3.8mm |
Material
| Pin contact | CuZn |
| Socket contact | CuSn |
| Contact plating | Au |
| Upper temperature | PA66(UL 94V-0) |
| Female insent | PA66(UL 94V-0) |
| Material of cable jacket | PVC or PUR |
| Screw | CuZn |
| Nut | CuZn |

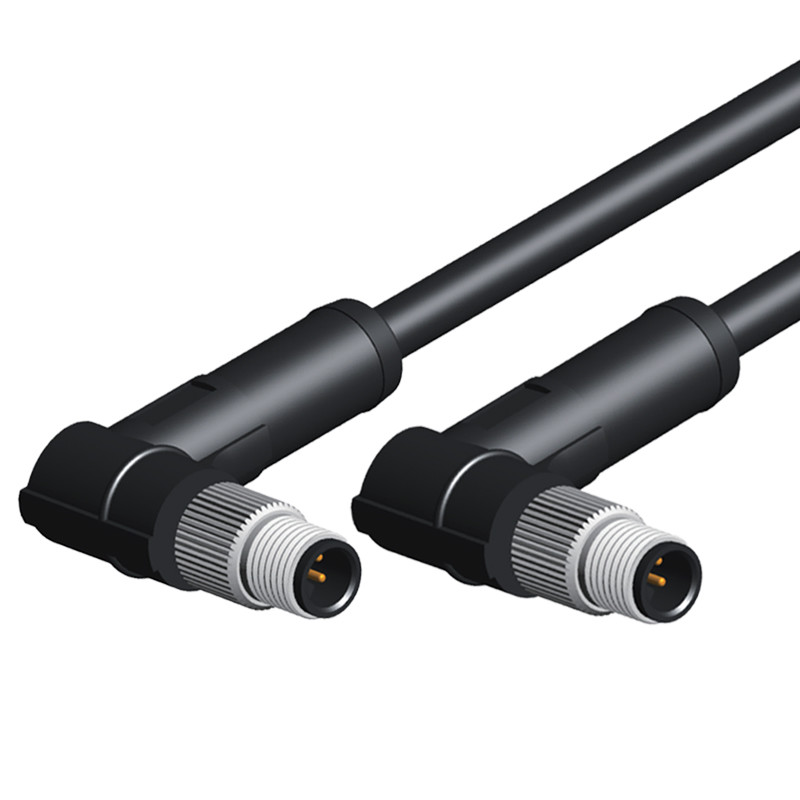

Product photos
Our service
1) Low cost but good quality in ip67 waterproof in locked condition
with ISO9001 management under efficient service
2) Provide free samples within 3 working days if it is normal
product with existing tooling
3) Effective communication and rapid response
4) Early design-in capability,OEM, ODM are available
5) Globalization, localization of operation and management
6) 7 years quality assurance.
|
