| Categories | Stone Polishing Machine |
|---|---|
| Brand Name: | StoneSawMachine.com |
| Model Number: | ZDMJ-20 |
| Certification: | CE,ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C, , T/T |
| Supply Ability: | 20 Sets Per Month |
| Delivery Time: | 30 days after deposit |
| Packaging Details: | Plastic FIlm |
| Voltage: | 380/220/415V,3ph |
| Weight: | 20ton |
| Use: | Granite |
| Condition: | New |
| Dimension(l*w*h): | 10500*2200*2200 |
| Type: | Stone Polishing Machine |
| Warranty: | One Year |
| Control system: | DSP(NC-studio control) |
| Product name: | Granite Polishing Machine |
| Color: | customized |
| Application: | Stone Industrial |
| Spindle: | 7.5kw |
| Name: | Stone Polishing Machine |
| Function: | automatic stone polishing machine |
| Keyword: | 20 heads stone polishing machine |
| Company Info. |
| Xiamen Sino Universal Machinery |
| View Contact Details |
| Product List |

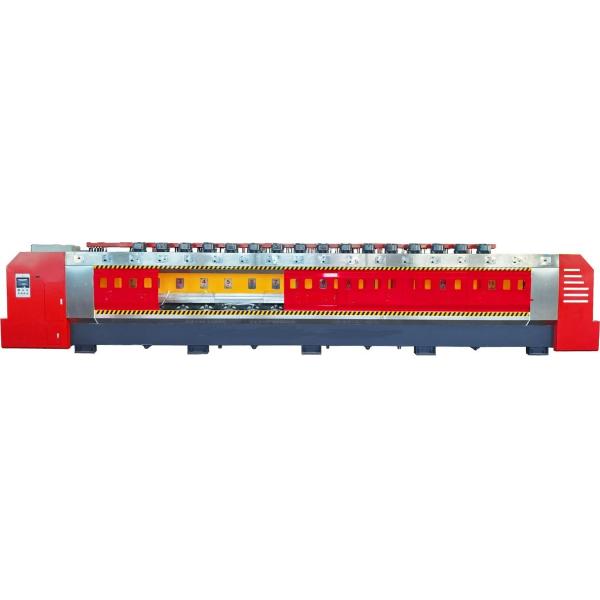

Fully Automatic Line Polisher,Granite Polishing machine

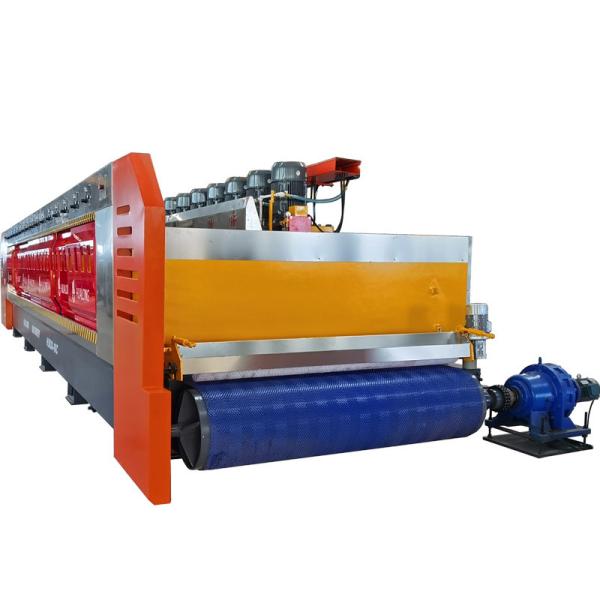

It is a line of machine include the slab loading table, disloading table , roller table, main polishing machine, air compressor, air tank, dryer and blower etc. it is popular for 12 heads, 16 heads and 20 heads. also 8 heads, 10 heards and 24 heads are available for iqnuiry.
| PMG16/800 High quality automatic granite stone polishing machine for slab tile line | |
| Features: | An automatic polishing machine for granite and marble. PLC control system and HMI simplify the operation. The speed of conveyor belt and bridge movement is controlled by inverter. The pressure of polishing head is adjustable for different stone materials. The useful working width can be preset in the computer. The Automatic identification System for detecting the shape of stone ensures that the lifting and descending of polishing heads are accurate, when matching slabs of different shapes. |
| Advantage: | 1. Good finishing with high speed. 2. Less abrasive cost. 3. Easy operation. Full automatic processing. 4. Simple installation and maintenance. |
| SPECIFICATIONS | ||||
| Model | LXM -12 | LXM-16 | LXM-20 | LXM -24 |
| Working Width mm | 500-1250 | 500-1250 | 500-1250 | 500-1250 |
| Thiickness | 15-50 | 15-50 | 15-50 | |
| Conveyor Speed | 0-2.6m/min | 0-2.6m/min | 0-2.6m/min | |
| Polishing Heads Number | 12 | 16 | 20 | 24 |
| Air Compressor | 14 m3/H | 19m3/H | 24 m3/H | 29m3/H |
| Main Motor Power | 9*7.5kw+3*9kw | 12*7.5kw+4*9kw | 16*7.5kw+4*9kw | 18*7.5kw+6*9kw |
| Total Power (Kw) | 105kw | 135kw | 162kw | 202kw |
| Dimensions (mm) | 6600*2200*2200 | 7900*2200*2200 | 9200*2200*2200 | 10500*2200*2200 |
|
