BIS341 High-Precision Tilt Switch Relay Switch

BIS341 Tilt switch High-precision

Introduction

The BIS341 series tilt switch products use high-precision MEMS accelerometers and 32-bit high-performance microprocessors as the core, built-in automatic compensation and filtering algorithms, to a large extent eliminate errors caused by environmental changes. The product has 4 sets of built-in alarm angles, and customers can select preset angles by pressing the button.

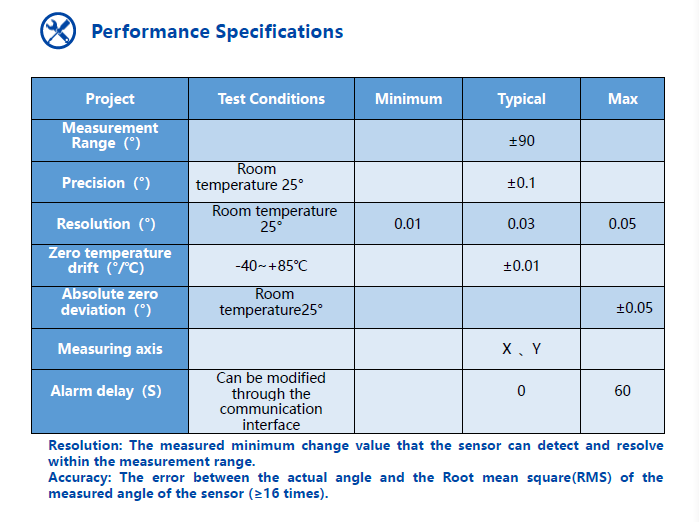

Performance Index

Application

● Crank arm lift

● Scissor lift
● Construction machinery

● Hydraulic lifting table
● Vehicle-mounted aerial work platform
● Self-propelled lifting platform

Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.

FAQ

Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.

Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?

Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.

Q4: How long is the warranty period?

A: One year.

Q5: Tilt switch-how to change alarm angle?

A: User-defined settings can be made on the Beiwei host computer with RS232-USB through the reserved RS232 wire harness.
