3D Drawing RoHs Powder Injection Molding Prototyping Anodized Surface

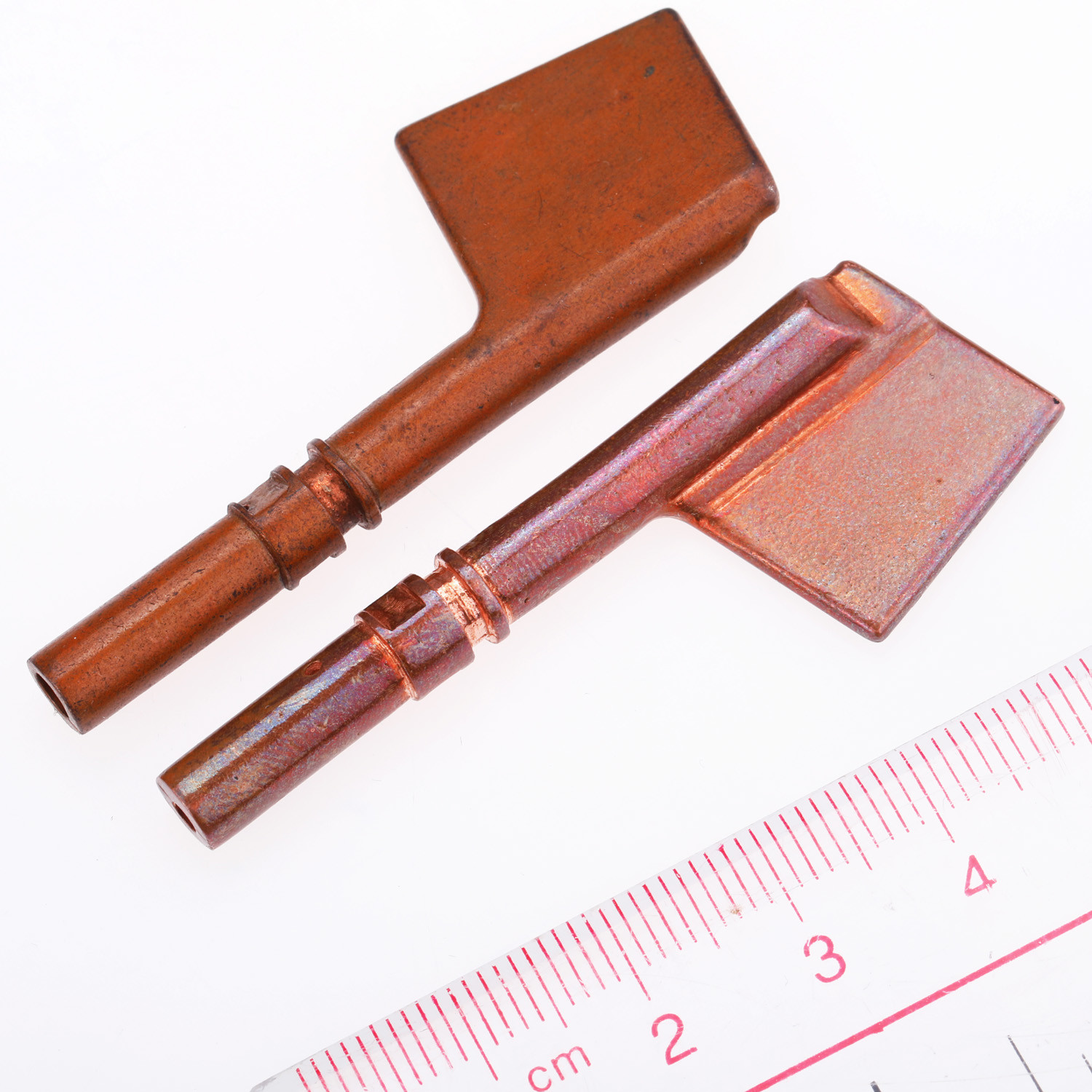

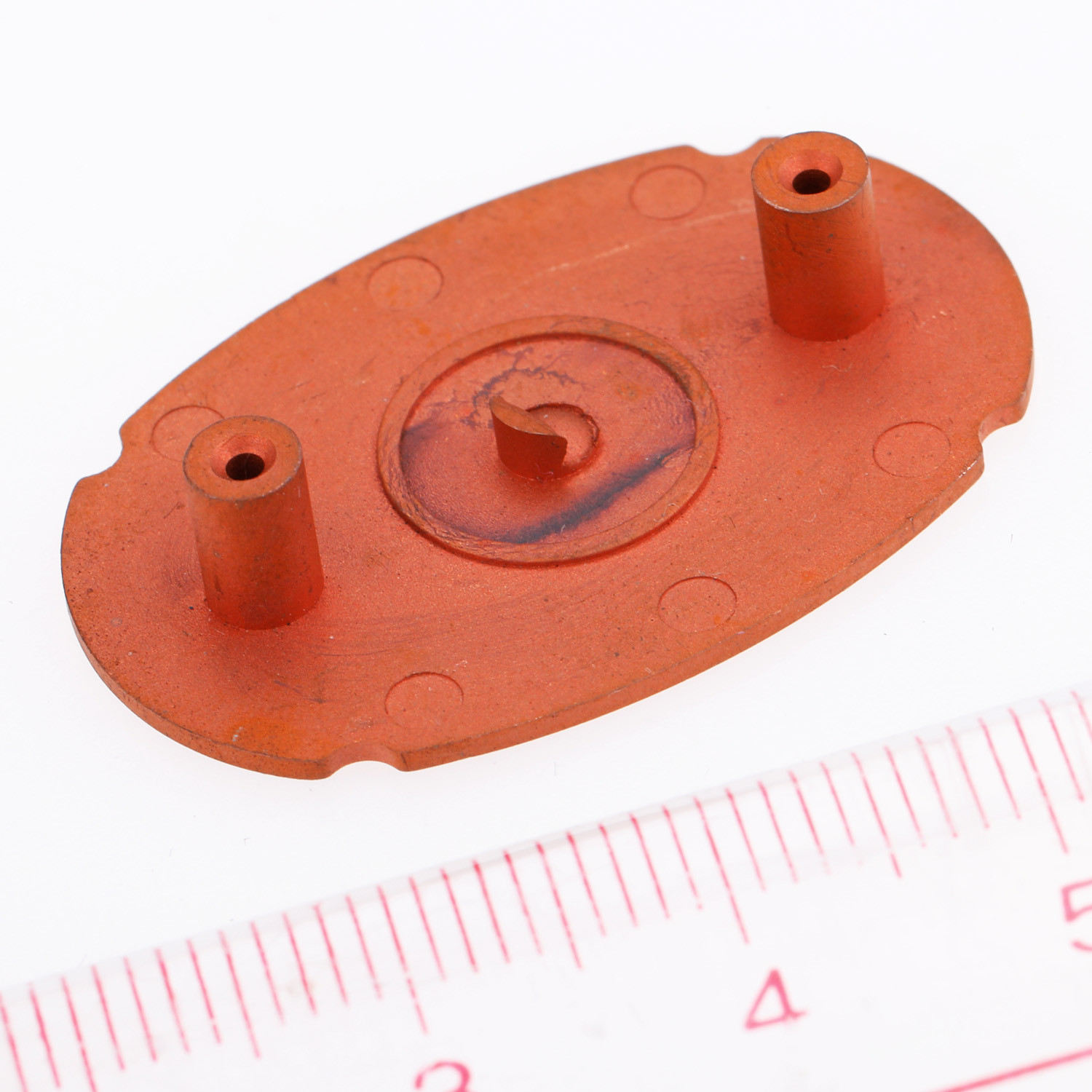

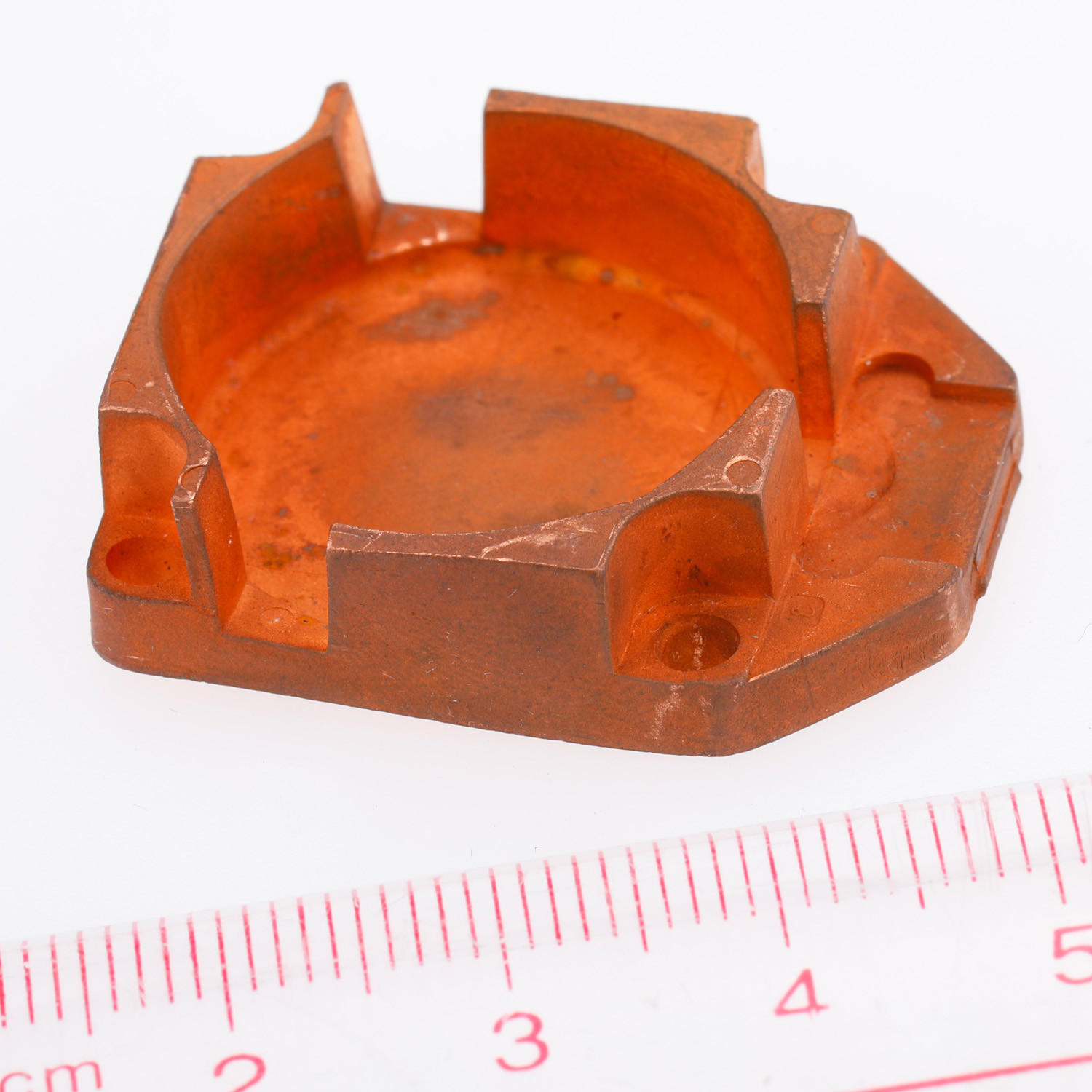

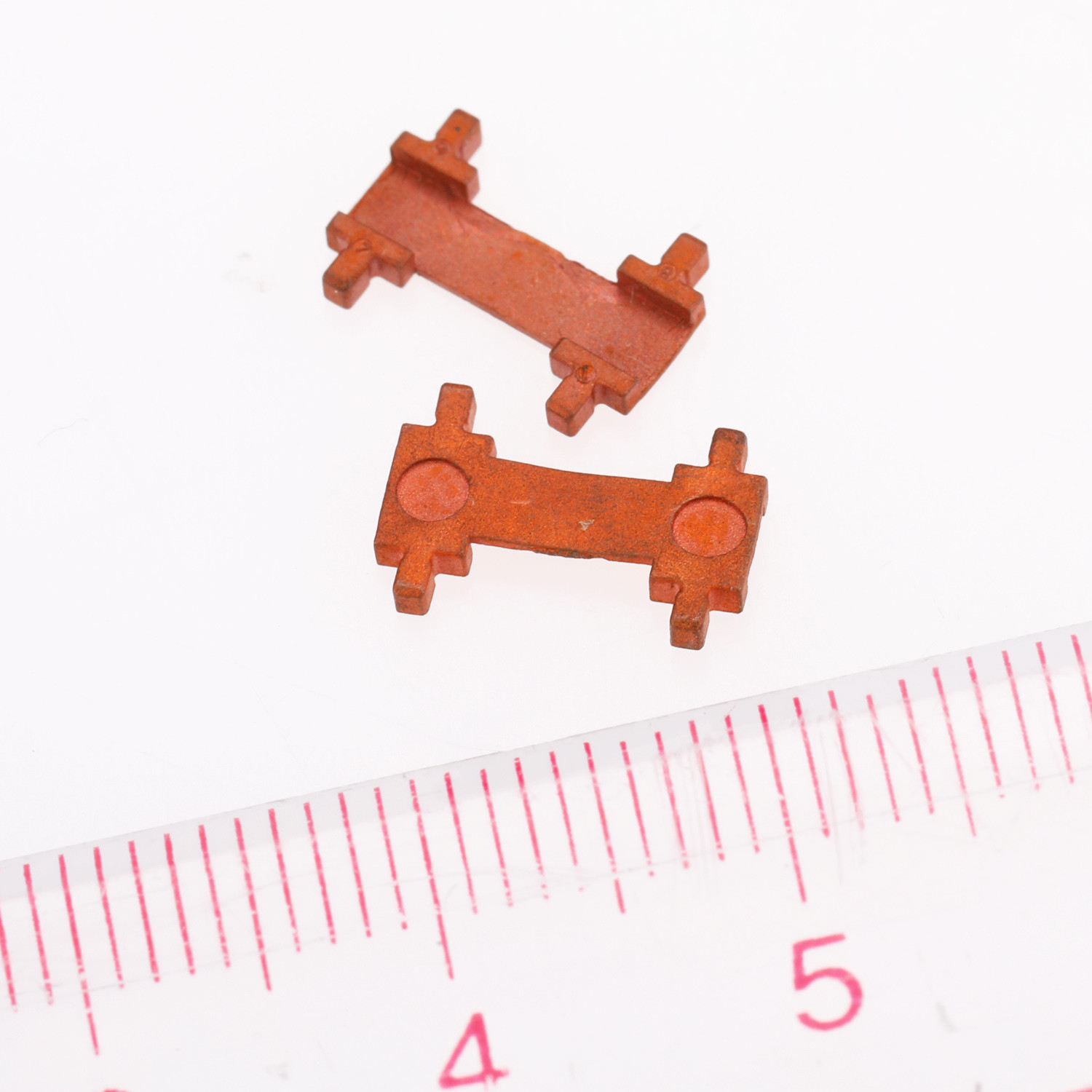

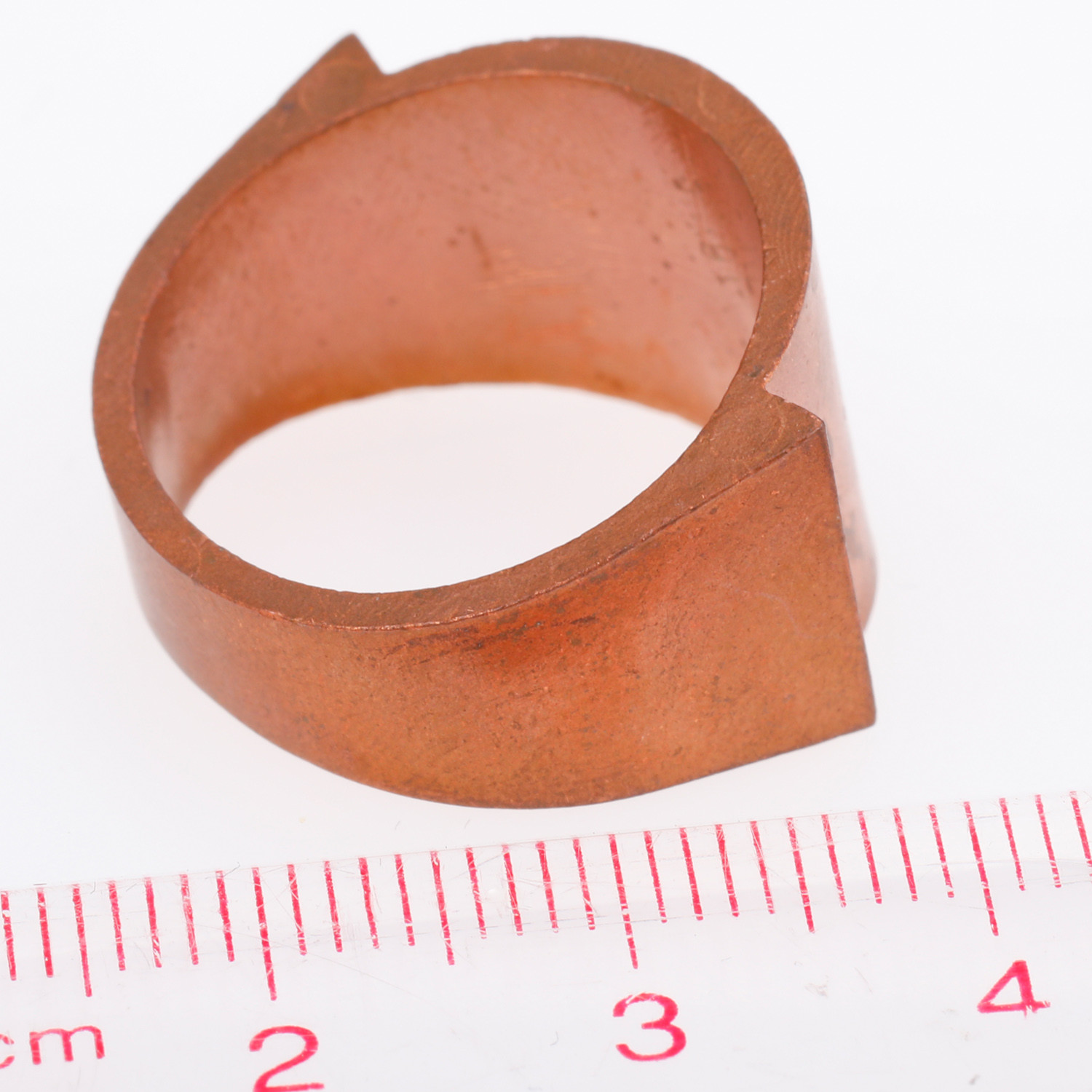

Powder Injection Molded Copper Part Custom Engineered Product.

About Metal injection molding (MIM):

It is a metalworking process in which finely-powdered metal is mixed with binder material to create a "feedstock" that is then shaped and solidified using injection molding. The molding process allows high volume, complex parts to be shaped in a single step. After molding, the part undergoes conditioning operations to remove the binder (debinding) and densify the powders. Finished products are small components used in many industries and applications.

Advantages:

• Allows the freedom to manufacture complicated shapes that would be considered cost prohibitive by other methods.
• Provides for the manufacture of micro-sized parts in high volumes.
• Achieves net shape features such as internal and external threads, profiled holes and finely detailed surface textures, knurling, engravings and markings.

Stainless Steel material powder metallurgy metal injection molding sintered parts MIM products.

How to work with us:
1. Send us 3D drawing (STEP/IGS/SolidWorks format etc. )
2. Specify the requirements (quantity, material, and surface finish requirements etc) to us via email.

Manufacturing range	MIM Metal Injection Molding
color	could be customized
Applicable Material	stainless steel/titanium/brass/copper etc.
Our advantage	1. Rich experience in metal injection molding field. 2. Small order accepted for the beginning 3. New material develop capability. 4. Top quality guaranteed by skilled workers, managing system and status of facilities. 5.100% quality inspection before delivery
Surface finsih	Natural machined color/anodized finish/ coating / Passivation / PVD finish/nickel white/brush/heat treatment/fine glass beads/grounding/tumbled finish etc.
Payment Terms	50% deposit before production and 50% balance before arranging to ship
