| Categories | Boiler Tube |
|---|---|
| Brand Name: | YUHONG |
| Model Number: | ASTM A192, ASME SA192 |
| Certification: | ISO9001-2008, API 5L, API 5CT |
| Place of Origin: | CHINA |
| MOQ: | 100KGS |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1500 tons per month |
| Delivery Time: | 7 DAYS |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Product Name: | Boiler Tube |
| Specification: | ASTM A192, ASME SA192 |
| O.D.: | 1/4",3/8",1/2",5/8",3/4",etc. |
| W.T.: | BWG 10,12,14,16,18,20,22,25 |
| Length: | Single Random, Double Random & Cut Length |
| Form: | Straight & U-bend & Finned & Coiled |
| Surface treatment: | Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting |
| Application: | High-Temperature Service Applications,Pressure Vessels |
| High Light: | ASTM A192 / ASME SA192 Carbon Steel Tube, Boiler Tube |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

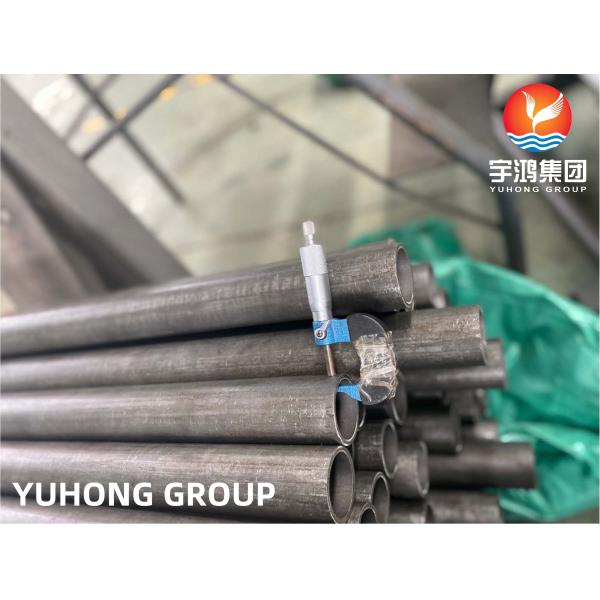

ASTM A192 / ASME SA192 Seamless Carbon Steel Boiler Tube Superheater Tube
ASTM A192 Seamless Steel Tube is applied as minimum-wall-thickness, seamless carbon steel boiler and superheater tubes for high-pressure service.
ASTM A192 High-Pressure Carbon Steel Boiler Tube Chemical Composition
| Grade | Chemical composition(%) | |||||
| C | Type | C | Si | Mn | P | S |
| ASTM A192 | S=Seamless | 0.06~0.18 | 0.25Max | 0.27~0.63 | 0.035Max | 0.035Max |
ASTM A192 Boiler Tube Mechanical Property
| Grade | Elongation % | Tensile Test MPa or N/mm2 | |
| A | Min Yield Strength | Tensile Strength | |
| ASTM A192 | =35 | =180 | =325 |
ASTM A192 steel tube for Boiler Hardness Requirement
| Brinell Hardness Number | Rockwell Hardness Number |
| (Tubes 0.200 in. [5.1 mm] and over in wall thickness) | (Tubes less than 0.200 in. [5.1 mm] in wall thickness) |
| 137 HB | 77 HRB |
Production Standard, Grade, Steel No
ASTM A178 Grade A, C, D
ASTM A179 Grade A, C, D
ASTM A192
ASTM A210 GradeA-1, C
BS3059-Ⅰ 320 CFS
BS3059-Ⅱ 360, 440, 243, 620-460, 622-490, S1, S2, TC1, TC2
EN10216-1 P195TR1/TR2, P235TR1/TR2, P265TR1/TR2
EN10216-2 P195GH, P235GH, P265GH, TC1, TC2
DIN17175 ST35.8, ST45.8
DIN1629 ST37.0, ST44.0, ST50.0
JIS G3454 STPG370, STPG410
JIS G3461 STB340, STB410, STB440
GB5310 20G, 15MoG, 12CrMoG, 12Cr2MoG, 15CrMoG, 12Cr1MoVG, 12Cr2MoWVTiB
GB9948 10, 20, 12CrMo, 15CMo
GB3087 10, 20
Delivery Condition:Annealed, Normalized, Normalized and Tempered
Inspection and Test
Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength,
Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test, Hydrostatic Test.
Surface treatment
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
| Tube Sizes for Heat Exchangers & Condensers & Boiler | |||||||||||
| Outside Diameter | BWG | ||||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||||
| Wall Thickness mm | |||||||||||
| 0.508 | 0.71 | 0.89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||||
| mm | inch | Weight kg/m | |||||||||
| 6.35 | 1/4 | 0.081 | 0.109 | 0.133 | 0.174 | 0.212 | |||||
| 9.53 | 3/8 | 0.126 | 0.157 | 0.193 | 0.257 | 0.356 | 0.429 | ||||
| 12.7 | 1/2 | 0.214 | 0.263 | 0.356 | 0.457 | 0.612 | 0.754 | ||||
| 15.88 | 5/8 | 0.271 | 0.334 | 0.455 | 0.588 | 0.796 | 0.995 | ||||
| 19.05 | 3/4 | 0.327 | 0.405 | 0.553 | 0.729 | 0.895 | 1.236 | ||||
| 25.4 | 1 | 0.44 | 0.546 | 0.75 | 0.981 | 1.234 | 1.574 | 2.05 | |||
| 31.75 | 1 1/4 | 0.554 | 0.688 | 0.947 | 1.244 | 1.574 | 2.014 | 2.641 | |||
| 38.1 | 1 1/2 | 0.667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |||
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||||
| Form of Tube: Straight & U-bend & Finned & Coiled | |||||||||||
| Stainless Steel Tube: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81. | |||||||||||
| Carbon &Alloy Steel Tube: A/SA178, A/SA179, A/SA192,A/SA209, A/SA210, A/SA213, A.SA214 | |||||||||||
Application: For High-Temperature Service Applications,Pressure Vessels, boiler and pressure purpose.
|
