Bauer Style Hard Interlock Kelly Bar For Rock Foundation Bottom Pipe Rig

Categories	Drilling Kelly Bar
Brand Name:	JTHL
Model Number:	Kelly bar Bauer
Certification:	ISO9001
Place of Origin:	China
MOQ:	1
Price:	17000$~40000$
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100set /month
Delivery Time:	7 days
Packaging Details:	customer
Warranty:	1 Year
Material:	Q345B,35CrMo,27SiMn,16Mn for drilling bit; 16Mn/35CrMo for kelly bar; Q235 for tremie pipe,Alloy steel
Color:	Customized,Yellow or customized
After-sales service provided:	Video technical support,Online support,Engineers available to service machinery overseas,Field maintenance and repair service,Field installation
Product name:	Bauer style hard interlock kelly bar for rock foundation bottom pipe rig
Application:	Bauer Sany XCMG Rotary Drilling Rig
Type:	or Customerized
Condition:	100%new
Name:	Kelly Bar
Drilling depth:	20-120m
Processing type:	Hot treatment and forging
Pressure form:	Interlocking
Weight:	45
Usage:	construction machine parts,rotary drilling rig
Tube material:	Alloy seamless steel tube
Machine type:	for foundation construction rotary drilling rig,Piling

Contact Now

Add to Cart

Company Info.

Beijing Jietaihongli Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Bauer Style Hard Interlock Kelly Bar For Rock Foundation Bottom Pipe Rig

Specification

No.	Diammeter of The First Section	Sections			Key Pressure Type	Length of per section(m)	Drill depth	Torque(KN.M)
1	¢299	3			Interlocking	9-12	24-45	100 -120
2	¢342	3	4		Interlocking	9 - 12	24-45	100 -120
3	¢355	3	4		Interlocking	9 - 14	24 - 56	100-120
4	¢368	3	4		Interlocking	9 - 14	24 - 56	150-180
5	¢377	3	4		Interlocking	9 - 14	24 - 56	150-180
6	¢394	3	4		Interlocking	9 - 15	24 - 58	180-200
7	¢406	3	4		Interlocking	9 - 15	24 - 58	180-200
8	¢419	3	4		Interlocking	9 - 15	24 - 58	200-230
9	¢440(445)	3	4		Interlocking	9 - 15	24 – 58	220-260
10	¢470 (482)	3	4		Interlocking	9 - 16	24 – 60	220-260
11	¢508	3	4		Interlocking	9 – 18	24 – 68	260-360
12	¢530 (540)	3	4	5	Interlocking	9 – 20	32 – 92	320-400
13	¢580 (575)	3	4	5	Interlocking	9 – 20	32 – 92	360-420
14	¢630	3	4	5	Interlocking	9 - 22	32 - 102	400-500

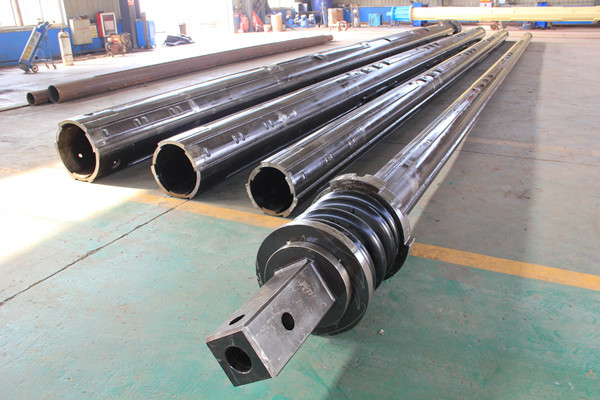

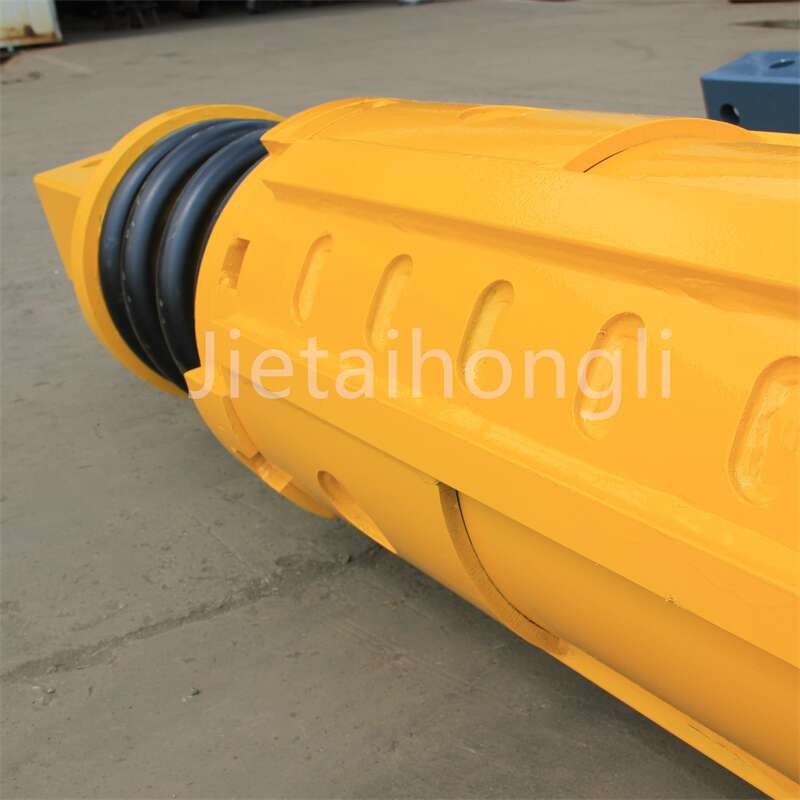

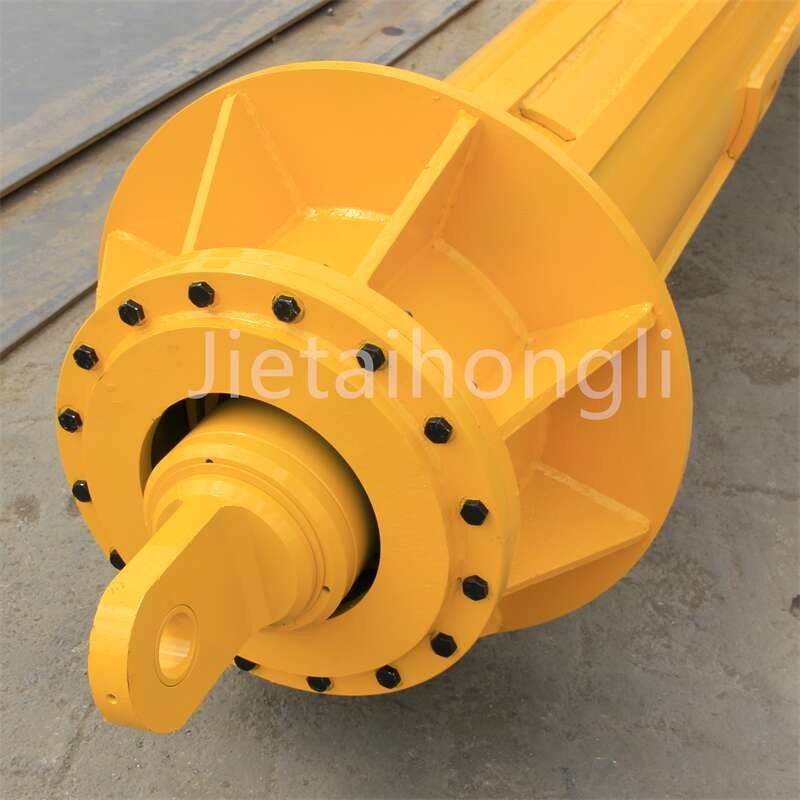

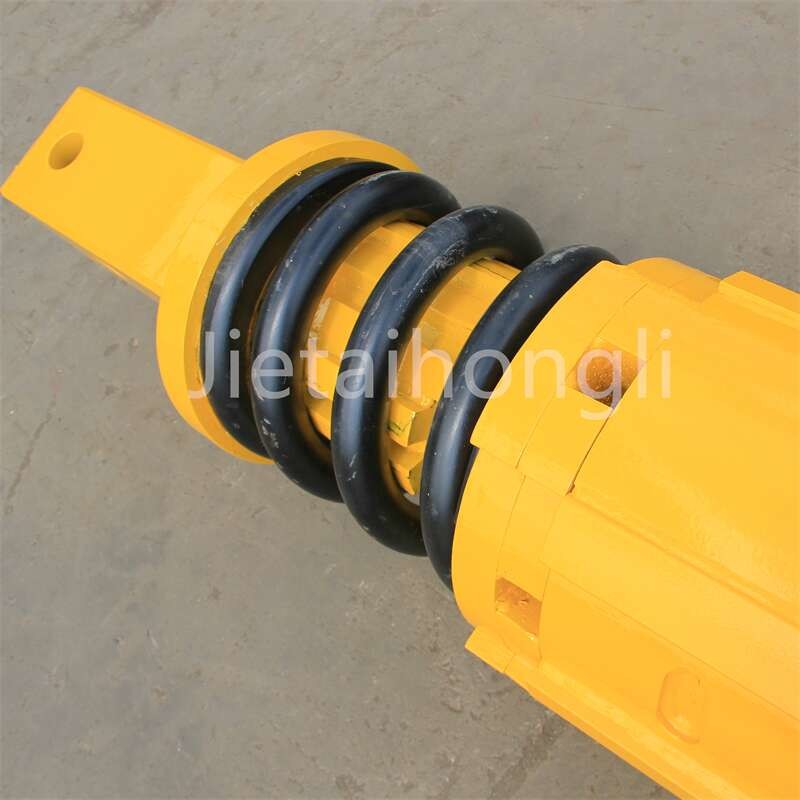

Bauer style hard interlock kelly bar for rock foundation bottom pipe rig

Interlock Kelly bar adopts the international advanced six-ribs
distribution technology. The inner keyboards and outer keyboards
are manufactured from overall forging and pressing high-tensile
steel. The special heat treatment makes this style Kelly bar with
high abrasion resistance, compression resistance, and excellent
welding property. Kelly bar is based on domestic rig configuration
and condition demand, combined with the home and abroad advanced
manufacture technology, supporting domestic and foreign rotary
piling rig.
