| Categories | Drilling Kelly Bar |
|---|---|
| Brand Name: | JTHL |
| Model Number: | Kelly bar SANY |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | 17000$~40000$ |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100set /month |
| Delivery Time: | 7 days |
| Packaging Details: | customer |
| Warranty: | 1 Year |
| Material: | Q345B,35CrMo,27SiMn,16Mn for drilling bit; 16Mn/35CrMo for kelly bar; Q235 for tremie pipe,Alloy steel |
| After-sales service provided: | Video technical support,Online support,Engineers available to service machinery overseas,Field maintenance and repair service,Field installation |
| Product name: | Interlocking kelly bar for sany rotary drilling rig |
| Application: | Bauer Sany XCMG Rotary Drilling Rig |
| Condition: | 100%new |
| Name: | Interlocking kelly bar for sany rotary drilling rig |
| Drilling depth: | 20-120m |
| Processing type: | Hot treatment and forging |
| Pressure form: | Interlocking |
| Usage: | construction machine parts,rotary drilling rig |
| Company Info. |
| Beijing Jietaihongli Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Kelly bar is the key part of a drilling machine, and its quality directly affects the performance of the whole machine. Based on the rich manufacturing experience and by absorbing the advanced technology both at home and abroad,

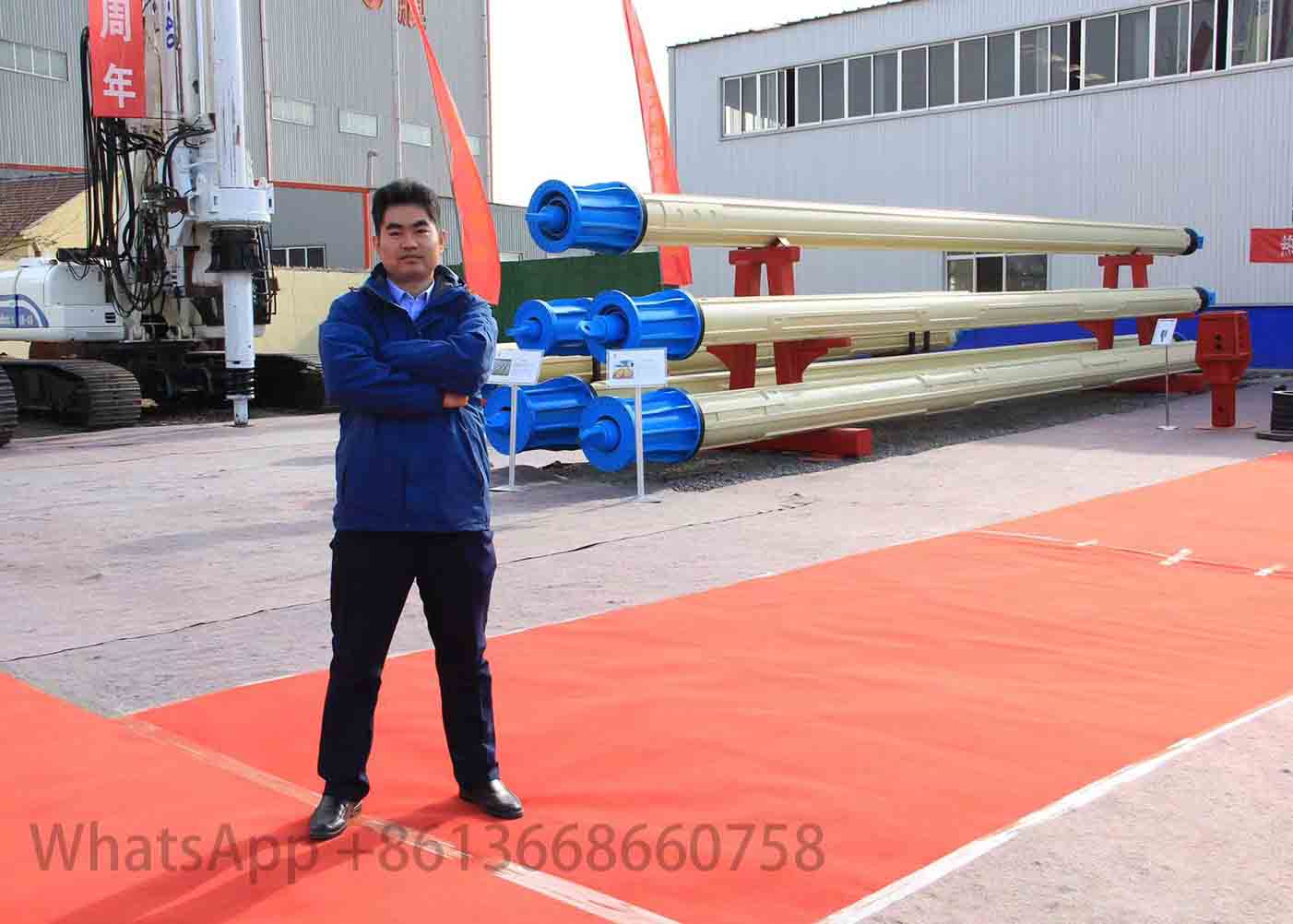

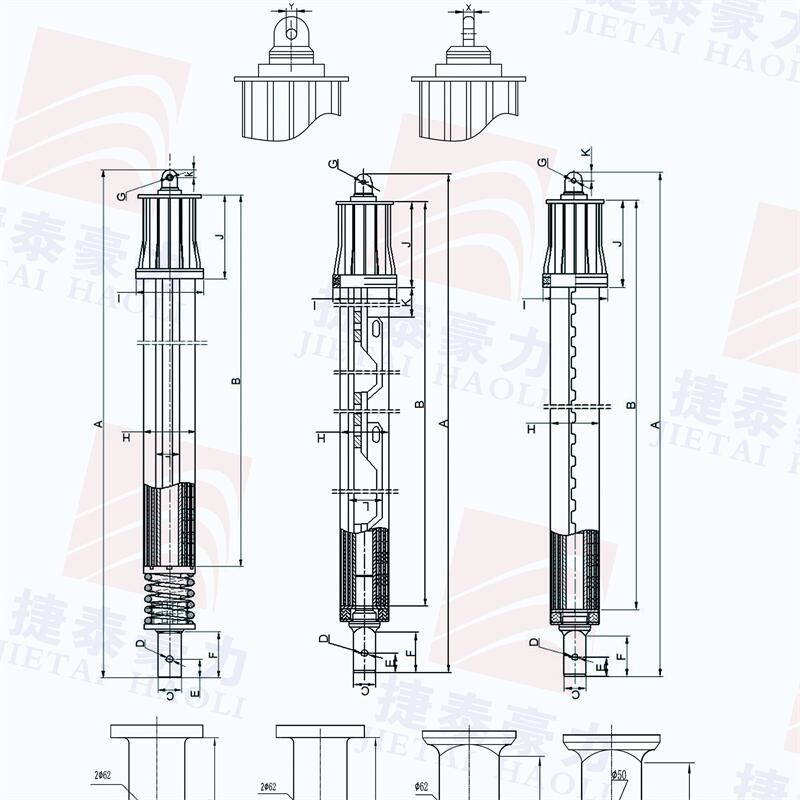

We have 2 types kelly bar, interlocking kelly bar and frictional kelly bar. The kelly bar length depends on the actual needs of customers or the drilling machines' parameters.
FRICTION KELLY BAR TECHNICAL DATE:
| FRICTION KELLY BAR | |||||
| O.D.(mm) | Sections | Length(m) | Depth(m) | Depth(m) | Capable of supporting models |
| 299 | 3,4,5 | 9~14 | 24~65 | 120 | BAUER, SOILMEC, CMV, IMT, CASAGRANDEN LIEBHERR, MAIT SANY, LOVOL, ASAINT JOVE, SUNWARD, YUTONG ZOOMLION, JINTAI |
| 340 | 3,4,5 | 9~14 | 24~65 | 120 | |
| 355 | 3,4,5 | 9~14 | 24~65 | 130 | |
| 377(368) | 3,4,5 | 9~14 | 24~65 | 150 | |
| 406(394) | 3,4,5 | 9~14 | 24~70 | 200 | |
| 426(419) | 3,4,5 | 9~15 | 24~70 | 220 | |
| 440 | 3,4,5,6 | 9~15 | 24~85 | 250 | |
| 470 | 3,4,5,6 | 9~16.5 | 24~91 | 250 | |
| 508 | 3,4,5,6 | 9~18 | 24~103 | 280 | |
| 530 | 3,4,5,6 | 9~20 | 24~114 | 300 | |
| 580(575) | 3,4,5,6 | 9~24 | 24~138 | 400 | |
| 630 | 3,4,5,6 | 9~26 | 24~150 | 480 | |
