| Categories | MEMS Gyroscope Sensor |
|---|---|
| Certification: | ISO |
| Place of Origin: | Guangdong, China |
| Brand Name: | RION |
| Model Number: | TL725D |
| Packaging Details: | carton |
| Supply Ability: | 3000 Piece/Pieces per Month angular sensor to be sold |
| Price: | $60.00/Pieces >=1 Pieces |
| MOQ: | 1 |
| Payment Terms: | T/T, Paypal |
| Delivery Time: | 7 days for samples |
| Grade: | Industrial |
| Warranty: | 1years |
| Customized support: | OEM |
| angular sensor resolution: | 0.01° |
| Measuring Range: | Azimuth Angle (±180 °) |
| Acquisition bandwidth: | >100 Hz |
| Azimuth accuracy: | <0.1°/min |
| Max angle rate: | ≥300 °/s |
| Working Temp.: | -40 ~ +85 ℃ |
| Storage Temp.: | -40 ~ +85 ℃ |
| Vibration: | 5g~10g |
| Working life: | 10 years |
| Anti-vibration: | 10grms,10~1000Hz |
| Port: | Shenzhen |
| Company Info. |
| Shenzhen Rion Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

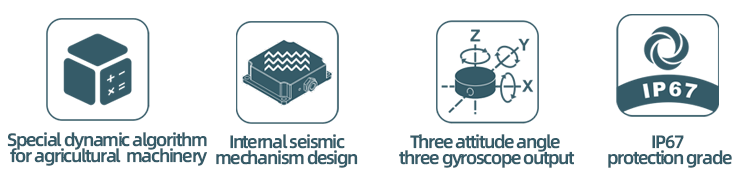

▶ FEATURE
★ Horizontal azimuth and attitude angle output ★ Real-time angular rate output
★ Long life and strong stability ★ Forward axis acceleration
★ Compact and lightweight design ★ RS232/RS485 output optional
★ All solid state ★ Light weight ★ DC9~36V power supply
▶APPLICATION
★ Automated agricultural machinery ★ Precision agriculture
★ Combination Harvesters ★ Farming machine

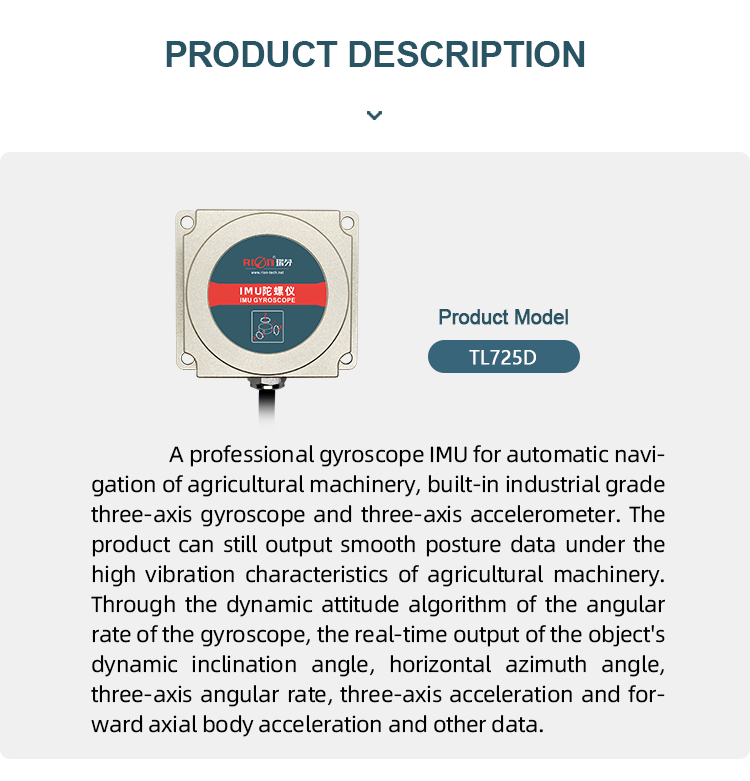

▶ PRODUCT DESCRIPTION

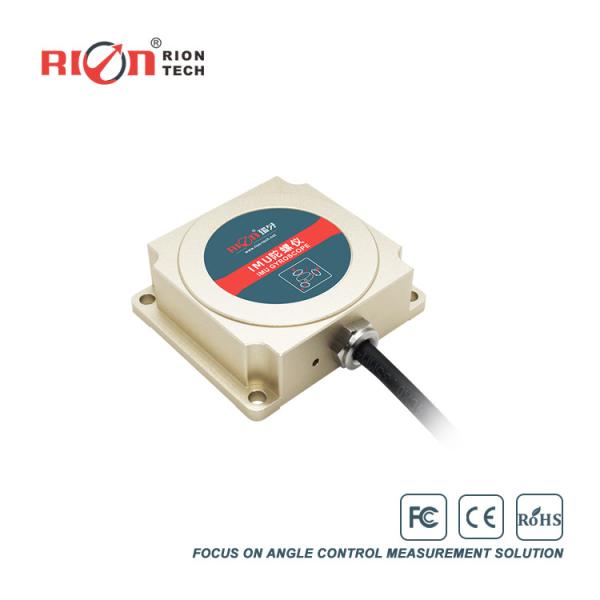

TL725D is a gyroscope IMU specialized in navigation applications for agricultural machinery automatic driving, with built-in industrial grade three-axis gyroscope and three-axis accelerometer. The product can still output smooth posture data under the high vibration characteristics of agricultural machinery. Developed based on the company's latest MEMS inertial measurement platform, through the dynamic attitude algorithm of the angular rate of the gyroscope, the real-time output of the object's dynamic inclination angle, horizontal azimuth angle, three-axis angular rate, three-axis acceleration and forward axial body acceleration data . This product is specially used for automated agricultural machinery, precise operation and efficiency, and is an essential component of a new generation of automated precision agricultural control.
| TL725D | PARAMETERS | |
| Three-axis attitude | Azimuth ±180°,Roll angle±180°,Pitch angle±90 | |
| Bandwidth | >100Hz | |
| Resolution | 0.01° | |
| Nonlinear | 0.1% of FS | |
| Gyro Range | 300°/s | |
| Zero bias instability of gyro (allan) | 4.0°/h | |
| Angle random walk coefficient (allan) | 0.25 °/sqrt(h) | |
| Accelerometer range | ±4g | |
| Acceleration resolution | 0.001g | |
| Acceleration accuracy | 1mg | |
| Startup time | 250ms | |
| Input voltage | +9~36V | |
| Current | 35mA(12V) | |
| Working temp | -40 ~ +80℃ | |
| Storage temp | -40 ~ +85℃ | |
| Vibration | 5g~10g | |
| Shock | 200g pk,2ms,½sine | |
| Working life | 10 Year | |
| Output frequency | 5Hz / 15Hz / 25Hz / 35Hz / 50Hz / 100Hz Settable | |

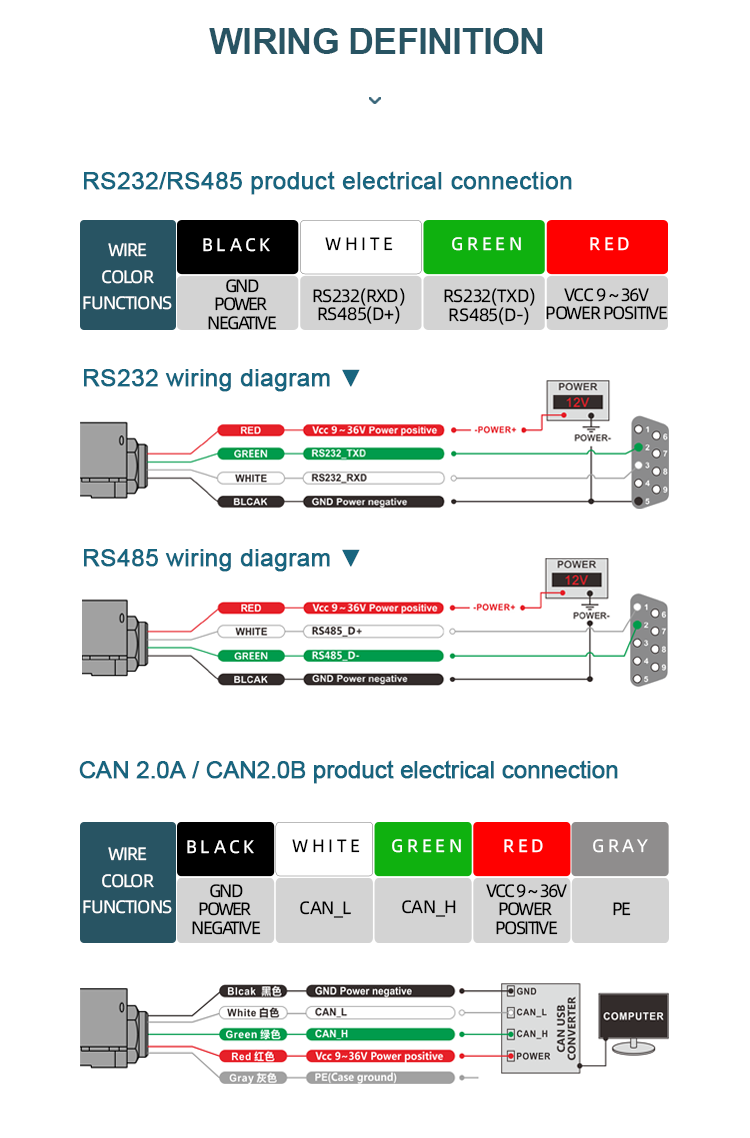

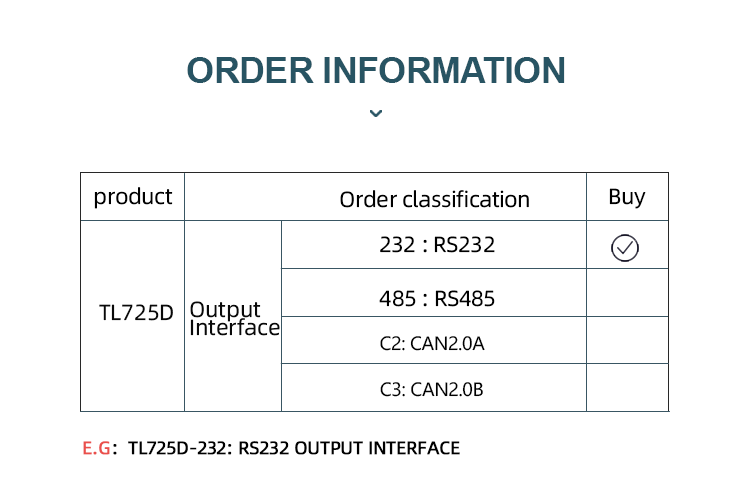

| Output signal | RS232 / RS485 / (Optional) | |
| MTBF | ≥50000 Hours/times | |
| Insulation resistance | ≥100MΩ | |
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) | |
| Anti-vibration | 10grms,10～1000Hz | |
| Protection grade | IP67 | |
| Cable | Standard 1 m 4 pin shield wire | |
| Weight | 140g(without cable) | |
A: Usually we have stock for every type of products, if the product that you selected we have in stock, then we only need to re-test it before leaving the factory, so the delivery time is around 2~4 days; if we don’t have them in stock, then we need to arrange the production, the delivery time will be around 2 weeks. For the customer-oriented design products, our engineers will give the approximate delivery time according to the technical requirements.
A: we accept 40% prepayment in advance, and the balance 60% payment before the delivery. For the customer-oriented design product, the payment will be discussed together.
A: Our products have passed very strict tests before delivery, so it is very low probability to have quality problem. If our products have quality problem (not caused by man-made factors) in the warranty period, our factory will arrange the free repair. If the product can’t repair well, we will arrange to provide a new one. If the product is out of warranty time, we will provide the repair only charging the material cost.
|
