| Categories | Tanks Trucks And Trailers |
|---|---|
| Brand Name: | CLW |
| Model Number: | CLW2021060726 |
| Certification: | ISO9001, CCC, BV, SGS |
| Place of Origin: | SUIZHOU, HUBEI, CHINA |
| MOQ: | 1 unit |
| Price: | Negotiated |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 units per month |
| Delivery Time: | 30-35 days after receiving the deposit |
| Packaging Details: | Naked or waxed before shipment |
| Tanker material: | Carbon Steel, Stainless Steel, Aluminum Alloy |
| Axle: | FUWA, BPW, L1, HJ brand |
| Axle loading: | 13tons, or 16tons |
| Oil Tanker: | 45M3, 45 cubic meters, 45000 LITERS |
| Compartment: | 2 3 4 5 6 compartments |
| Front axle: | 13 tons, or 16 tons, Front axle liftable |
| Suspension: | Heavy Duty German Type mechenical suspension. |
| Transport: | Fuel, oil, Diesel, Gasoline, Petrol, JET A1 |
| Equipment: | 3 axle, Front Suspension with air bag |
| Tank Capacity: | 40M3 45M3 46M3 48M3 50M3 55M3 60M3 |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Tri Axle 45000L 45CBM Oil Tanker Carbon Steel Jet A1 Transport Tank Semi Trailer With Epoxy Coated Inside
Description:
** Tank material could be carbon steel, stainless steel,
alluminum...
** It can be divided into many compartments to load different types
of fuels.
** BPW axles, JOST kingpin, JOST landing gears, Air suspension,
ABS.
** Heat preservation of rock cotton or polyurethane foaming,
Heating system.
** Bottom loading system can be equipped: API connections,
over-fill detection system , vapor recovery vent, vapor recovery
adaptors & dust cap, pneumatic control, bottom emergent valve...
** Tube or tubeless tyres, off-road single tyre for bad roads.
1. Purpose: It used for transporting all kinds of chemical liquid
such as diesel and gasoline etc.
2. Main parts: Axle, Bottom valve, pipeline and liquid line.
3. Tank material for optional: Carbon steel, Stainless steel 304,
Stainless steel 316, Stainless steel 316L and Aluminium alloyetc.
4. Available tank volume: 38CBM - 60CBM/2 Axles/3 Axles/4 Axles
5. Axle brand: China famous brand FUWA/China brand L1/Germany brand
BPW.
product Specification
| Main Dimensions | ||
| Overall Length | Approx.11800mm | |
| Overall Width | 2500mm | |
| Overall Height | Approx.3650mm | |
| Tare Weight | Approximate 10500KGS | |
| Loading Capacity | 45m3 | |
| Tank Body | ||
| Shape | Mono block Cylinder | |
| Total Volume(m3) | 45CBM | |
| Tanker Body Material | 5mm Carbon Steel Q235 | |
| End plate | 6mm Carbon Steel Q235 | |
| Lifting Ladder | Including Top walkway and backside steel material | |
| Manhole cover | 4 sets Aluminum alloy API manhole cover , ∮500mm , with breather valves and anti-Spillage valves | |
| Bottom Valve | 4 sets, DN100 Pneumatic Bottom Valve, Pneumatic control for each compartment | |

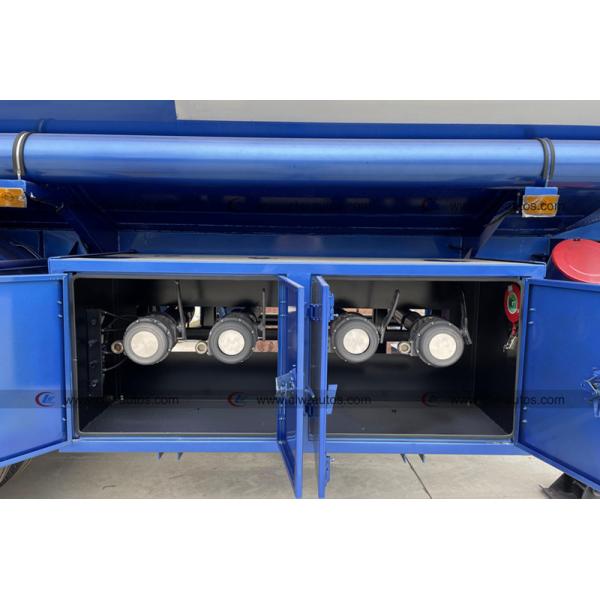

| Discharging valve | 4 sets DN100 API discharging valves | |
| No.of Compartment | No. Of 4 | |
| Discharging Pipe | 4”rubber hose | |
| Chassis | ||
| Main Beams | Special design I beam, Steel Saddle support 8 No’s each side. | |
| Axle | 3 axles | |
| BPW brand 13 Ton | ||
| Landing Gear | JOST brand | |
| King Pin | JOST Brand 2’’ or 3.5” bolt-in king pin;interchangeable. | |
| Suspension | Full set of heavy duty leaf spring type | |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |
| Tire | 385/65R22.5 tubeless Single Tri-angle Brand tire with one spare tire, 7 pieces | |
| TOTAL standard Lighting system | 1. Electrical wires: Placed in leak tight sheathes,neither bare wire nor split sheathes 2. Back lights:Inserted inside rear bumpers and protected. 3. Stop light:Additional LED stop lighting. 4. Lighting repeaters:Turn,reverse and stop lights must be repeated on top left and right sides. 5. Indicator: In the rear side. | |
| Other TOTAL Design and parts | 1. Dust Board to Cover the Tires 2. Rear Ladder to access the top of the tanker. Well secured,with angle,not vertical,linked to mechanism for automatic handrail lifting. 3. Walkway with fold-able handrail. (air operated)
| |
Warranty
1. One year free warranty for major 3 components of our trucks:
engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's
country to assist the installation and operation when quantity
reaches 20 units.
3. Transportation warranty: our company offers transportation
insurance for customer to ensure the products arriving at
destination safely.
Our service
Before purchasing:
After purchasing:
After-sales service:
1- English Operation Video
2- Free operation and technical train at factory but not include
accommodation
3- Spare parts supplied at factory price whenever needed.
4- Engineers can be sent to your country and offer local
engineering support and train.
|
