IEC 60529 IPX9 High Pressure Water Jet Testing Equipment 512L

IEC 60529 IPX9K High Pressure Water Jet Testing Equipment 512L

Product introduction

Standard:IEC 60529:1989 + A1:1999 + A2:2013 Clause 14.2.9, DIN40050-9, ISO20653 IP degrees of protection provided by enclosures for the electrical equipment in road vehicles for protecting the electrical equipment inside the enclosure against the effects of the ingress of solid foreign objects, including dust (protection against foreign objects), protecting the electrical equipment inside the enclosure against the effects of the ingress of water (protection against water).

Application:It is used to inspect the enclosures of the electrical equipment (IP supplementary code test), and it is applicable for waterproof testing of the electrical and auto parts under high temperature and high pressure.

Test sample:Products should pass IPX9 degrees waterproof test, such as automotive and motorcycle parts, electrical and electronic industries.

Structure Features:

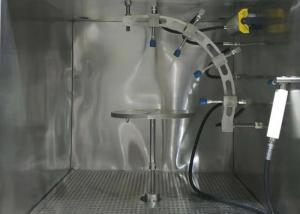

Outside enclosure is made of sprayed high quality steel plate and inner chamber is made of SUS304 stainless steel, the upper part of the test chamber is for testing and the control, the lower part of the test chamber consists of imported Italian high-pressure pump and solenoid valve, constant temperature and backwater tanks (SUS304 stainless steel), turntable motor (Panasonic motor) and deceleration transmission mechanism.
All control settings, water temperature, nozzle control, pressure, time, flow requirements can be controlled by PLC and set on 7 " touch screen.

Technical Parameters:
