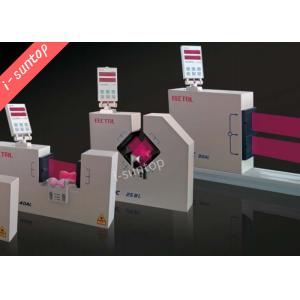

AC240V Laser Diameter Guage Cable Manufacturing Equipment Cable Extrusion Line

Categories Wire Cable Making Machine
Brand Name: I-suntop
Model Number: GF-25AL
Certification: SGS
Place of Origin: China
MOQ: 1set
Price: By negotiation
Payment Terms: L/C,T/T
Supply Ability: Up to different machine
Delivery Time: Min.30working days
Packaging Details: Plastic film+wooden box
Type: Laser Distance Measuring Instrument
Material: Stainless Steel
Application: daimeter test
Usage: pipe and wire,tube
Warranty: 1year
Voltage: 100-240V AC 50/60Hz
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

AC240V Laser Diameter Guage Cable Manufacturing Equipment Cable Extrusion Line

Laser Diameter Guage-Wire And Cable Extrusion Equipment Accessories


i-suntop Electric wire and cable equipments2022022...

1. Application for Wire And Cable Laser Diameter Guage

It is suitable for hard and inelastic surface or uneven cable printing, network line, optical cable, nylon hose, etc., the text on the printing wheel will be transferred to the surface of the silicone wheel, and then transferred to the surface of the printed material through the silica wheel.

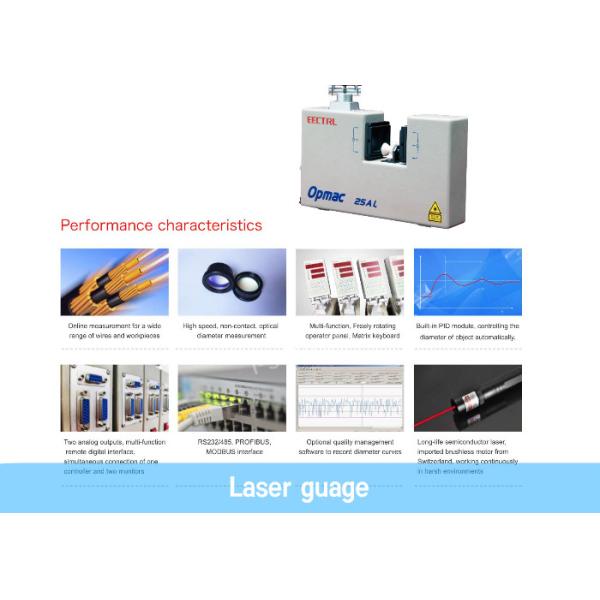

2. Features for Wire And Cable Laser Diameter Guage

A. Suitable for online measurement of various type of
wire, cable, tube and pipee;
B. Using F optical lenses to avoid the aect of shaking of the
object;
C. Multi-function and free rotation operation panel;
D. Built-in PID module, controlling the diameter of the
object automatically;
E. Two analog output, multiple remote interfaces which
can connect to one controller and two displayers at
the same time;
F. RS232/485, PROFIBUS DP and MODBUS interface;
G. Optional quality management software, real-time
recording the diameter of the object;
H. Adapting to severe environment.

3. Mian Paramters for Laser Diameter Guage

Specififactions
ModelMeasuring MethodRangeResolutionAccuracyDimensionPackaging DimensionWeight
Opmac-5AL3Single0.03-5mm0.001±1μm ± 0.008%×XZ200*90*90mm535*200*355mm8.5kg
Opmac-5AL4Single0.03-5mm0.0001±0.4μm ± 0.008%×XZ200*90*90mm535*200*355mm8.5kg
Opmac-25AL3Single0.1-25mm0.001±1μm ± 0.008%×XZ290*62*316mm624*224*494mm10.3kg
Opmac-40AL3Single1-40mm0.001±1.5μm ± 0.008%×XZ400*105*344mm754*239*549mm13.5kg
Opmac-50AL3Single1-50mm0.001±1.5μm ± 0.008%×XZ500*105*355mm715*215*575mm15.5kg
Opmac-70AL2Single1-70mm0.01±10μm ± 0.008%×XZ710*80*188mm839*219*619m17kg
Opmac-90AL2Single1-40mm0.01±10μm ± 0.008%×XZ660*80*421mm754*214*689mm22kg
Edge40-100mm0.01
Opmac-140AL2Single1-45mm0.01±10μm ± 0.008%×XZ597*80*410mm754*214*689mm35kg
Edge45-140mm0.01
Opmac-250AL2Edge40-250mm0.01±10μm ± 0.008%×XZ1180*80*753.5mmcustomized48kg
Opmac-280AL2Edge40-280mm0.01±10μm ± 0.008%×XZ1385*80*753.5mmcustomized52kg
