| Categories | Electronic Locking System |
|---|---|
| Brand Name: | KERONG |
| Model Number: | KR-CU48B |
| Certification: | CE/FCC/ROSH |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | Agreeable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal |
| Supply Ability: | 50,000 per month |
| Delivery Time: | 5-15 days working time |
| Packaging Details: | The material of Package: K=K Reinforcement Carton;Carton:26PCS/CTN |
| Product name: | Remote Intelligent Cabinet Controller System |
| Communication: | TCP/IP LANs and WANs control |
| Weight: | 182g |
| Size: | 218mm *106mm |
| Power supply: | DC12 V~24 V |
| Capacity: | 20000 cards and 100000 offline memory |
| Power consumption: | Less than 100mA |
| Sample: | Accepted |
Remote Intelligent Cabinet Controller System
Product parameters
| Model | KR- CU48B |
| Brand | KERONG |
| Definition | Electronic rotary latch controller |
| Function | Receive commands to control lock and feedback status |
| Dimension | L200*W140*H15mm |
| Material | PCB (Printed Circuit Board) |
| The dimension of protecting the shell | L210*W150*H35mm |
| Microprocessor module | STM8S103K3T6 QFP32(P0.8mmBS7*7mm) |
| Connector model | RJ45, 8P8C |
| Working voltage | 12V~24V |
| Stand-by power consumption | 70mA(12V),40mA(24V) |
| Dynamic power consumption | 200mA~3000mA |
| Reaction time | Less than 1s |
| Working temperature | -25℃ ~ +65℃ |
| Working humidity | 5% ~ 95%RH |
| Certification | CE; ISO9001; RoHS |
| OEM | Accepted |
Product Features

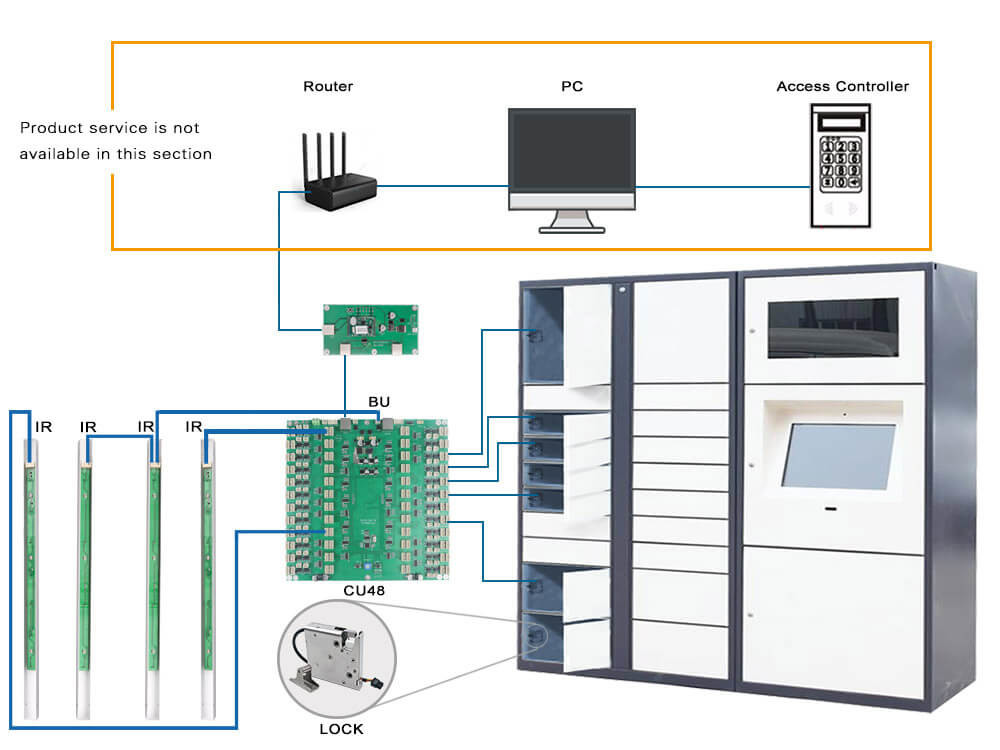

1, For network communication. Transfer TCP/IP commands (from PC) to 485 formats (to CU).
2, Open developed, you can design software completely as you want.
3, Supports two AC modes:TCP/IP and RS485.
4, Can co-work with a computer, pad, Raspberry Pi.
5, Working well on IOS, Windows, and Linux.
6, High-quality modules, working stably.
7, Working temperature: -25℃~65℃.
8, With protect box, anti-dust.

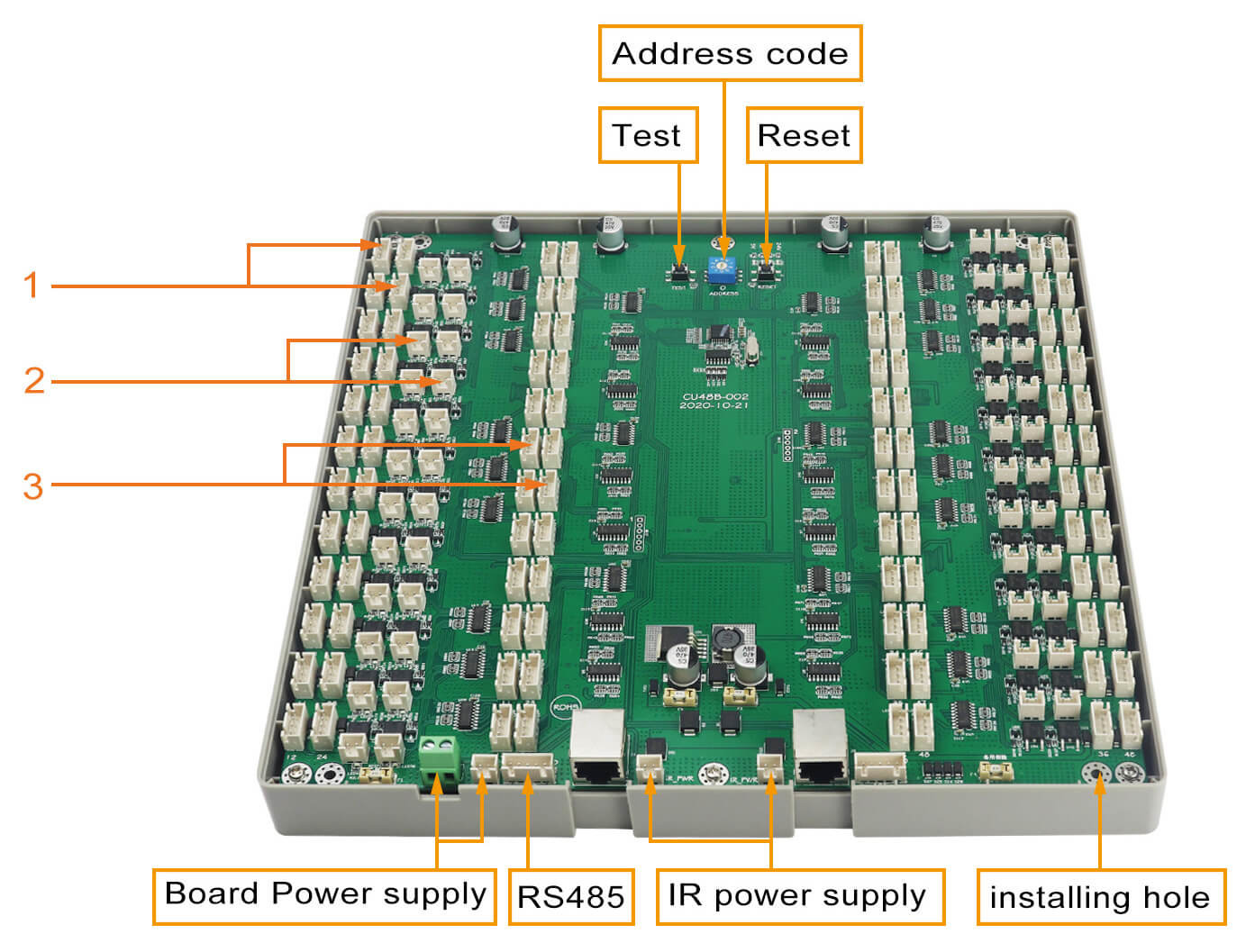

Product Details
1,c onnecting locks, supply power to locks and detect lock’s
condition (open/close);
2, connecting lock feedback light; light can be extended to every
single locker, to show whether the lock is closed or not. lock
open, light turns on, lock close, light turns off.
3, connecting IR and LED light; IR to check is the locker empty or
not; LED light to lighting the locker when lock is open.
Product Applications
Our products Locker Control Board are used in parcel cabinets, vending kiosk locker, post cabinets, express cabinets, etc.
