| Categories | Electronic Locking System |
|---|---|
| Brand Name: | KERONG |
| Model Number: | KR-SBU |
| Certification: | CE/FCC/ROSH |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | Agreeable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal |
| Supply Ability: | 50,000 per month |
| Delivery Time: | 5-15 days working time |
| Packaging Details: | The material of Package: K=K Reinforcement Carton;Carton:60PCS/CTN |
| Product name: | Intelligent cabinet control board |
| Communication: | TCP/IP LANs and WANs control |
| Weight: | 0.4-0.8kg |
| Color: | Green |
| Power supply: | DC12 V~24 V |
| Capacity: | 20000 cards and 100000 offline memory |
| Power consumption: | Less than 100mA |
| Type: | Intelligent cabinet access control system |
Electronic Locking System For Vending Machine Lock Control
Product Main Features
1, For network communication. Transfer TCP/IP commands (from PC) to 485 formats (to SCU).
2, Open developed, you can design software completely as you want.
3, Can co-work with the computer, pad, Raspberry Pi.
4, Works well on IOS, Windows, and Linux.
5, Suit for multiple applications: Automatic intelligent vending machine, parcel delivery locker, etc.
6, High-quality modules, working stably.
7, Special dustproof treatment: add protective cover.
Product parameters
| Model | KR- CU |
| Brand | KERONG |
| Function | Connect to the network to translate commands to the lock control panel |
| Material | PCB (Printed Circuit Board) |
| The material of protecting the shell | Eco-friendly material |
| Microprocessor module | STM8S103K3T6 QFP32(P0.8mmBS7*7mm) |
| Connector model | RJ45, 8P8C |
| Working voltage | 12V~24V |
| Stand-by power consumption | 80mA(12V),40mA(24V) |
| Dynamic power consumption | 100mA(12V),50mA(24V) |
| Reaction time | Less than 1s |
| Working humidity | 5% ~ 95%RH |
| Working temperature | -25℃ ~ +65℃ |
| Certification | CE; ISO9001; RoHS |
| OEM | Accepted |
Electronic Locking System For Vending Machine Lock Control
Product Details

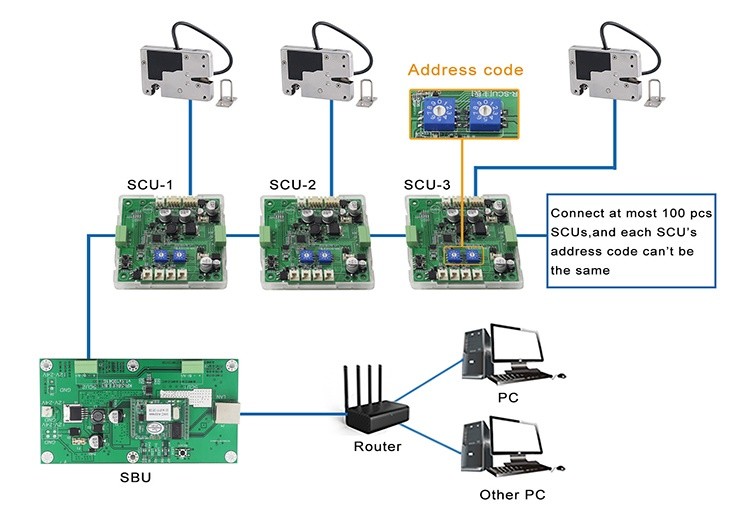

The command is sent from the PC and converted into RS485 protocol information through the router, and the SBU receives the information and transmits it to the SBU, which receives the command to control the opening and closing of the lock.
