250mw RGB Coupled Module Corning Light Diffusing DPSS Laser Kit

Categories DPSS Laser Kit
Brand Name: XINLAND
Model Number: RGB-250ST 250mw RGB Fiber Laser Module
Certification: CE
Place of Origin: Xi'an Shaanxi China
MOQ: 1pcs
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Dozen/Dozens per Day
Delivery Time: 7 days
Packaging Details: Each packed into static free plastic bag, bulk into export cartons.
Place of Origin:: Shaanxi, China
Model Number:: RGB-250ST 250mw RGB Fiber Laser Module
Brand Name:: XINLAND
Wavelength:: 445nm, 520nm, 635nm
Output Power:: 135mW(640nm), 75mW(520nm), 40mW(450nm)
Fiber Core:: 105μm,125μm, 170μm, 200μm
Numerical Aperture:: 0.22mm, 0.37mm, 0.53mm
Case Material:: Aluminum black anodized
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

250mw RGB Coupled Module Corning Light Diffusing DPSS Laser Kit


250mw RGB Coupled Module Corning Light Diffusing DPSS Laser Kit


Quick Details

Place of Origin:Shaanxi, China

Model Number:RGB-250ST 250mw RGB Fiber Laser Module

Brand Name:XINLAND

Wavelength:445nm, 520nm, 635nm

Output Power:135mW(640nm), 75mW(520nm), 40mW(450nm)

Fiber Core:105μm,125μm, 170μm, 200μm

Numerical Aperture:0.22mm, 0.37mm, 0.53mm

Case Material:Aluminum black anodized

Connector:FC, ST or SMA

CDRH Class:Class IIIb Laser, ROHS compatible

Lifetime:>6,000hrs


Supply Ability

Supply Ability:2000 Piece/Pieces per Month


Packaging & Delivery

Packaging Details:Each packed into static free plastic bag, bulk into export cartons.

Port:Xi'an Shaanxi, China

Lead Time :10-15 Days

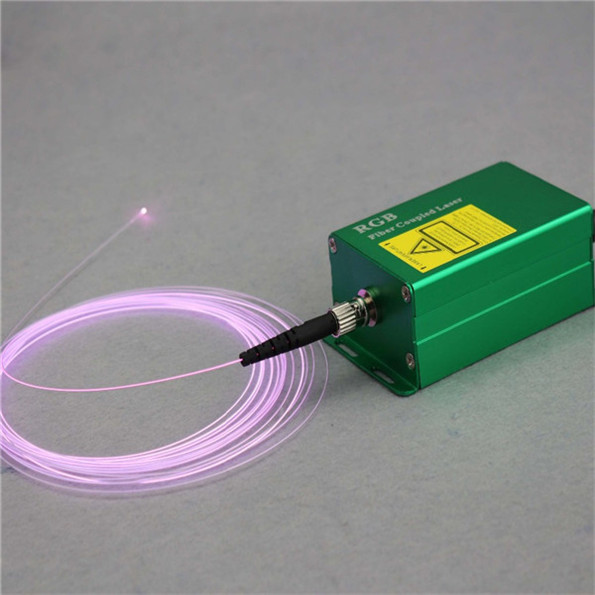

250mw RGB Fiber Coupled Laser Module for Corning Light Diffusing Fiber; RGB Fiber Coupled Laser Diode Module for Artworks, Lighting Decorations etc.


XINLAND RGB Fiber Coupled Laser Diode Module Introduction:

XINLAND could customize RGB fiber coupled laser module. The wavelength includes 445nm, 520nm, 635nm.

The diameters of fiber are 105μm, 125μm, 170μm, 200μm, multi mode fiber etc. It has SMA, FC or ST connector and different fiber lenght.

The LD driver or TEC temperature control could also be customized.


XINLAND RGB Fiber Coupled Laser Module Specifications:

ItemSpecification
Wavelength445nm, 520nm, 635nm
Output Power1mw-300mw
Fiber Core105μm,125μm, 170μm, 200μm
Numerical Aperture0.22mm, 0.37mm, 0.53mm
Fiber Length0.5-10m
OpticsGlass lens
Packaged TypeThrough Hole
Case MaterialAluminum black anodized
Beam SizeCustomized
ConnectorFC, ST or SMA
DimensionCustomized
Divergence0.6mrad
CDRH ClassClass IIIb Laser, ROHS compatible
Operating Temperature-10-50°C
Storage Temperature-40-80°C
Voltage Stability>98% (at 2.7-5.5VDC)
Temperature Stability>95% (at -10°C-50°C)
ProtectionStatic, Surge, Reverse Polarity Protected
Lifetime>6,000hrs

XINLAND RGB Fiber Coupled Laser Module Applications:

a.Laser scanning display

b. Measurement light source

c. Medical and cosmetic treatment

d. Bio technology

e. Bio-medical instrument

f. Semiconductor

g. Flow cytometry

h. DNA sequencing

i. Confocal microscopy

j. Medical imaging

k. Raman spectroscopy

l. Photo finishing

m. Particle counting

n. RGB illumination systems
