| Categories | Plastic Recycling Machine |
|---|---|
| Brand Name: | LIANDA |
| Model Number: | LDZL-500 |
| Certification: | CE,SGS,ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 1set |
| Payment Terms: | T/T, L/C, Western Union |
| Delivery Time: | 45 working days |
| Packaging Details: | Factory standard package or customized package |
| Voltage: | 380V 50HZ 3Phase or customized |
| Warranty: | 1 Year |
| Application: | Plastic Recycling |
| After-sales service provided: | Engineers available to service machinery overseas |
| Production capacity: | 300-1000kg/h |
| Material processed: | Plastic PP PE BOPP LDPE HDPE Film, Greenhouse/Agricultural film,PP Woven bag, plastic bag, PP Jumbo bag etc |
| Plastic type: | Plastic film/bag |
| Final product: | Clean Plastic Granules |
| Product name: | plastic recycling machine,waste pp pe bags washing granulating recycle line,PP Jumbo bag recycling line,PP Raffia bag pelletizing line |
| Keywords: | Plastic bag recycling machine line, waste plastic recycling machine, PP Jumbo bag recycling machine, PP/PE Film recycling equipement |
| Material: | Plastic PP PE BOPP LDPE HDPE Film, Greenhouse/Agricultural film,PP Woven bag, plastic bag, PP Jumbo bag etc |
| Motor: | Wannan Motor,Siemens or customized |
| Company Info. |
| LIANDA Machinery Co.,Ltd. |
| View Contact Details |
| Product List |
PP raffia bag granulating line,plastic pelletizing machine,PP
recycling machine,plastic recycling pellet machine

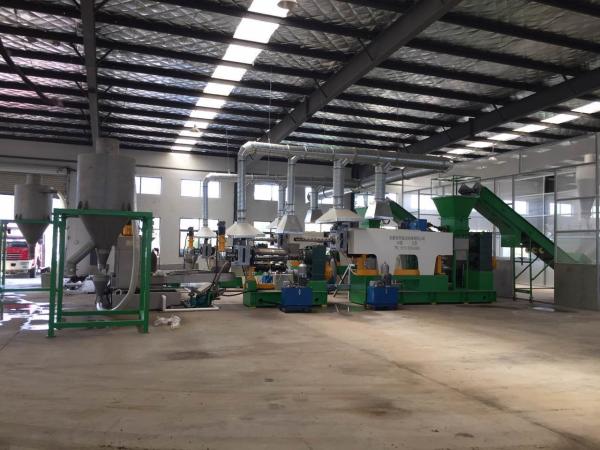

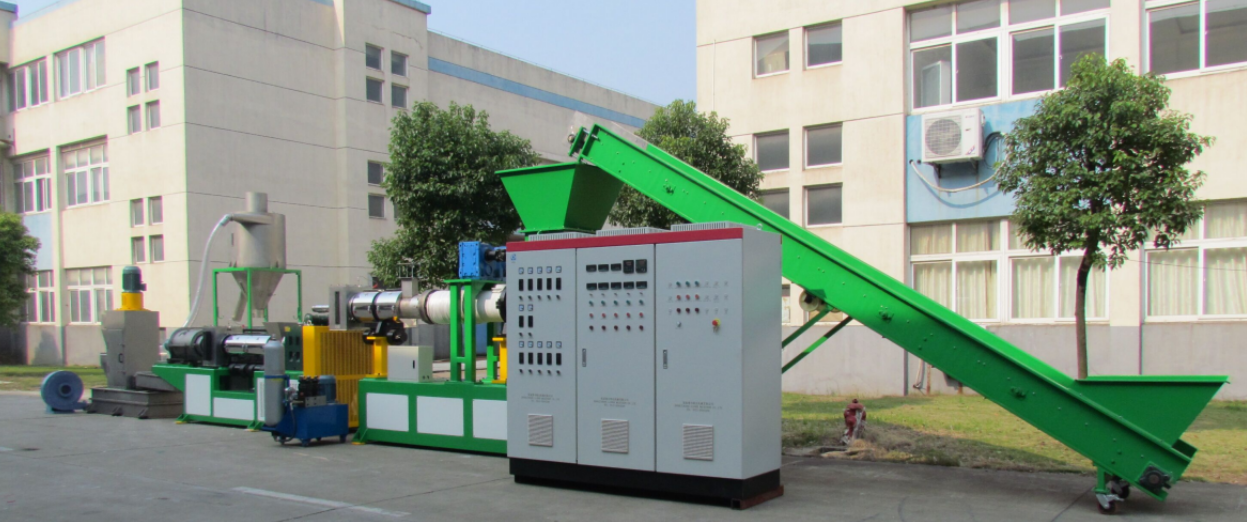

Raffia bag/PP Jumbo bag/ Non-woven bag Granulating Line
LIANDA Design
1. Applied for
| No | Machine Name | Quatity (set) |
| 1 | Belt conveyor | 1 |
| 2 | Forced feeder | 1 |
| 3 | Single Screw Extruder | 1 |
| 4 | Hydraulic screen changer (Double working position no need stop machine while change the screen ) | 1 |
| 5 | Water-ring pelletizing or Pull strands pelletizing system | 1 |
| 6 | Dewatering machine | 1 |
| 7 | Air conveying system + storage | 1 |
| 8 | Control system | 1 |
3.Working processing

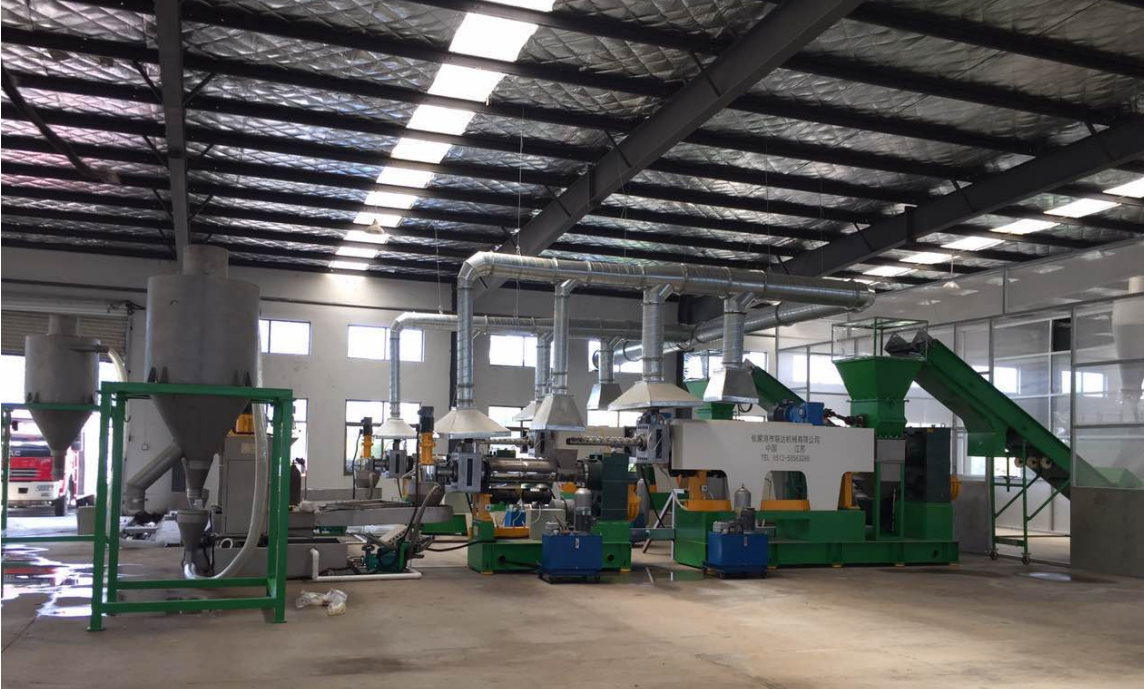

Plastic Film Granulating Line Capacity (300-1000kg/h) | ||

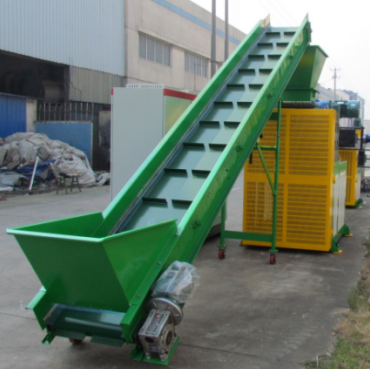

| 1 | Belt conveyor | 1unit |
| Belt conveyor will convey the material to Forded feeder. | ||
| Motor brand: Siemens Bade |
| |
| Frequency speed control | ||
| Install the anti-sliding partition bar on the surface of the adhesive tape | ||
| Adopt PVC Rubber belt | ||
Adjust the belt elasticity freely | ||
| Install the shift truckle on base, it is flexible & convenient | ||

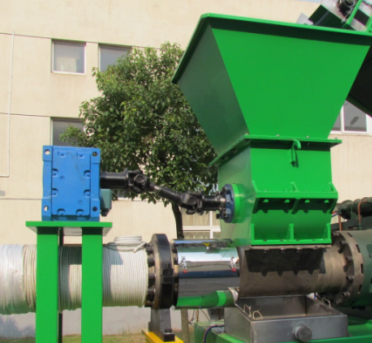

| 2 | Forced feeder | 1unit |
LIANDA patent design |
| |
Frequency speed control | ||

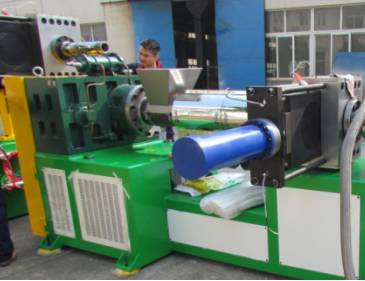

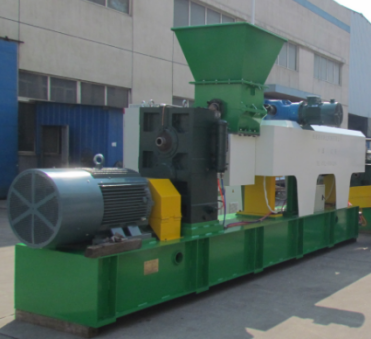

| 3 | Single Screw Extruder (First step ) | 1unit |
Screw material: adopt 38CrMoAlA, |
| |
| Special design on screw structure especially for washed film ( wet film ) | ||
| Feeding part adopt electrical magnetic heating | ||
| After feeding part adopt electrical heating | ||
| Adopt fan cooling | ||

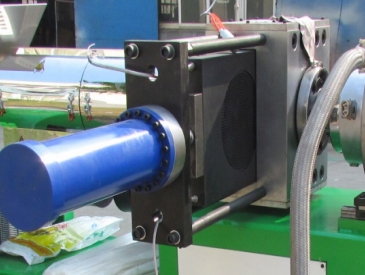

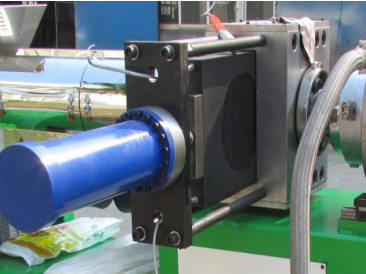

| 4 | Hydraulic screen changer system | 1set |
| Double working position |
| |
Hydraulic plate form screen changer | ||
| 4 | Single Screw Extruder (Second step) | 1unit |
Screw material: adopt 38CrMoAlA, |
| |
| Special design on screw structure especially for washed film ( wet film ) | ||
Adopt electrical heating | ||
| 5 | Hydraulic screen changer system | 1set |
| Double working position |
| |
| Hydraulic plate form screen changer | ||

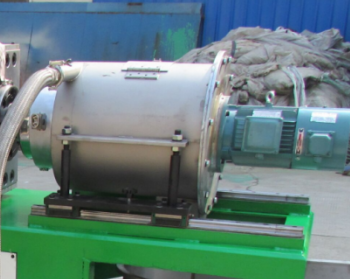

| 6 | Water-ring pelletizer system (2 types for choosen) | 1set |
| Vertical pelletizer system |
| |
| Horizontal pelletizer system |
| |

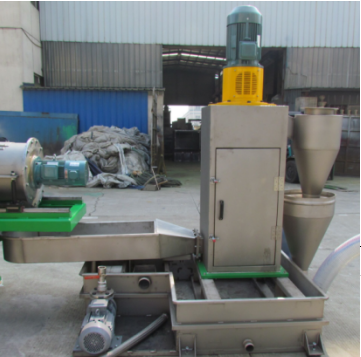

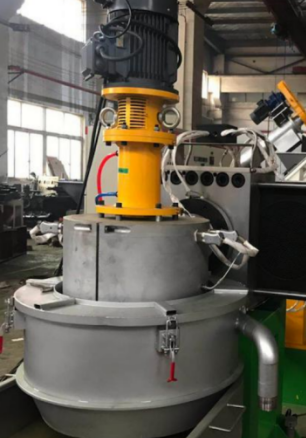

| 7 | Vertical dewatering machine | 1unit |
| To dry Pellets |
| |

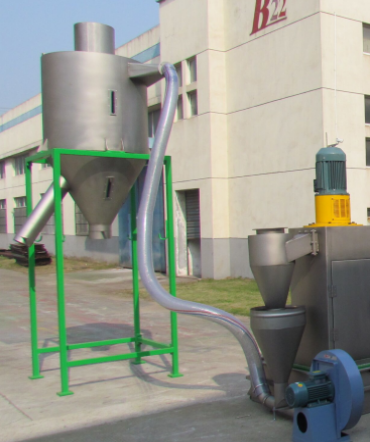

| 8 | Air conveying system + Storage | 1unit |
High pressure blower |
| |

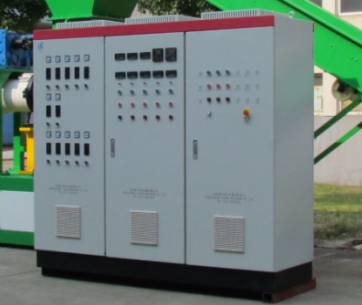

| 9 | Electrical cabinet | 1set |
Adopt independent operation panel for easy operation |
| |
| With cooling fan inside | ||
| Temperature contoller: Omron | ||
| Current protective of motor | ||
| Over temperature protective of motor | ||
| Over pressure protective of screw | ||
|
