| Categories | BTS Equipment |
|---|---|
| Brand Name: | HUAWEI |
| Model Number: | WBBPb3 |
| Place of Origin: | CHINA |
| MOQ: | 1pc |
| Price: | $100-$200 |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs/week |
| Delivery Time: | 3-7 work days |
| Packaging Details: | 1pc into a spare inner foam carton and pack with exteral wooden carton |
| Type: | BTS |
| Products status: | Stock |
| Product name: | HUAWEI WBBPb3 |
| Shipping term: | DHL,Fedex,UPS,EMS,AIR |
| Condition: | Brand New |
| Warranty: | Six month |
| Company Info. |
| Changsha Xingheda Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

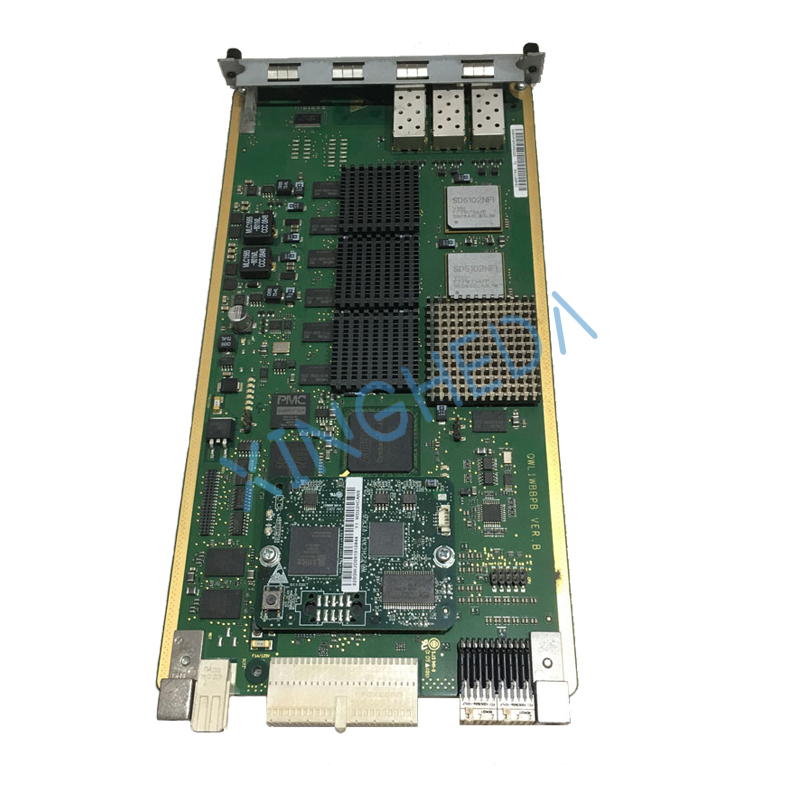

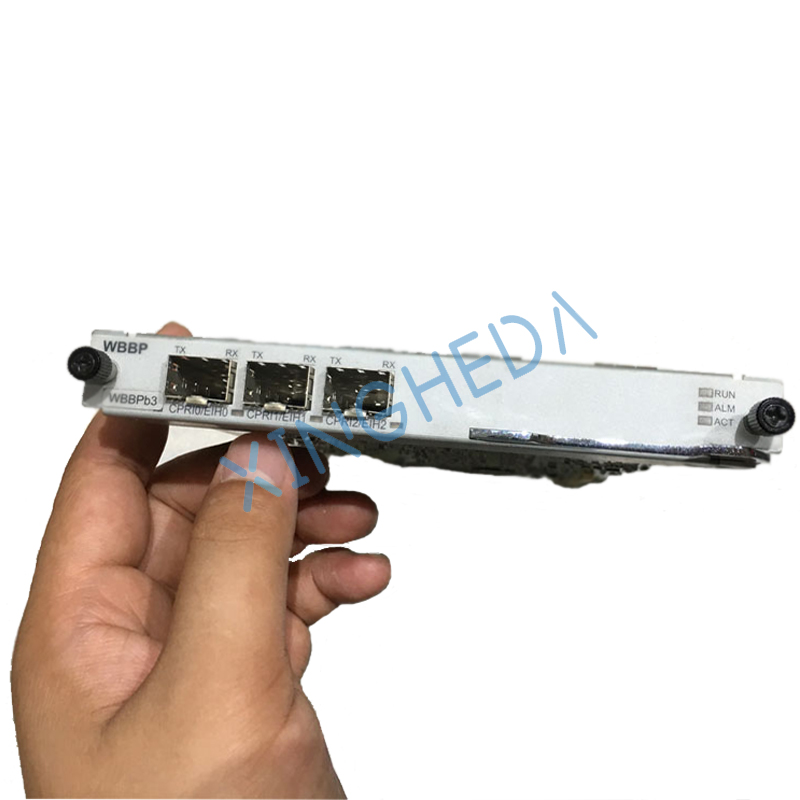

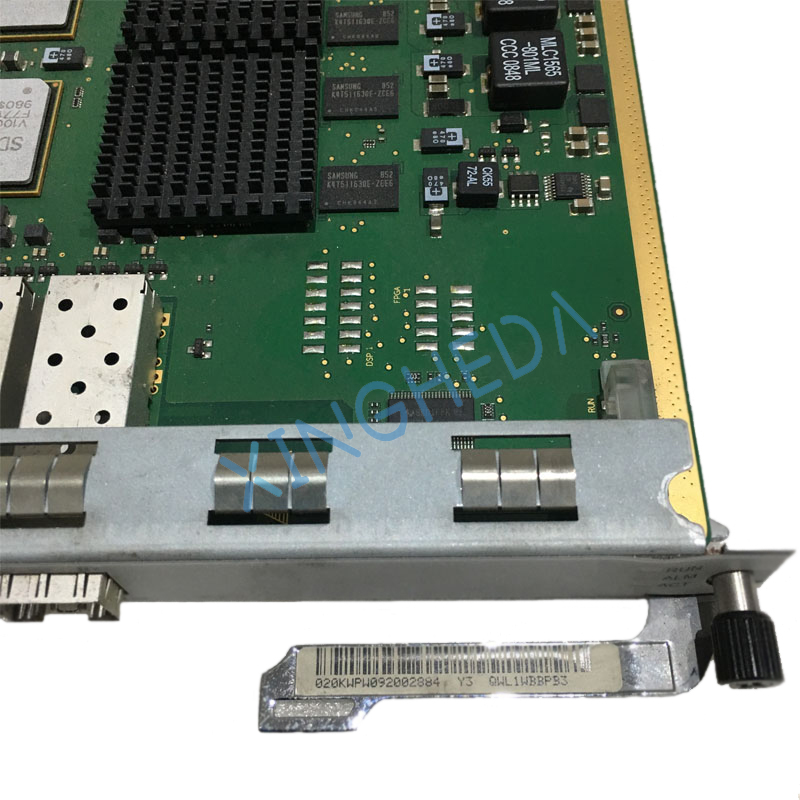

HUAWEI WBBPb3 QWL1WBBPB3 020KWP Processing Unit for Huawei WCDMA UMTS BBU3900
Technical specifications of the BTS3900:
| Item | Specification | ||
| Working band | Frequency band | Receiving band | Transmitting band |
| Band class 0 (800 MHz) | 824 MHz to 849 MHz | 869 MHz to 894 MHz | |
| Band class 15 (AWS) | 1710 MHz to 1755 MHz | 2110 MHz to 2155 MHz | |
| Band class 1 (1900 MHz) | 1850 MHz to 1910 MHz | 1930 MHz to 1990 MHz | |
| Band class 14 (US PCS 1.9 GHz) | 1850 MHz to 1915 MHz | 1930 MHz to 1995 MHz | |
| Band class 6 (2 GHz) | 1920 MHz to 1980 MHz | 2110 MHz to 2170 MHz | |
Transmitter and receiver | Frequency band | Receiver sensitivity | Max. transmit power |
| Band class 0 (800 MHz) | –130 dBm | 100 W | |
| Band class 15 (AWS) | –127 dBm | 80 W | |
| Band class 1 (1900 MHz) | –127 dBm | 80 W | |
| Band class 14 (US PCS 1.9 GHz) | –127 dBm | 80 W | |
| Band class 6 (2 GHz) | –127 dBm | 80 W | |
| Transmission ports | Max. configuration | Number of available ports | |
| One CMPT (4E1) and two UTRPs | One FE electrical port and one FE optical port | ||
| One CMPT (8E1) and two UTRPs | One FE electrical port (supporting a maximum of 24 E1/T1 links) | ||
| NOTE The CMPT (8E1) does not support the ATM transmission. The CMPT (8E1) does not support transmission over the optical port. | |||
Product Details:
If you are interested, please let us know the specific model. We
will provide the best service and the best price!
