Brand Name: | Chuangyin |
Model Number: | CY-QCT02-15 |
Certification: | KEMA/type test report |
Place of Origin: | China |
MOQ: | 1-100PCS |
Price: | Negotiable |
Payment Terms: | L/C, T/T |
Supply Ability: | 36000PCS/YEAR |
Delivery Time: | 5-10 workdays |
Packaging Details: | carton |
Rated Frequency: | 50Hz/60Hz |
Standard: | IEC/GB |
Application: | Measure Together With Other Kinds Of Instruments |
Installation Site: | Tight Spaces |
Feature: | Maximum Measuring Current Up To 130A |
Product name: | split core current transformer |
Company Info. |
Shenzhen Chuangyin Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
100-3000A 50/60Hz Clamp-on Current Transformer Current Transformer / Open type CY-QCT01
1.Product Introduction:
The "QCT02-15 Clamp-on Current Transformer" is designed for easy
installed in tight spaces and without the need for dismantling the
primary busbar or cables. The sensing head uses sliding push-fit
clamp structure, safety isolation to avoid the user to contact with
charged objects directly. It complies with CE standards and meets
300V CAT III safety class.
Feature:
1. Flexible and light weights, exquisite appearance
2. Easy &quick installation in tight spaces
3. Excellent linearity
4. Maximum measuring current up to 130A
Application:
1. Power quality monitoring
2. CT secondary current detection
3. Smart logger
4. Distributed measurement systems
General Data:
1. Operating temperature & humidity: 0 to 500C(32-1220F),580%RH(No
condensate)
2. Storage temperature & humidity: -10 to 600C(14-1400F), 580%RH(No
condensate)
3. Operating environment: Indoor, altitude up to 2000 meters
4. Standards Safety: IEC61010-1:2001,300V CAT III

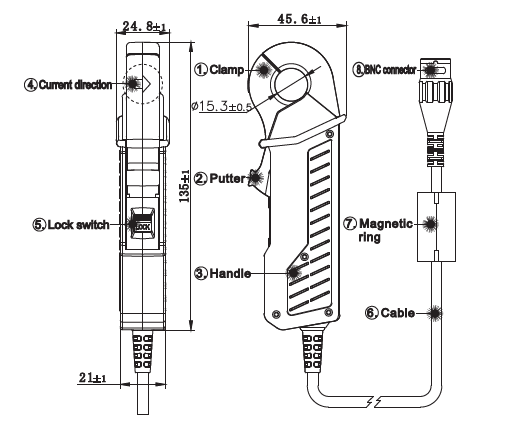

Dimension:

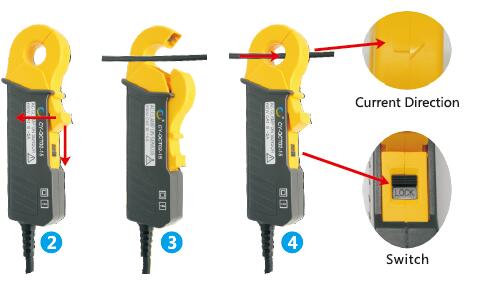

Usage Instruction:
1. Primary current direction should be as per the arrow in CT case.
2. Primary conductor temperature not more than 1000C
3. When primary conductor fully occupy the CT hole, then
performance of di/dt and response time are the best
![]() |
