Wireless - Single - Phase AC Split Core Current Transformer ON Energy Consumption Sensor

100-3000A 50/60Hz Clamp-on Current Transformer Current Transformer / Open type CY-QCT01

Feature:

1. Divisible top , high precision and little wastage
2. Nice appearance , small volume , little weight
and easy to install
3. Open and easy to install , working in hot-line without influence and tearing the generatrix

Application:

Used in the energy consumption monitoring of mobile communication cabinet,small volume and easy to install . it could measure electric current , power , energy and so on,containing communication port of Zigbee or RS-485 to connect to base station power monitoring system used in generalized measuring of strong maneuverability, system room or continued power system

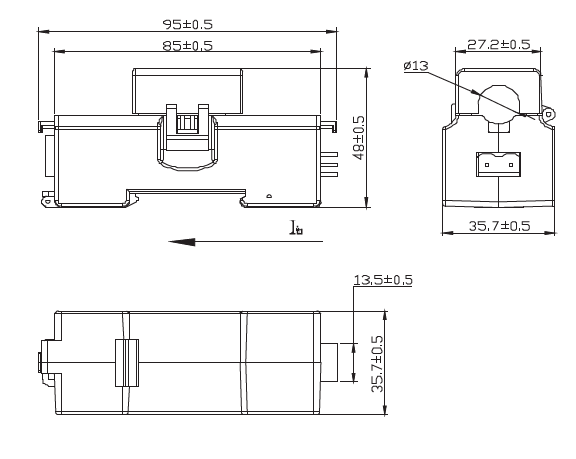

Dimension And Schematic:

Usage Instruction:

Usage Instruction:

Common Requirement:

1. Appearance demand : exact and clear brand, no obvious dirty thing
on the sensor and the standard , length, colour, position of lead
should conform to design
2. Storage :temperature of sensor is -40-850C, Humidity is less than
95%(250C) indoor.Besides, there is no harmful gas andother media
which will lead to rusty result.

Company information:

Shenzhen Chuangyin Co., Ltd has three manufacturing bases ,they are Jiangxi Chuangyin Co.,Ltd, Zhuhai Chuangyin Co.,Ltd and Joint-Venture Adex-Chuangyin Electric Co.,Ltd(Bangladesh); with 40,000 square meters of modern standard workshop and a number of first-class production line and test equipments, by many years’ experience for three dedicated engineering teams, the annual output of medium &low current transformer and voltage transformer is more than 36000 sets and CT, relay is more than 25 million pcs.

Since established in 2002,Chuanyin has been operating international management system and viewing quality as our life, the pass rate of products is always 99.9999%.we also have established a strict quality control system from material to whole process control. Factories and products have passed ISO9001:2015, ISO 14001：2015， ISO 45001:2018 UL, CQC, CE, KEMA CNAS certificates.

ISO 9001-2015 COMPLETA.pdf

Chuangyin’s product is well known with high accuracy, good stability, high efficiency, reasonable price and on-time delivery. With strong R&D strength and first-class product, good reputation has been gotten from domestic and oversea market. Customers are throughout more than 30 countries in the word. Chuangyin has become the one of largest and professional manufacturer of CT,PT and relay in China.
