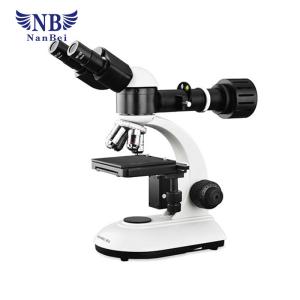

MIT100 Metallographic Microscope High Precision WF10×/18 Eyepiece

Categories Medical Laboratory Microscope
Model Number: MIT100
Price: USD1022-USD1806/set
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
MOQ: 1set
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
eyepiece: WF10×/18
Objective lens: Infinity field metallographic lens 5×/0.13 W.D=24.23mm
Observation tube: Hinged three eyepiece group, 30 ° tilt, interpupillary distance adjustment 48 ~ 75mm, splitting ratio 80:20
converter: Internal positioning of four-hole converter
Stage: Mechanical moving stage, an area of 200mm × 140 mm, moving range 76mm × 52mm
Filter: Blue (green, yellow, gray optional)
Camera interface: 1×/0.5× Camera interface
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

MIT100 Metallographic Microscope High Precision WF10×/18 Eyepiece


MIT100 Metallographic Microscope High Precision WF10×/18 Eyepiece


Brief introduction of metallographic microscope:

Widely used in industrial and mining enterprises, teaching, research and other fields ...


Features of NANBEI metallographic microscope:

1. Widely used in industrial and mining enterprises, teaching, research and other fields

2. Essential tools for inspection, analysis and research of electronic, metal materials, minerals, geology, precision instruments, etc.

3. Complete range of infinity long working distance metallographic lens



NameSpecificationsConfiguration
eyepieceWF10×/18
WF10×/18 (With 0.1mm ruler and cross division)
Objective lensInfinity field metallographic lens 5×/0.13W.D=24.23mm
Infinity field metallographic lens 10×/0.25W.D=18.48mm
Infinity field metallographic lens 20×/0.40W.D=8.35mm
Infinity field metallographic lens 40×/0.66W.D=3.90mm
Infinity field metallographic lens 50×/0.70(S)W.D=1.95mm
Infinity field metallographic lens 80×/0.80(S)W.D=0.85mm
Observation tubeHinged binoculars, 30 ° tilt, interpupillary distance adjustment 48 ~ 75mm
Hinged three eyepiece group, 30 ° tilt, interpupillary distance adjustment 48 ~ 75mm, splitting ratio 80:20
converterInternal positioning of four-hole converter
StageMechanical moving stage, an area of 200mm × 140 mm, moving range 76mm × 52mm
Focusing deviceCoarse coaxial focus, coarse stroke 26mm, fine-tune the grid value of 2μm, coarse tune with elastic adjustment
Lighting systemReflective Cola lighting system, 6V20W halogen lamp, brightness adjustable
FilterBlue (green, yellow, gray optional)
Camera interface1×/0.5× Camera interface

Note: "●" is required, "○" is optional
