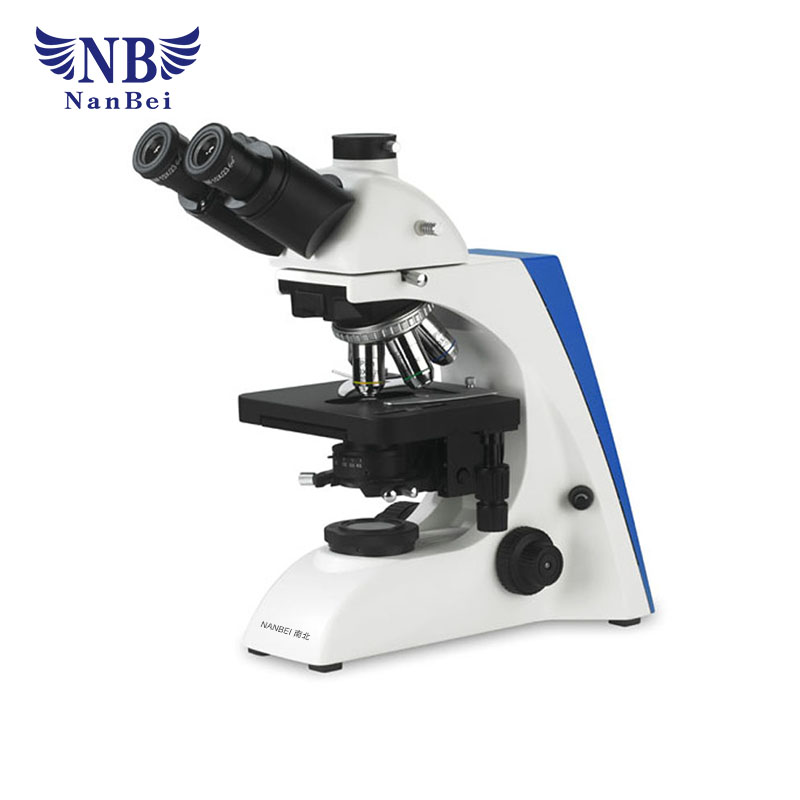

Trinocular Biological Microscope Optical Medical Laboratory BK6000

Categories Medical Laboratory Microscope
Model Number: BK6000
Price: USD1385-USD2769/set
Place of Origin: China
Brand Name: NANBEI
Certification: CE,ISO
MOQ: 1set
Delivery Time: 7-10days
Payment Terms: TT, LC, Paypal, Western Union, MoneyGram…
Optical system: Infinite Distortion Correction Optical System
Magnification range: 40 × 1600 ×
eyepiece: 10 × large field of view, high eye point flat field eyepiece, field of view Φ22mm (Φ23mm optional)
Infinity field Achromatic objective lens: 2.5×/4×/10×/20×(S)/40×(S)/60×(S)/100×(S,O)/100×(S,W)
converter: Inclined internal positioning five-hole converter
Focusing device: Coarse coaxial focus, coarse adjustment with elastic adjustment, and focus on the upper limit device
Stage: Wire drive stage (X-axis is not protruding), double-clip structure
Condenser: N.A.0.9 / 0.13 shake-out condenser with variable light bar
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Trinocular Biological Microscope Optical Medical Laboratory BK6000


Trinocular Biological Microscope Optical Medical Laboratory BK6000


Brief introduction of double glass reactor:

Applicable to hospital clinical laboratory, university teaching, professional laboratory.


Features of NANBEI chemical reactor:


1 Excellent infinity color correction optical system to ensure excellent resolution and clarity

2 Innovative integrated rack, providing excellent stability and operability

3 modular structure design, multi-functional combination, to ensure system versatility

4 large field of vision eyepiece, the number of field can reach 23mm, observe a more flat and comfortable

5 Six-hole turntable fluorescent device, providing a variety of fluorescent excitation block selection

6 Five-hole turntable phase contrast device, equipped with 10X / 20X / 100X infinity field phase contrast lens, can be phase contrast and bright field observation

7 X-axis does not highlight the wire transmission platform, to avoid the traditional platform security risks

8 two-shift three-way observation tube, 100% observation; 20% observation, while 80% photography



Optical systemInfinite Distortion Correction Optical System
Magnification range40 × 1600 ×
eyepiece10 × large field of view, high eye point flat field eyepiece, field of view Φ22mm (Φ23mm optional)
Infinity field Achromatic objective lens2.5×/4×/10×/20×(S)/40×(S)/60×(S)/100×(S,O)/100×(S,W)
Observation tubeHinged three-eye observation tube, 30 ° tilt, interpupillary distance adjustment 48mm ~ 76mm, three bin two conversion
converterInclined internal positioning five-hole converter
Focusing deviceCoarse coaxial focus, coarse adjustment with elastic adjustment, and focus on the upper limit device
StageWire drive stage (X-axis is not protruding), double-clip structure
CondenserN.A.0.9 / 0.13 shake-out condenser with variable light bar
Lighting system6V / 30W halogen lamp (wide voltage input: 100V ~ 240V), field light bar, center adjustable
Six-hole turntable100W digital mercury lamp power drop fluorescent device, can be arbitrarily selected B, G, Uv, V and other special filters
Fluorescent devicesLED fluorescent power emission device, can be arbitrarily selected B, G, Uv, V filter
Phase contrast deviceFive-hole turntable phase contrast device (10 × / 20 × / 40 × / 100 × infinity field phase contrast lens)
Independent phase contrast device
Dark field deviceDark field condenser (dry, wet)
PolarizerPolarizer, analyzer
Camera deviceConfiguration 320/500 megapixels and other digital camera system, for bright field camera
Configuration 310/510 megapixel CCD digital camera for professional picture camera
Camera interface1 × / 0.5 × C-Mount interface
Digital cameraCan be configured CANON, NIKON, OLYMPUS and other digital cameras
