| Categories | Aluminum Sheet Plate |
|---|---|
| Brand Name: | HUANYU |
| Model Number: | HYAP5052 |
| Place of Origin: | CHINA |
| MOQ: | 1 metric ton |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 190 metric tons per month |
| Delivery Time: | 21 DAYS |
| Packaging Details: | PLYWOOD CASE |
| Weldability: | Good |
| Corrosion Resistance: | Good |
| Thermal Conductivity: | Excellent |
| Fatigue Strength: | High |
| Application of 6063 Aluminum Plate: | aircraft fuel tanks, storm shutters, refrigerator liners and panels, etc. |
| Temperature of Forging And Hot Working: | 500 to 950 degrees Fahrenheit |
| Company Info. |
| Chongqing Huanyu Aluminum Material Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

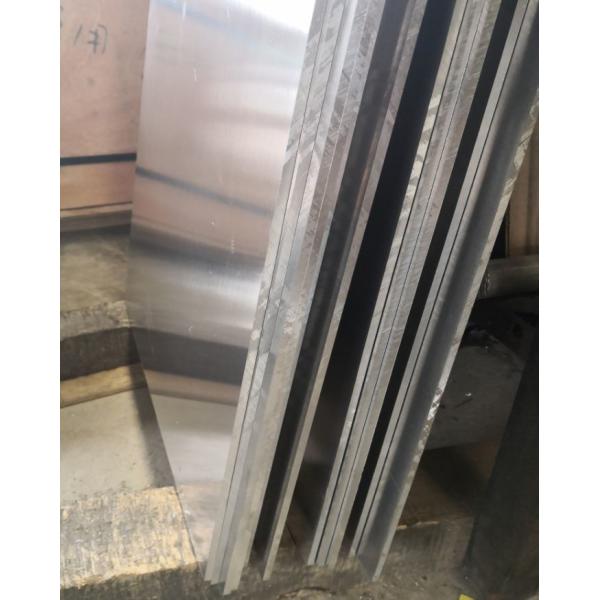

5052 Aluminum Plate With Excellent Thermal Conductivity Used For Aircraft Fuel Tanks
5052 Aluminum Plate is primarily alloyed with magnesium and chromium. It has good workability, medium static strength, high fatigue strength, good weldability, and very good corrosion resistance, especially in marine atmospheres. It also has the low density and excellent thermal conductivity, used for aircraft fuel tanks, storm shutters, refrigerator liners and panels, etc.
5052 aluminum plate can be joined by conventional welding methods. Inert gas-shielded tungsten or consumable electrode arc welding are the preferred joining methods.
Forging and hot working of 5052 are typically performed at temperature range of 500 to 950 degrees Fahrenheit.
| Chemical Composition Limits | |||||||||
| Weight% | Al | Cu | Si | Fe | Mn | Mg | Zn | Cr | Others |
| 5052 | Bal | 0.10 max | 0.25 max | 0.40 max | 0.10 max | 2.2 / 2.8 | 0.10 max | 0.15 / 0.35 max | 0.05 max (each) 0.15 (total) |
| Material | Temper | Tensile Strength (ksi) | Yield Strength (ksi) | Elongation % in 2" | min bend radius (90° cold forming) |
| 5052 Sheet | 5052-0 | 25-31 | 9.5 | 19 | 0 |
| 5052 Sheet | 5052-H32 | 31-38 | 23 | 7 | 1t |
| 5052 Sheet | 5052-H34 | 34-41 | 26 | 6 | 1 1/2 t |
|
