IP67 Push Button Switch Socket Connector , 22mm Push Button Switch Wiring Socket

Categories Push Button Switch Socket Connector
Brand Name: YUESHUN
Model Number: D22-15
Certification: CE RoHS
Place of Origin: Wenzhou, China
MOQ: Negotiable
Price: Negotiable
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Delivery Time: 3-7 work days
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Wire length: 15cm
Mounting Hole: 22mm
Application: PCB, Automotive, signal connector, FPC, Audio & Video
Type: Adapter, FPC connector, Push push type, RJ45, Other
Protection Level: IP67
Contact: 6 PIN
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

IP67 Push Button Switch Socket Connector , 22mm Push Button Switch Wiring Socket

22mm Push Button Switch Socket Connector with 15cm 6pin Cable Harness plug connectors


Notes

- It's method of use is very convenient, you can use it when you get it.

- If you don't want to weld the buttons, we strongly recommend this connector.


Product Specification

Product Name

22mm push button switch socket

Model Number

D22-15

Mounting Hole

22mm

Material

Plastic

Wire Length

15cm

Wire Number

6

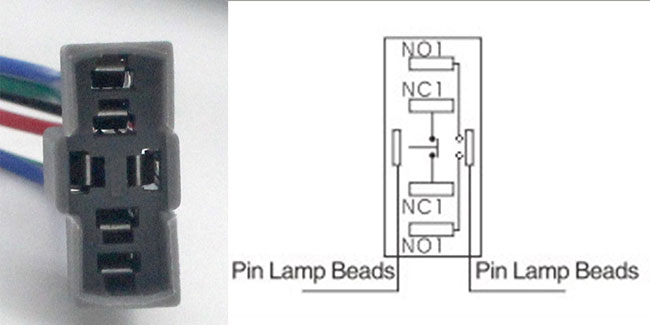

Wire connection guidance

Red

+

Black

-

Green 2

NC

Blue 2

N0

Wire specifications:

0.75mm²,Contact Current Max 5A

Range of Application:

Our factory model starts "JS22" push button switches.Such as JS22F-11E/S,JS22H-11E/S,JS22F-11/S and so on.

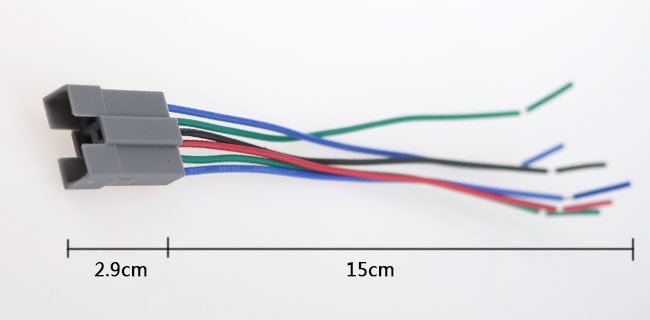

  • Size Diagram:

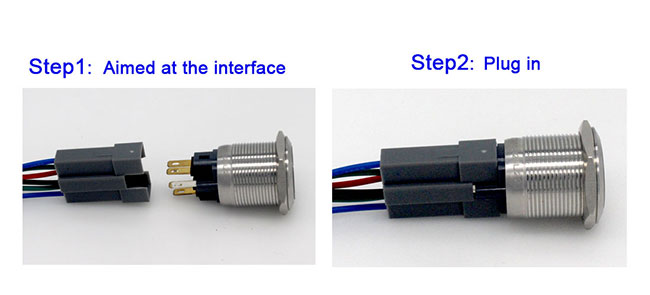

  • How To Use
