Stainless Steel Push Button Switch LED Illuminated , 1NO LED Metal Push Button Switch

Categories Push Button Switch LED Illuminated
Brand Name: YUESHUN
Model Number: JS16F-10E/S
Certification: CE RoHS
Place of Origin: Wenzhou, China
MOQ: Negotiable
Price: Negotiable
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Delivery Time: 3-7 work days
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Led Type: Ring Symbol
LED life: More than 40,000 hours
Operation type: Momentary Latching
Operating Temperature: -20℃~+55℃
Head shape: Flat or High head
Warranty Period: Two years
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Stainless Steel Push Button Switch LED Illuminated , 1NO LED Metal Push Button Switch

16mm Stainless steel Push Button Switch LED Illuminated 1NO Momentary Ring led type push button light switch


Product Description

- Stainless steel and waterproof pushbutton switches are the best choice for outdoor machinery, various additional electric machinery. The pushbutton is outstanding in materials and long life.
- The product is made of stainless steel, which is durable and can be used in outdoor environment; Other materials such as Nickel Plated Brass, Gold plated brass, Zn-Al Alloy.
- The color may have different as the difference display, pls understand.


Product Attribute


Mounting hole
Diameter
16 mmMounting Panel
Thickness

1-6mm

Max.Switch Rating500mA / 24V DCProtection LevelIP67
Operation type

Momentary

Contact
Configuration
1NO
Body Material

Stainless steel

Operation DistanceAbout 0.5 mm
LEDLED ColorRed,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
Led Voltage3V 6V 12V 24V are available.
LED TypeRing Symbol

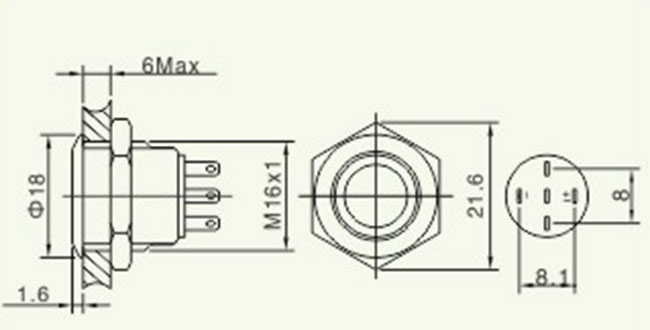

Size
