Waterproof Miniature Illuminated Push Button Switch High Head Ring LED Type

Categories Push Button Switch LED Illuminated
Brand Name: YUESHUN
Model Number: LA16F-11D
Certification: CE RoHS
Place of Origin: Wenzhou, China
MOQ: Negotiable
Price: Negotiable
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Delivery Time: 3-7 work days
Packaging Details: The product is packed in foam box to prevent damage during transportation.
LED color: Red,Green,Yellow,Orange,Blue,White,Purple
Led Voltage: 3V 6V 12V 24V 36V 110V 220V
Protection Level: IP67
Mechanical life: More than1,000,000 cycles
Operation type: Momentary Latching
Operating Temperature: ‘-20℃~+55℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Waterproof Miniature Illuminated Push Button Switch High Head Ring LED Type

high head Ring led type Push Button Switch LED Illuminated IP67 Waterproof mini momentary push button switch


Product Description

- Easy to Install, there's even a rubber gasket to keep water out of the enclosure. But they can not be submerged in the water.
- Enclosure Material: Stainless Steel;High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
- You can find our push button switches in many device such as PC, Car, Boart, Elevator, Bank machine, etc.. They are widely used around us. Most often Quentacy latching switches are used for various additional electric equipment, inside & outside the car(Such as critical lights, chassis lamp, fog lamps, dome light).

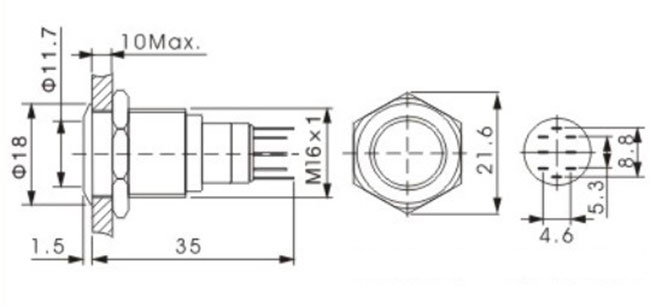

Product Attribute


Mounting hole
Diameter
16 mmMounting Panel
Thickness

1-mm

Max.Switch Rating5A / 250VA CProtection LevelIP67
Operation type

Momentary

Latching

Contact
Configuration

1NO + 1NC

2NO + 2NC

Body Material

Stainless steel

Aluminum

Operation DistanceAbout 2.8 mm
LEDLED ColorRed,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
Led Voltage3V 6V 12V 24V 36V 110V 220V are available.
LED TypeDot Symbol
