Metal Roof Tile Ridge Cap Sheet Roll Forming Machine With Hydraulic Punching Stamp

Categories Roll forming machine
Model Number: Tile Forming Machine
Certification: CE,ISO 9001
Place of Origin: china
MOQ: 1set
Payment Terms: D/P, Western Union, D/A, L/C, MoneyGram
Supply Ability: 30 sets/month
Delivery Time: 10-15 days after received advance payment
Packaging Details: plywood case strong
Brand Name: WADJAY
Power:: 3kw
Condition: New
Dimension(L*W*H):: About 6.4*0.6*1.1 m
Weight:: about 3.5T
Production Capacity:: 0-12 m/min
Warranty:: 1 year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Metal Roof Tile Ridge Cap Sheet Roll Forming Machine With Hydraulic Punching Stamp

Product Description
Name:Metal Roof Tile Ridge Cap Sheet Roll Forming Machine
Type:Tile Forming Machine
Tile Type:Colored Steel
Use:ROOF
Voltage:380V 50Hz 3phases
Feature:high production speed
Control System:fully automatic
Operation Language:Chinese/English/Spanish
Suitable Material:Q235 or similar
Raw Material:PPGI/Galvanized Sheet
Color of Machine:blue, gray, or your required color

Working Flow

Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand


Product Description

Name

Metal Roof Tile Ridge Cap Sheet Roll Forming Machine With Hydraulic Punching Stamp

Suitable Material

Colored or galvanized steel coil, HRB60 or equivalent

Thickness Range

0.3-0.8 mm

Coil Width Range

According to your actual drawing.

Electric Power

380V, 50 Hz, 3 phase

or according to your need.

Dimension

About 6.4*0.6*1.1m(L*W*H), as per the drawing

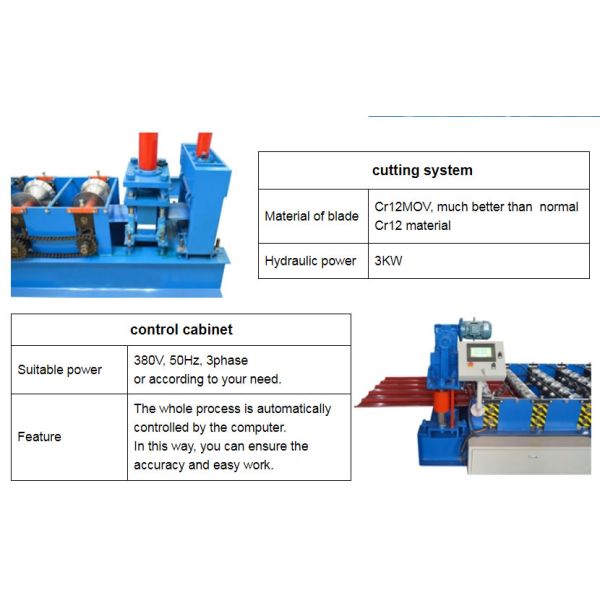

Cutting

Automatically stop and cutting when it comes to the set length.

Length of the Sheet

You can set the length according to your need.

It is controlled by PLC

length accuracy: ±1mm.

Quality Metal Roof Tile Ridge Cap Sheet Roll Forming Machine With Hydraulic Punching Stamp for sale
