Metal Roof Ridge Cap Roll Forming Machine Sidewall 16mm Connect Bar 25mm

Categories Ridge Cap Roll Forming Machine
Brand Name: SHITONG
Model Number: 400
Certification: CE/ISO9001
Place of Origin: CHINA
MOQ: 1 SET
Payment Terms: L/C, T/T
Supply Ability: 30 SETS PER MONTH
Delivery Time: 30 DAYS
Packaging Details: THE MAIN MACHINE IS NUDE
Tile type: Colored Steel
name: Ridge Cap Roll Forming Machine
Raw material: ppgi or galvanized sheet coil
Cutting blade material: cr12 with quenched treatment
Plc: mitsubishi/delixi/siemens
Shaft material: High Grade No.45 Forged
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Metal Roof Ridge Cap Roll Forming Machine Sidewall 16mm Connect Bar 25mm

Metal Roof Ridge Cap Roll Forming Machine Roof Ridge Tiles Building Materials Machinery

Quick Details

Warranty: 18 month

Type: Tile Forming Machine

Production Capacity: 10-15m/min

Certification: CE/ISO9001

Applicable Industries: Building Material Shops, Manufacturing Plant, Home Use, Construction works

Tile Type: Colored Steel

Voltage: 380V 50Hz 3phases or as your request

Dimension(L*W*H): 6500mm*900mm*1200mm

Weight: 3500KG

Name of Roll Forming Machine: Roof Ridge Cap Roll Forming Machine Tiles Building Materials Machinery

Color of Roll Forming Machine: Blue, Grey or as your request

Sidewall: 16mm

Pre-cutting system: Hydraulic cutting with hand cutting

Connect bar: 25mm, galvanized

Transmission model: Sprocket&Chain

Cutting: Double Oil Cylinder Hydraulic Cutting

Decoiler: Manual decoiler or Hydraulic decoiler

Driving method: Electrical motor


MAIN PAPAMETER


Suitable raw materialPPGI/PPGL/GI/GL Steel Coils
Thickness of coil sheet0.3-0.8mm
Feeding Coil width500mm
Effective width312mm
Under frame300H-beam
Diameter of Soild shaft

70mm, high grade 45# steel, finish turning, cylindrical grinding,

with keyway

Roller

High grade 45# steel, processed by CNC lathe, Quenched

and tempered treatment, hard chrome coated 0.05-0.07mm

Thickness of middle plateGuide pillar memorial archway
Forming stations16
Drive typeBy chain(1.0 inch) link bearing model 6210
Power of main motor5.5kw with Cycloidal reducer, Lichao, Shanghai
Power of pump station3kw, Lichao, Shanghai
Forming speedAbout 15-20m/min
Hydraulic cuttingControlled by PLC
PLCDELTA, TAIWAN / Mitsubishi, Japan
Material of cutting bladeCr12Mov, quenching 58-62℃
Frequency converter

It has the advantage of slowing down before cutting,

to ensure the length accuracy(±1mm, far better than

industrial standard ±3mm).

SwitchCHNT
TransducerSAJ

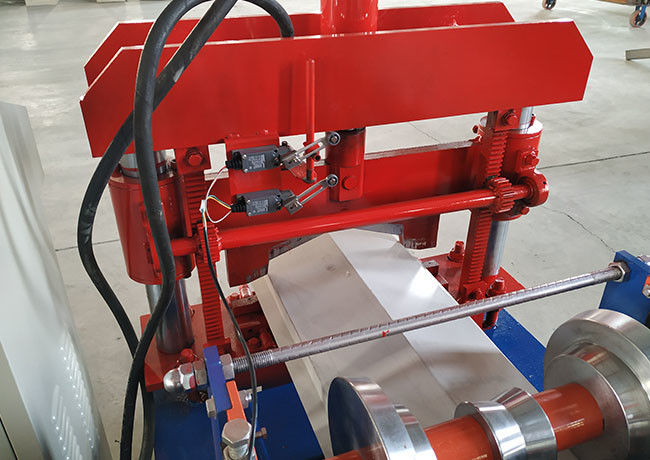

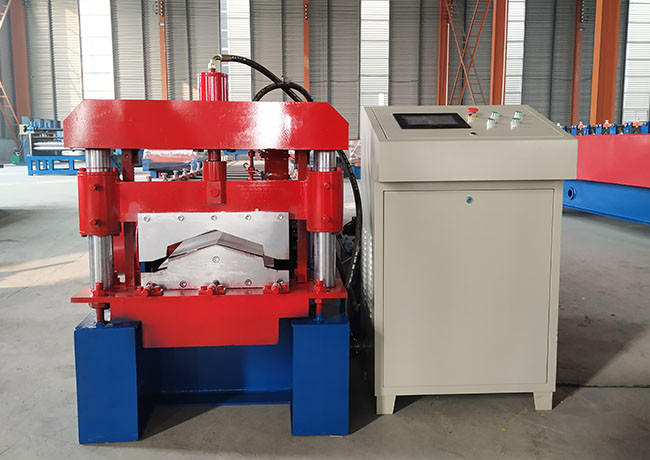

Machine pictures
