Computer Controlled Windows Method Electronic Servo Automatic Tester Universal Testing Machine

Categories Universal Testing Machines
Brand Name: KEJIAN
Model Number: KJ-1066A
Certification: IOS,CE
Place of Origin: Dongguan,China
MOQ: 1 Unit
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time: 7 Work Days
Packaging Details: Export Wooden Box
Model: KJ-1066A
Range of speed: 0.1-500mm/min
Motor: Japan Panasonic Servo Motor
Capacity choice: 2 Ton
Effective testing space: 1200mm MAX
Accuracy: ±0.5%
Operation method: Windows 7 system
Force protection: system setting
Weight: 500
Power: 220V/50Hz
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

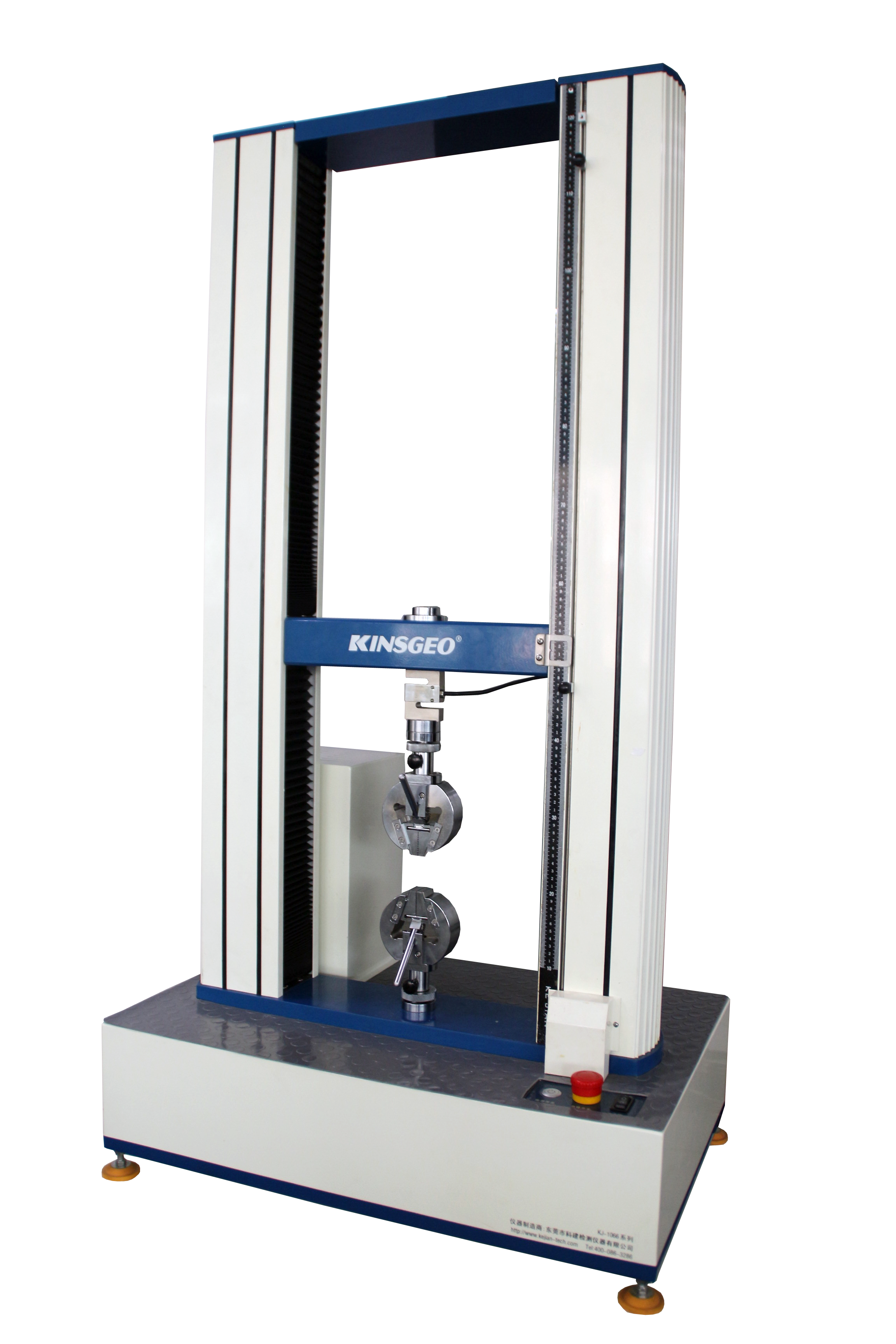

Computer Controlled Windows Method Electronic Servo Automatic Tester Universal Testing Machine

Computer Controlled Electronic Servo Automatic Universal Testing Machine

Uses:

This machine also known as a materials testing machine , is applicable to testing tensile, compression,bending,peel, shearing force, peeling force, modulus of elasticity,and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable,springs,leather,package,tape,

film,solar cell,ect.


Character:

1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.


2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 0.5%.

3. That using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

Accessories:

1.Suitable Grips that meet customer sample need.

2.Software for test control,data acquisition and report.

3.English operation teach video.

4.Tabel,computer is selectable.

5.Extensometer as customer need.

Software functions:

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7.With many units of measurement, the metric system and british system can switch;

8.Have automatic calibration function;

9.Have user-defined test method function

10.Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;

Specification:

Design StandardsGB16491-2008,HGT 3844-2008 QBT 11130-1991,GB 13022-1991,HGT 3849-2008,GB 6349-1986 GB/T 1040.2-2006 2411,ISO 4587,ISO/TS 11405,ISO 527,ISO 178,ASTM E4,BS 1610,DIN 51221,ISO 7500,EN 10002,ASTM D628,ASTM D638,ASTM D412
ModelKJ-1066A
Range of speed0.1-500mm/min
MotorJapan Panasonic Servo Motor
Capacity choice2T
Resolution1/250,000
Effective testing space400mm MAX
Accuracy±0.5%
Operation methodWindows 7 system
Optional accessoriescustomized clamps by appointed, force sensors, , printer, and operation manual
Weight500KG
Dimention(W×D×H)80×50×150cm
Power1PH, AC220V, 50/60Hz
Stroke protectionUpper and lower protection, prevent over preset
Force protectionsystem setting
Emergency stop deviceHandling emergencies
ConnectorRS232 Connector,USB Convertor
