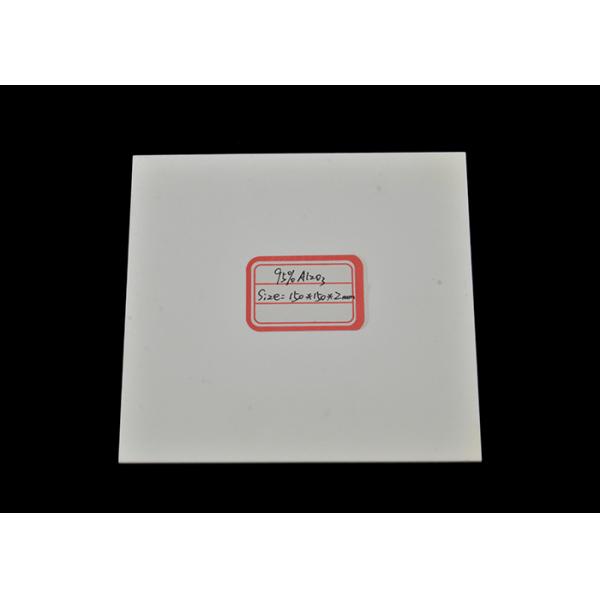

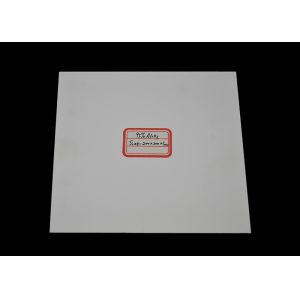

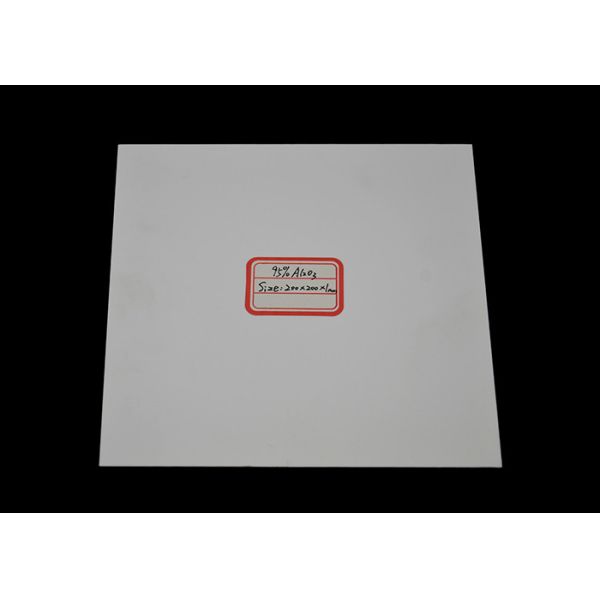

Industrial Heat Resistant 96% Aluminum Oxide Ceramic , Alumina Ceramic Plate

Industrial Heat Resistant 96% Aluminum Oxide Ceramic , Alumina Ceramic Plate

1. Description

3. Specification

Item	Test Condition	Unit Symbol	95% Alumina ceramics	99% Alumina ceramics	99.7% Alumina ceramics
The main chemical ingredient			Al2O3	Al2O3	Al2O3
Bulk Density		g/cm3	3.6	3.89	3.96
Maximum Use Temperature			1450°C	1600°C	1650°C
Water absorption		%	0	0	0
ROHS Hardness			≥85	≥89	≥89
Flexural strength	20° C	MPa (psi x 103)	358 (52)	550	550
Compressive Strength	20° C	MPa (psi x 103)	2068 (300)	2600(377)	2600(377)
Fracture Toughness	K(I c)	Mpa m1/2	4-5	5.6	6
Coefficient of thermal expansion	25-1000° C	1X 10-6/°C	7.6	7.9	8.2
Coefficient of thermal conductivity	20° C	W/m °K	16	30.0	30.4
Thermal Shock Resistance	Tc	°C	250	200	200
Dielectricity constant	1MHz.25°C		9	9.7	9.7
Dielectric strength		ac-kV/mm (ac V/mil)	8.3 (210)	8.7 (220)	8.7 (220)
Volume Resistivity	100°C	ohm-cm	> 1013	> 1014	> 1014

Yixing City Kam Tai Refractories Co.,ltd is located in Yixing, the Pottery capital of China. Our company is founded in 2006, it is a professional refractory and ceramic company which cover research, production, sales and after-sales service. Since establishment, we adhere to principle of “Technological Innovation, Never Stop”, continuously improve R&D and production process and equipment. Moreover, we cooperate with famous university such like Liaoning University of Science and Technology, Beijing University of Science and Technology.
Main Products
We mainly manufacture industry furnace refractory material such as Sic PLATE,Setter plate, Push plate, Pillar,Sagger, Technical Ceramic, Furnace material and so on. Our product is widely used to sinter Magnetic Material, Electronic Ceramic, Daily Ceramic, Powder Metallurgy, Rare Earth Battery Material and so on. Our sandwich setter plate, electronic ceramic used sagger, Lithium battery cathode material sintering sagger are very good , and they have been leader products in our field .
Company Vision

Since our establishment, we insist on “No best , Just Better” , aimed to be the top Supplier of Refractory material and Technical Ceramic in the world.
