RJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550g

Categories LED DMX Decoder
Brand Name: vyeofar
Model Number: LT-903-DIP
Certification: CE/Rohs
Place of Origin: China
MOQ: 10
Price: negotiable
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000/month
Packaging Details: White box
Material: Iron
Color: Black
Feature: 3 Channel DMX decoder
output: 8A*3CH DMX CV decoder
Voltage: DC 12-24V
Power: 576W
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

RJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550g

Led DMX Decoder Constant Voltage DC12V-24V 8A*3CH RJ45/XLR 3 channel output


LT-903-DIP
Input signalDMX512/RDM
Input voltageDC12V~DC24V
Max load current6A x 3CH Max. 24A
Max output power(0~96W...192W) x3CH Max. 576W
DMX512 socket3-pin XLR, RJ45
Working temperature-30℃~65℃

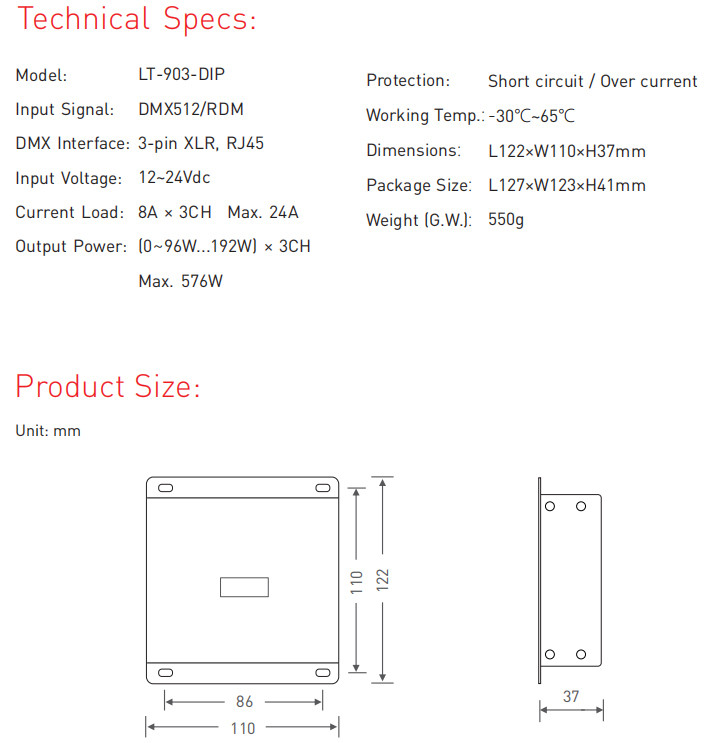

DimensionL122×W110×H37(mm)
Package SizeL127×W123×H41mm
Weight (G.W)550g

Pruduct Introduction:

1. Designed with 3 channels output, and Max. 8A current per channel, up to 576W output power

2. Easy operation with digital display and the touch buttons

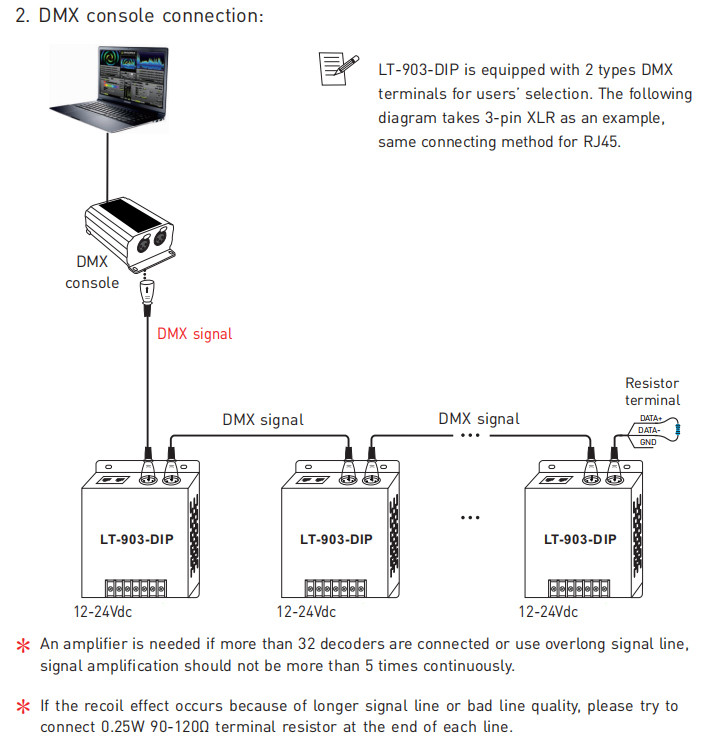

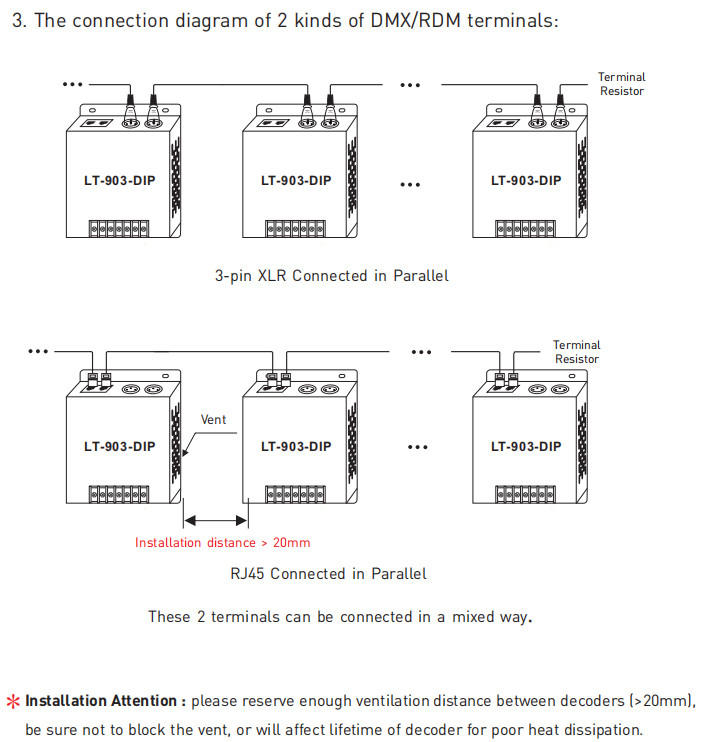

3. Support 2 kinds of DMX ports:3-pin XLR, RJ45

4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.

5. With shortcut protection and over load protection, as well as warniing function when fault.

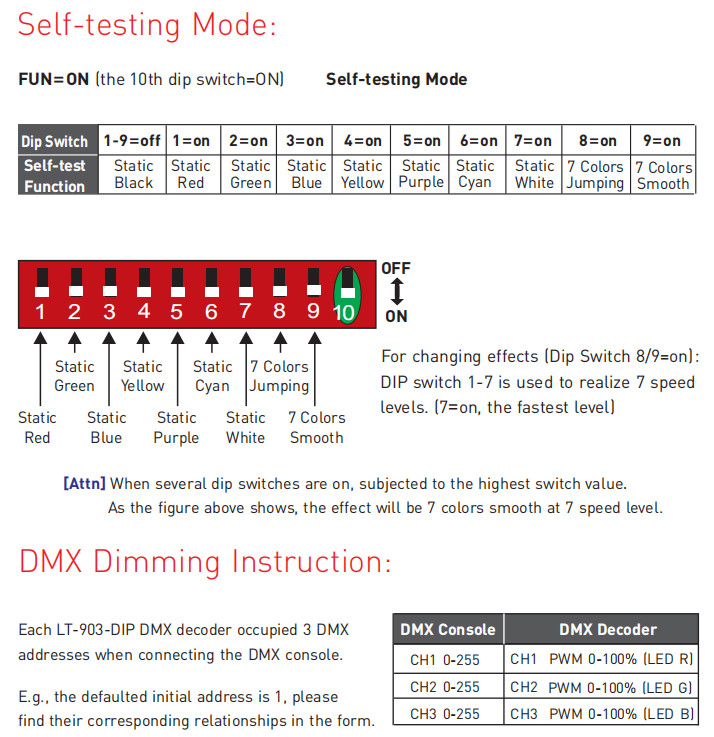

6. With fast self - testing function.

7. High / Low PWM frequency for optional

8. 16bit(65536 levels)/8bit(256 levels) grey level optional
